26
Requirements
The following requirement must be fulfilled for this work step:
• The hydraulic system is depressurized both on the tractor and implement side.
Required components, tools and materials
For this work step, the following components, tools and materials are required:
• Coupling connector or coupling sleeve (for initial operation)

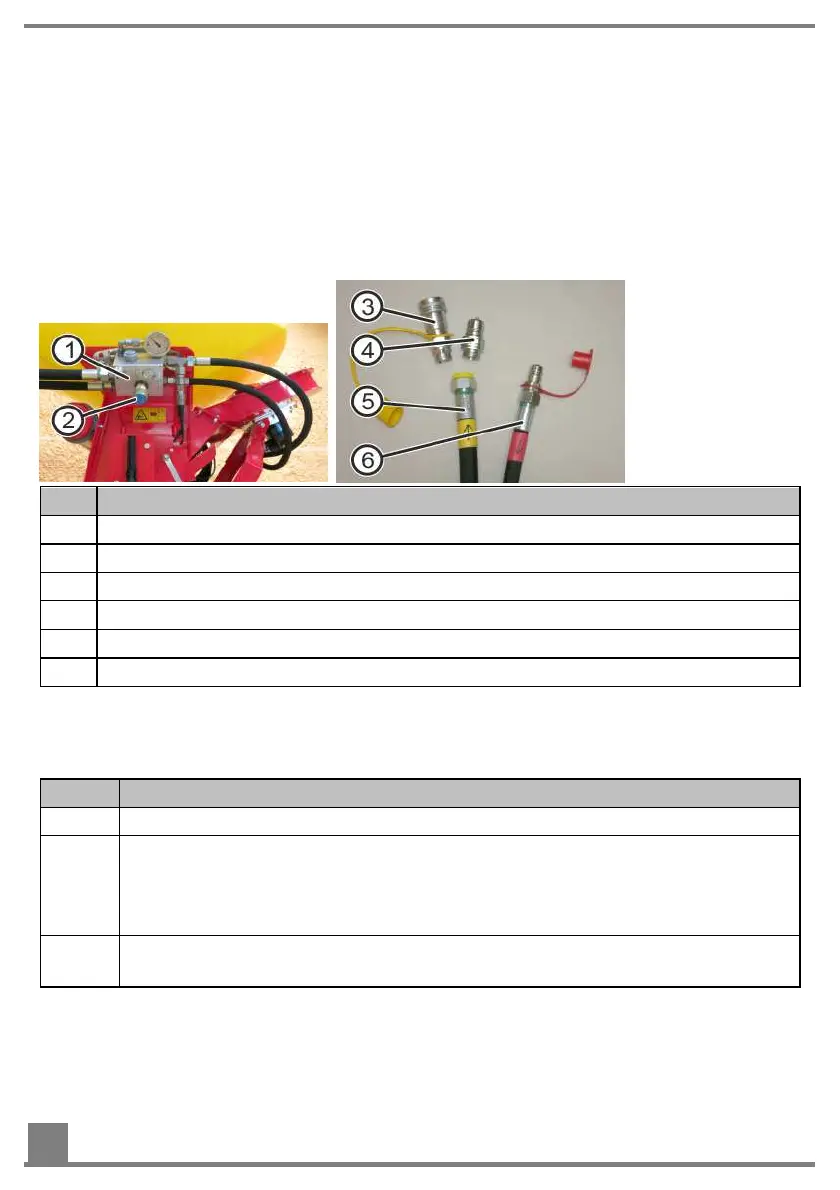

Overview
No. Designation
1 Hydraulic block
2 Flow control valve
3 Coupling sleeve (alternative)
4 Coupling connector
5 Return line
6 Pressure line
Procedure
This is how to connect the hydraulic fan:
Step Description
1 Completely close the flow control valve (2) on the hydraulic block (1).
2 Connect the return line (5) (marked in yellow, BG4) without reduction to the
return flow connection of the tractor hydraulic system.
For initial operation: Remove the plastic plug on the return line and connect
the coupling plug (4) or the coupling sleeve (3) with the return line.
3 Connect the pressure line (6) (marked in red, BG3) with a pressure con-
nection of the tractor hydraulic system.
