Arcam AVR400 Handbook

E-22
4
Remote control receiver. is is positioned behind
the display window, above the MENU button on the
front panel. Ensure the receiver is in a clear line of
sight from the remote control for operation. If this is
not possible, use a separate sensor connected to the
Z1 IR input on the rear panel.

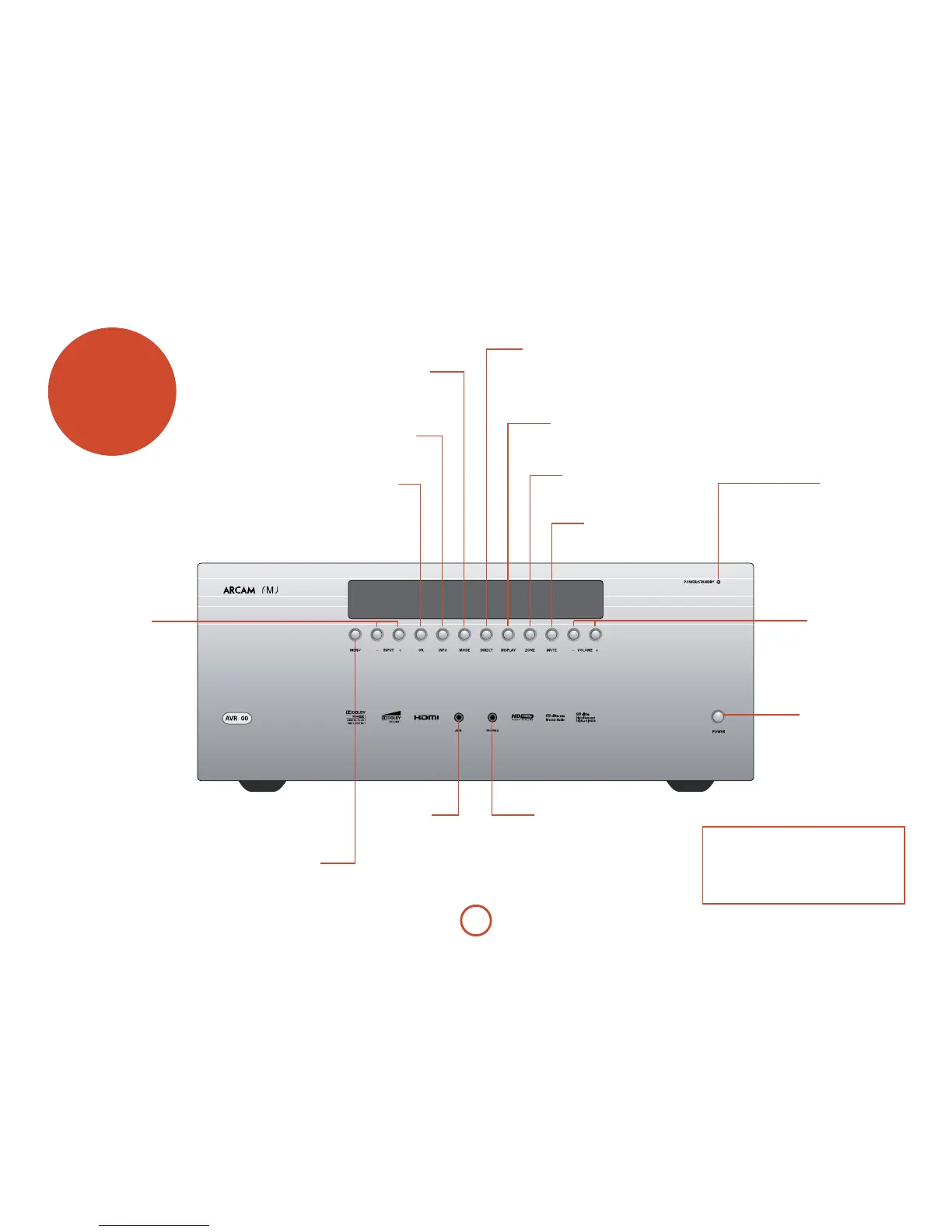

front panel
operation
Power
Switches the main power to the
AVR400 on and o.
Once the unit is switched o,
it should be le for at least ten
seconds before switching on
again.
Volume
Adjusts the analogue output
volume in the selected zone
(line out, speakers and
headphones).
Aux
Multi purpose auxiliary
line level input,
calibration microphone
input and 3.5mm optical
digital (SPDIF) input.
Phones
is socket accepts headphones
with an impedance rating between
32 and 600, tted with a 3.5mm
stereo jack plug.
Input
ese buttons select the source
connected to the corresponding
input (or internal input)
Unused sources can be prevented
from being selected in the setup
menu.
Menu
Selects the Setup menus on the
on-screen display (OSD).
OK
Used to enter selections made in the
Setup menu. Press and hold to reset
video outputs to the lowest resolution
(HDMI: 480p; Component 480i).
Info
Selects the information displayed on the
lower le portion of the front panel.
Mode
Selects between Stereo and the available
surround modes for the current source.
Direct
Stereo Direct on/o. Provides a direct analogue path from
the analogue inputs to the le and right front outputs.
Switches o any surround processing modes and shuts
down the DSP circuits for best stereo sound quality.
Display
is switches the display brightness
between o/dim/bright.
Zone
Selects between Zone1 and
Zone2 control.
Mute
Mutes all analogue audio outputs in the
currently selected zone.
Power / Standby LED
is indicates the status of the receiver and is
green when the AVR400 is powered on. Red
indicates the AVR400 is in Standby mode.

Arcam AVR400 Specifications

General

Output level	6000 mV
Receiver type	-
Frequency range	20 - 20000 Hz
Output impedance	50 Ω
Input sensitivity	4000 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.02 %
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	5
Composite video in	4
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Headphone connectivity	3.5 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WMA
Wi-Fi	No
Supported radio bands	AM, DAB, FM
HDMI version	1.4a
Product color	Silver
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic IIx, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD Master Audio
Volume control	Rotary
Power consumption (standby)	0.5 W
Power consumption (typical)	100 W
Certification	FCC, CE
Package weight	20000 g
Cables included	AC

Weight and Dimensions

Depth	425 mm
Width	435 mm
Height	172 mm
Weight	15500 g
