48

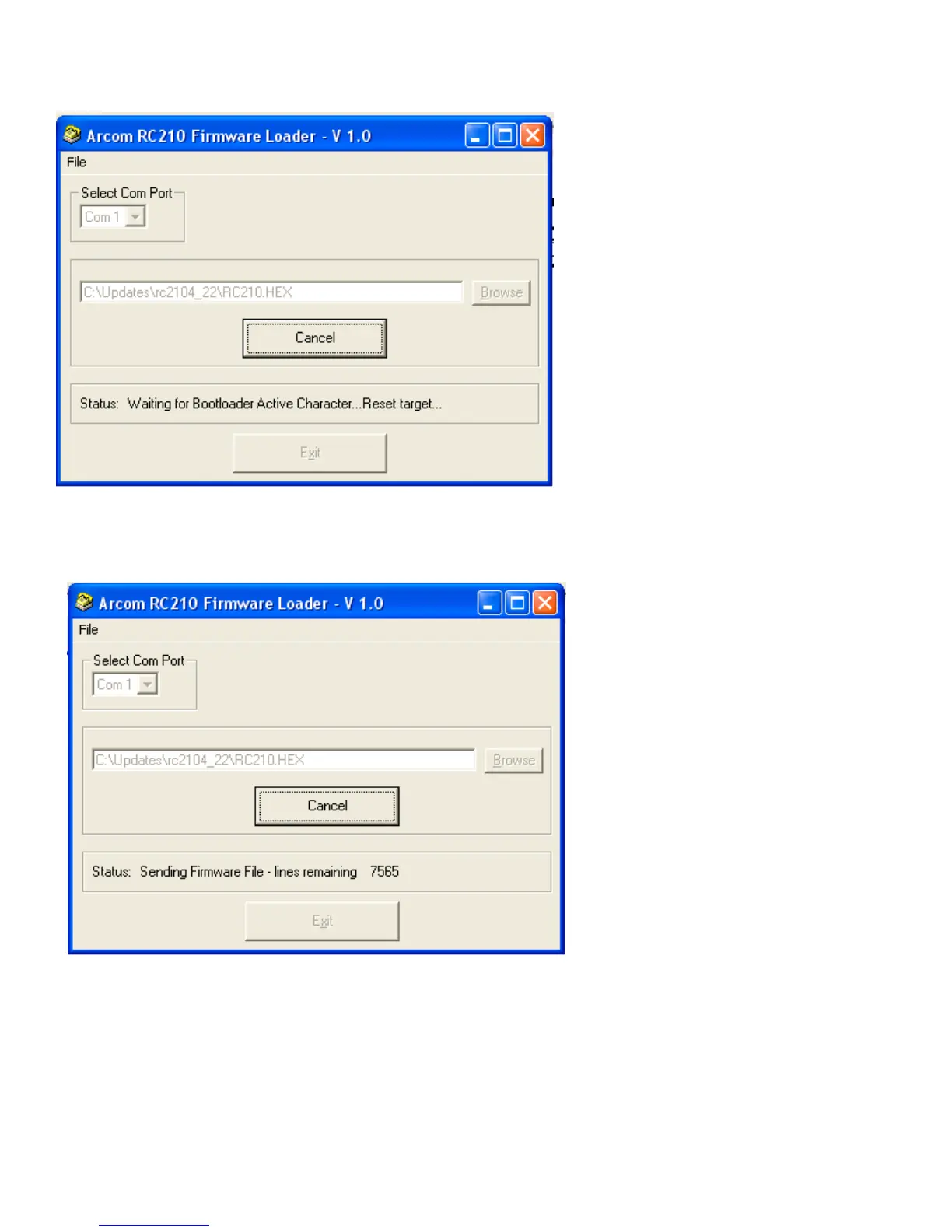

You'll noti
ce the Status
Line w
ill inform y
ou of the
current st
atus. You sh
ould now
remove pow
er from
your RC210 a
nd reapply i
t to star
t the upload.
Updater will
now autom
atically start
the upl
oad.
You can w
atch the pr
ogress of th
e upload in
the
Status Line
47
49
