Argon 18 E-119 TRI+ - 6.2 SEAT POST COLLAR ASSEMBLY

15

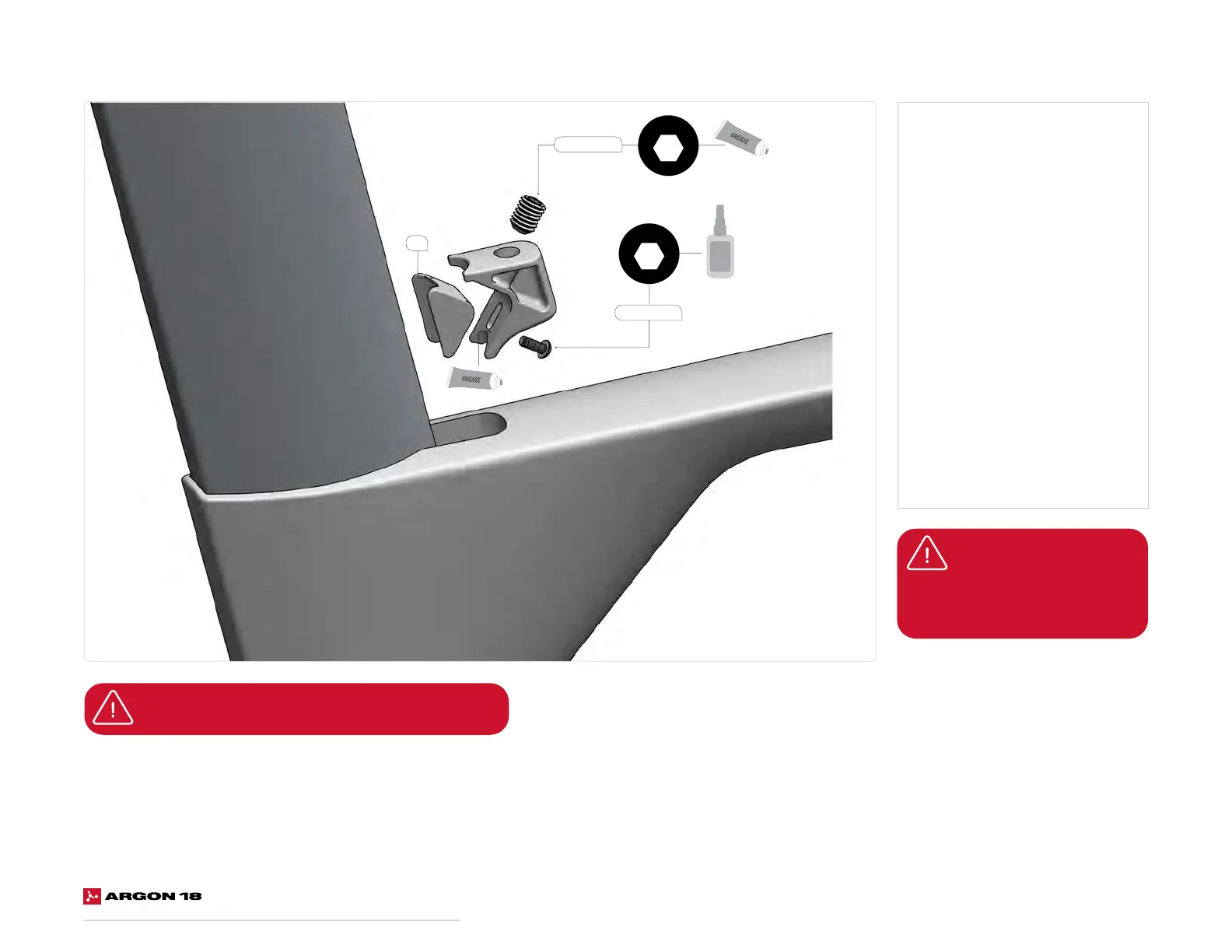

6.2 Seat Post Collar Assembly
1. Apply grease to the lower angled
surface of the seat post collar.
2. Apply a drop of blue Threadlocker
(no. 242) to the M3 x 8 mm
screw thread.
3. Hand tighten the M3 x 8 mm
screw and loosen a 1/4 turn back,
so that the wedge (a) can
to slide.
4. Apply grease on the thread
of the M8 x 10 mm set screw.
5. Screw the M8 x 10 mm set screw
in place.
6. Set the seatpost to the desired
height. Follow the seatpost min
and max insertion values shown on
the next page.
7. Tighten the M8 x 10 mm set screw
of the seat post clamp to 5.5 Nm.
M8 x 10mm
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
M3 x 8mm
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
IMPORTANT:
The E-119 Tri+ Disc’s seat
clamp is NOT the same as
the Nitrogen and E-119 Rim
brake version.
a
IMPORTANT:
Refer to p.16 for seat post MIN and MAX insertion values.
