Argon 18 E-119 TRI+ - 7. DERAILLEUR HANGER INSTALLATION & ADJUSTMENTS; 7.1 REAR DERAILLEUR HANGER ADJUSTMENT

17
7.1 Rear Derailleur Hanger Adjustment
For assistance, visit Park Tool’s website at:
https://www.parktool.com/blog/repair-help/rear-derailleur-hanger-alignment
80832
M4 x 12mm
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
80802

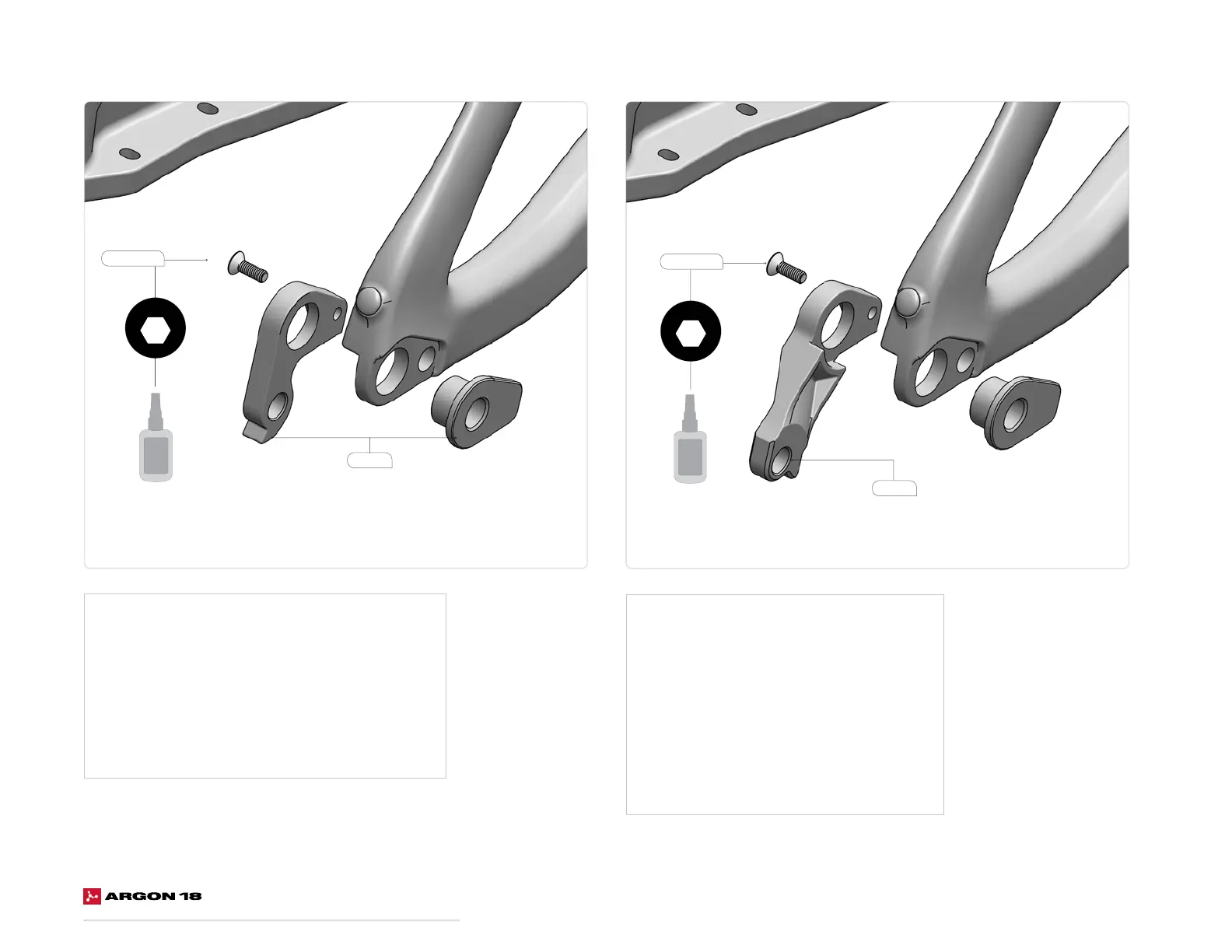

Assembling with a regular hanger:
1. Assemble the rear derailleur hanger (SKU: 80802) on
the frame with the flat head cap screw M4 x 12 mm.
2. Apply a drop of blue Threadlocker (no. 242) to the M4
x 12 mm screw threads and tighten to 2 Nm.
3. Use a rear derailleur hanger alignment gauge to align
the rear derailleur hanger.
Assembling with a direct mount hanger:
1. Assemble the rear derailleur hanger (SKU:
80832) on the frame with the flat head cap
screw M4 x 12 mm (included in SKU: 80802).
2. Apply a drop of blue Threadlocker (no. 242) to
the M4 x 12 mm screw threads and tighten
to 2 Nm.
3. Use a rear derailleur hanger alignment gauge
to align the rear derailleur hanger.
