9.2 rear brake assembly
81550
M5 x 20mm

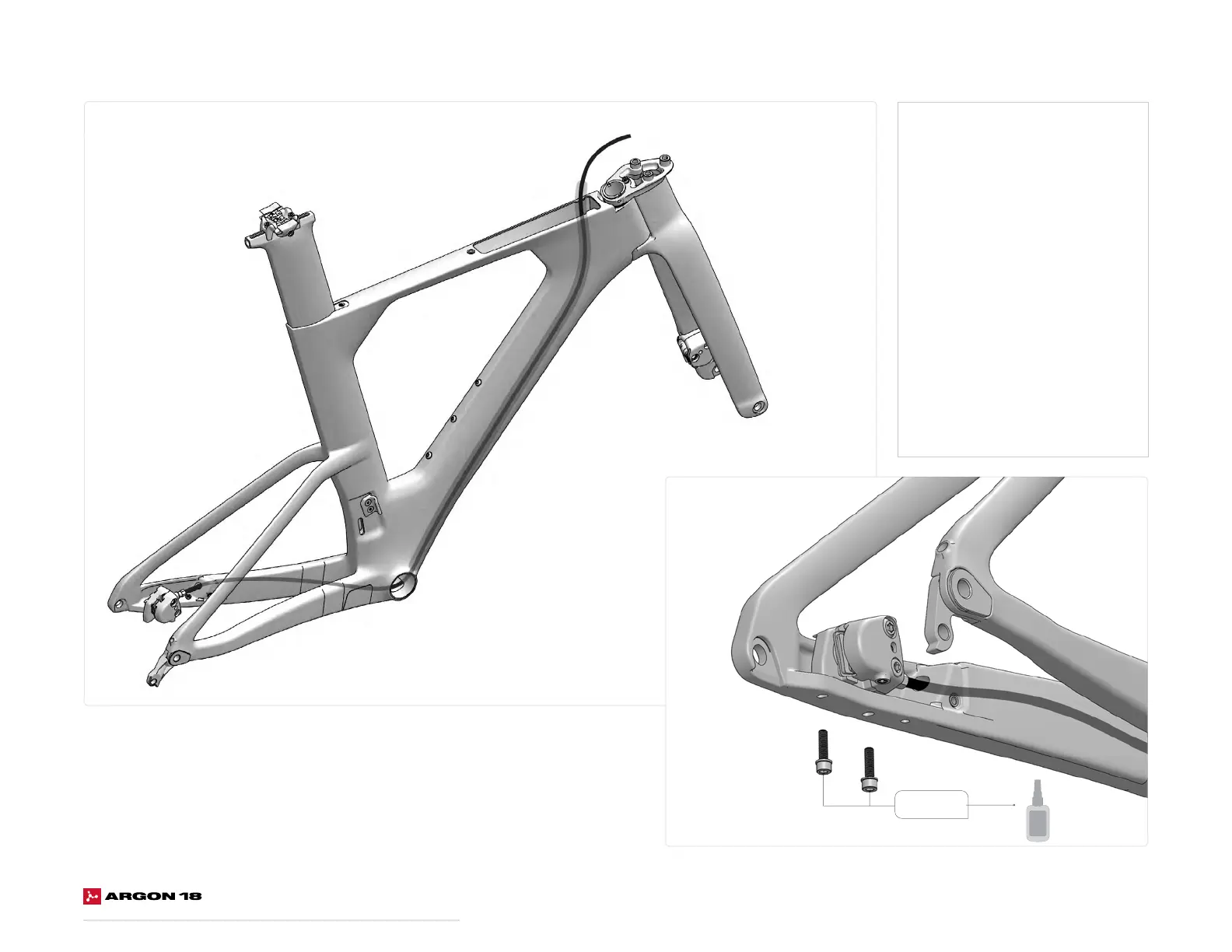

1. Guide the hydraulic housing
through the hole in the chainstay,
guiding it UNDER the bottom
bracket sleeve. It will come out at
the bento box hole on the
top tube.
2. Apply Threadlocker (no. 242) to
the threads of the two M5 x 20mm
rear caliper fixing screws
(SKU: 81550).
3. Thread both M5 x 20mm screws
to fix the caliper to the chainstay,
don't tighten yet.
4. To avoid rattle inside the frame,
the hydraulic housing MUST be
covered with foam liner up to the
BB shell. (SKU: 80811).
To Next Page
