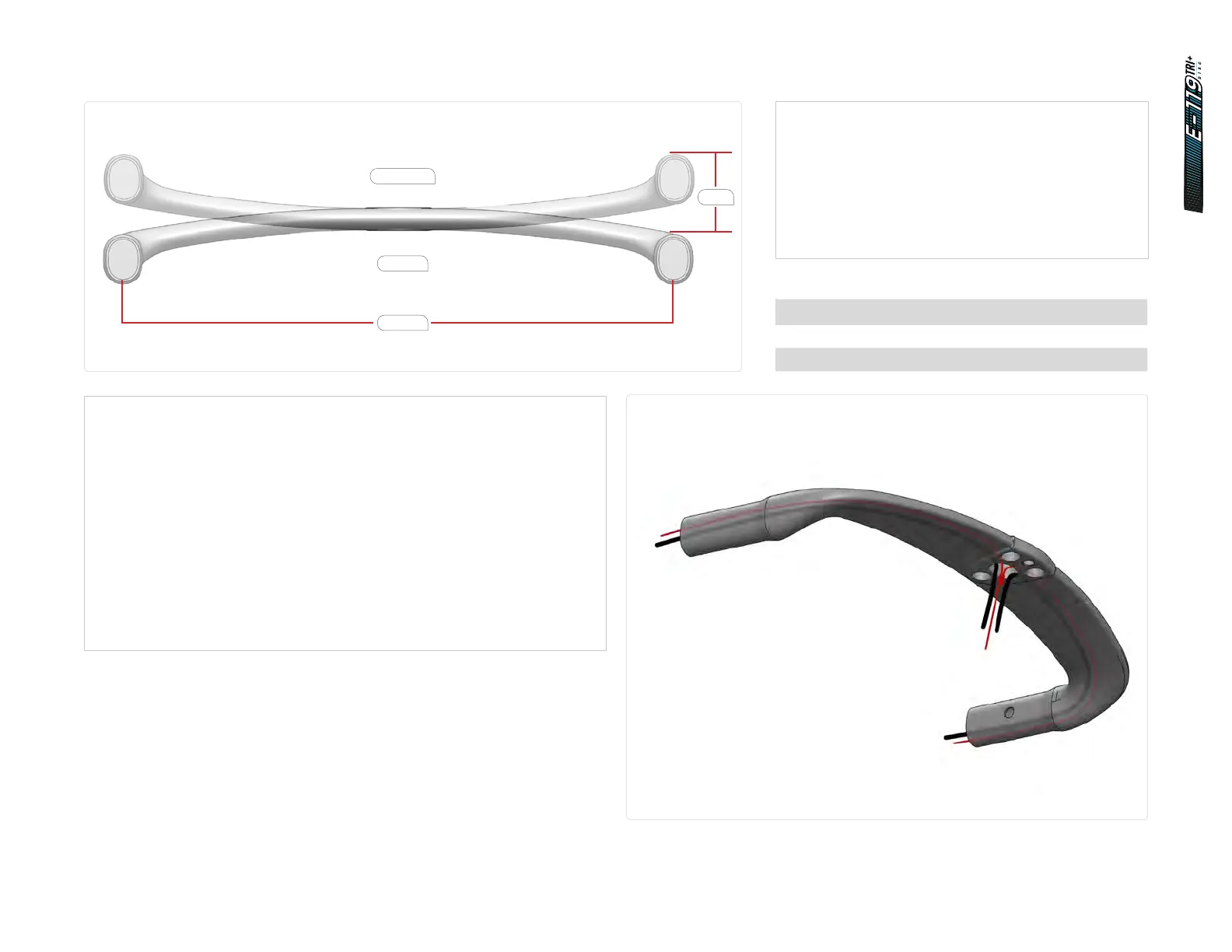

E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE
10.4 Frame Routing - Handlebar - di2
1. The handlebar is reversible: flipping it will raise the
hand position by 58mm from the basebar. Choose the
handlebar orientation depending of your preference.
(See the table below for reference values).
2. The handlebar can be flipped after assembly, but you
will to disconnect the hydraulic
brake housing.
1. Run the Y-split Di2 cable (EW-JC130-MM) through the oval hole in the
handlebar. Each 550mm end must come out on their own side of
the handlebar.
2. Run the rear hydraulic brake housing through the desired side of the handlebar.
The housing must enter through the oval hole on the underside of
the handlebar.
3. Run the front hydraulic brake housing through the desired side of the
handlebar. The housing must enter through the oval hole on the underside of
the the handlebar.
4. Plug both JC-200 junction boxes into the Di2 splitwire coming out of
the handlebar.
Stack Heigth Handlebar Orientation
0 - 70 Normal
60 - 90 Inverted
Inverted
Normal
58mm
40cm
