Argon 18 E-119 TRI+ - 10.5 FRAME ROUTING - HANDLEBAR - DI2

29
10.5 FrAME ROUTING - HANDLEBAR - di2

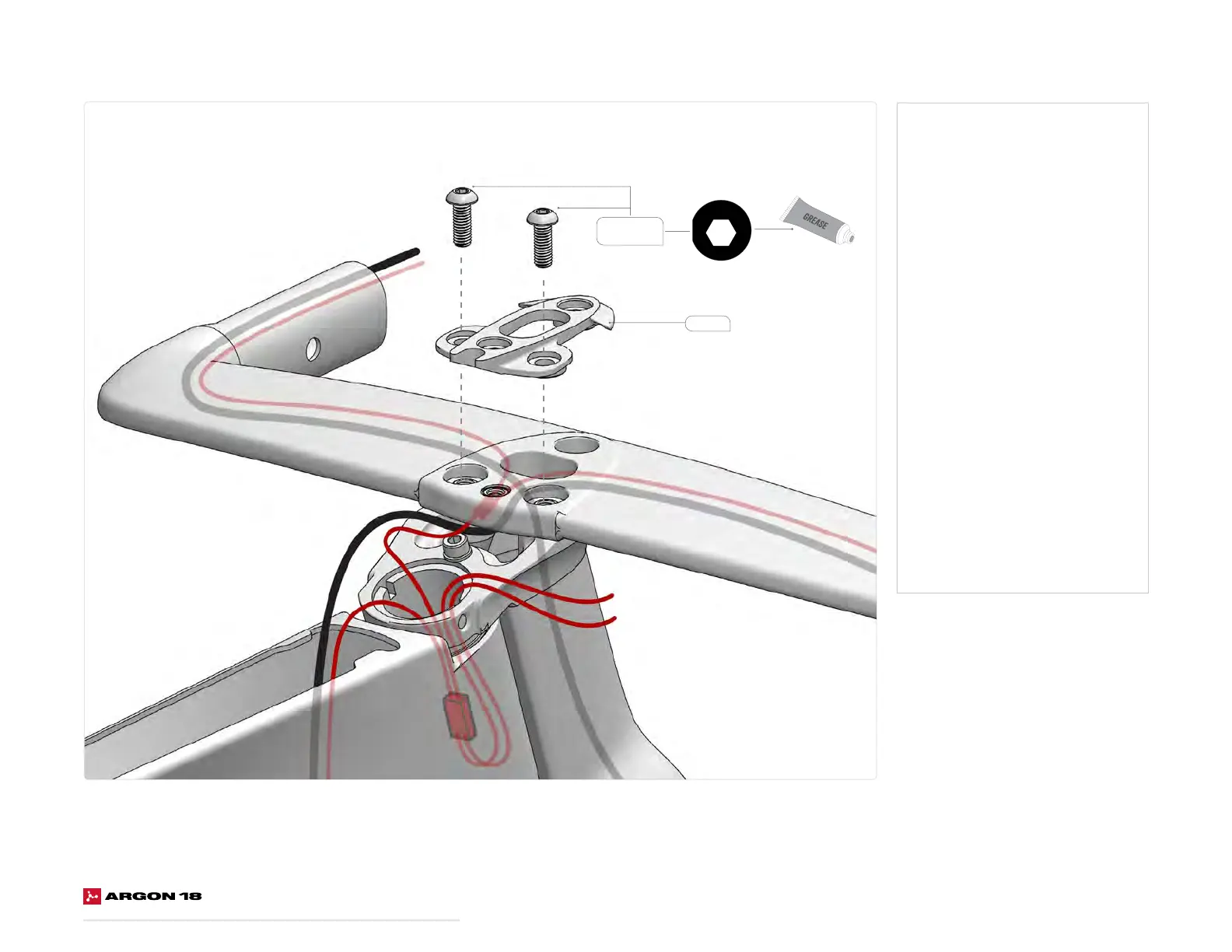

1. Route both brake housings
through the handlebar.
2. Connect the Y-split cable to the
JC-41 junction box.
3. Connect both Di2 extensions
cables to the JC-41 junction box.
4. Connect the Di2 cable coming
from the frame to the JC-41
junction box.
5. Place the JC-41 junction box inside
the steering column. (Leave the
extension wires hanging out
for later.)
6. Install the handlebar on the fork.
7. Install the first spacer over
the handlebar.
8. Apply grease to the treads of both
M6 x 16 mm button head screws
(SKU: 81545).
9. Tighten both M6 x 16mm button
head screws to 6 Nm.
81531
81545
M6 x 16mm
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
