12.5 frame routing – handlebAr - Mechanical

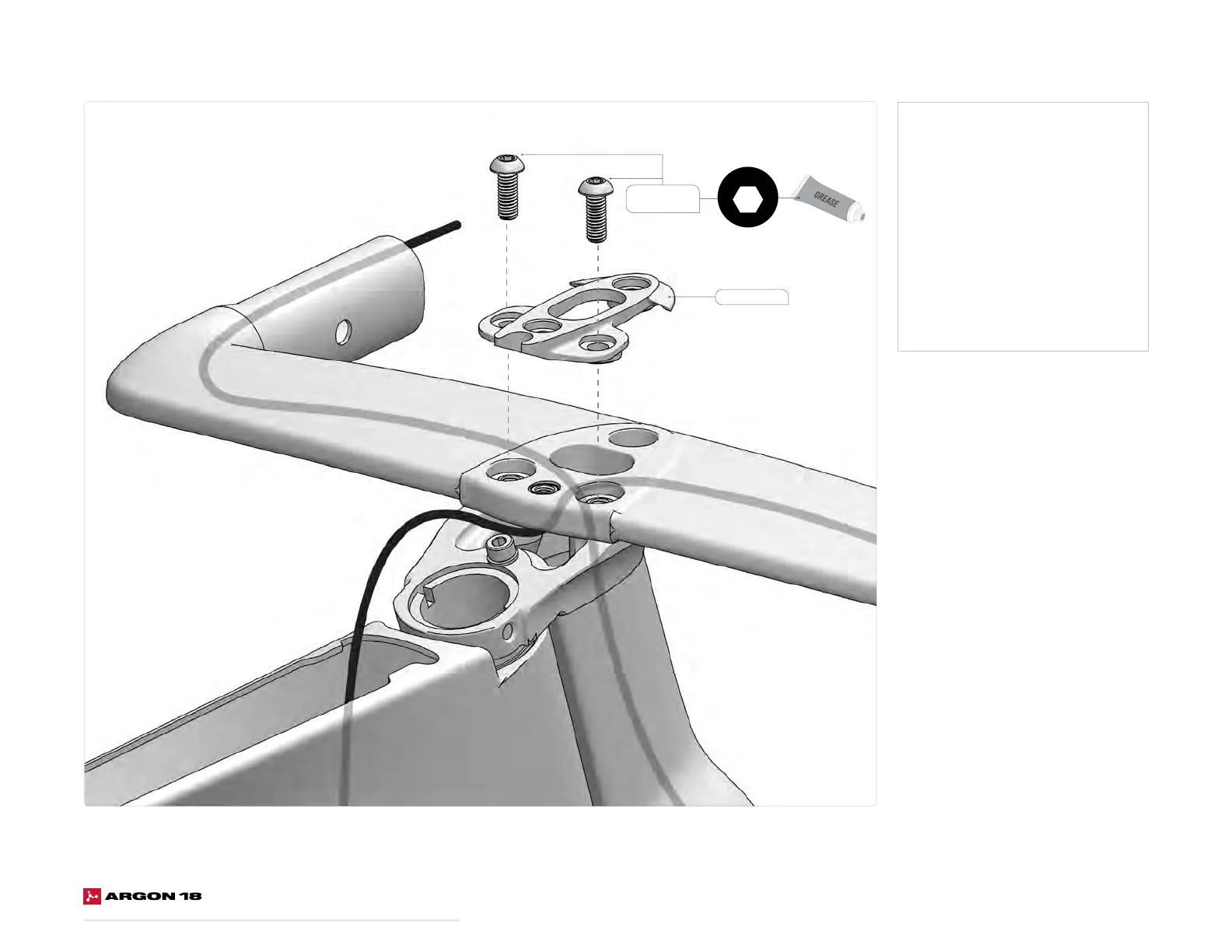

1. Run both brake housings through
the handlebar.
2. Set the handlebar onto the fork.
3. Set the first spacer onto
the handlebar.
4. Apply grease to the threads of
both M6 x 16 mm Button head
screws (SKU: 81545).
5. Tighten both M6 x 16 mm button
head screws to 6 Nm.
