E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE
13.1 Brake Lever Assembly - wedge preparation
M3 x 12mm
Right Lever
The wedge is already assembled on the brake lever (SKU: 81551).

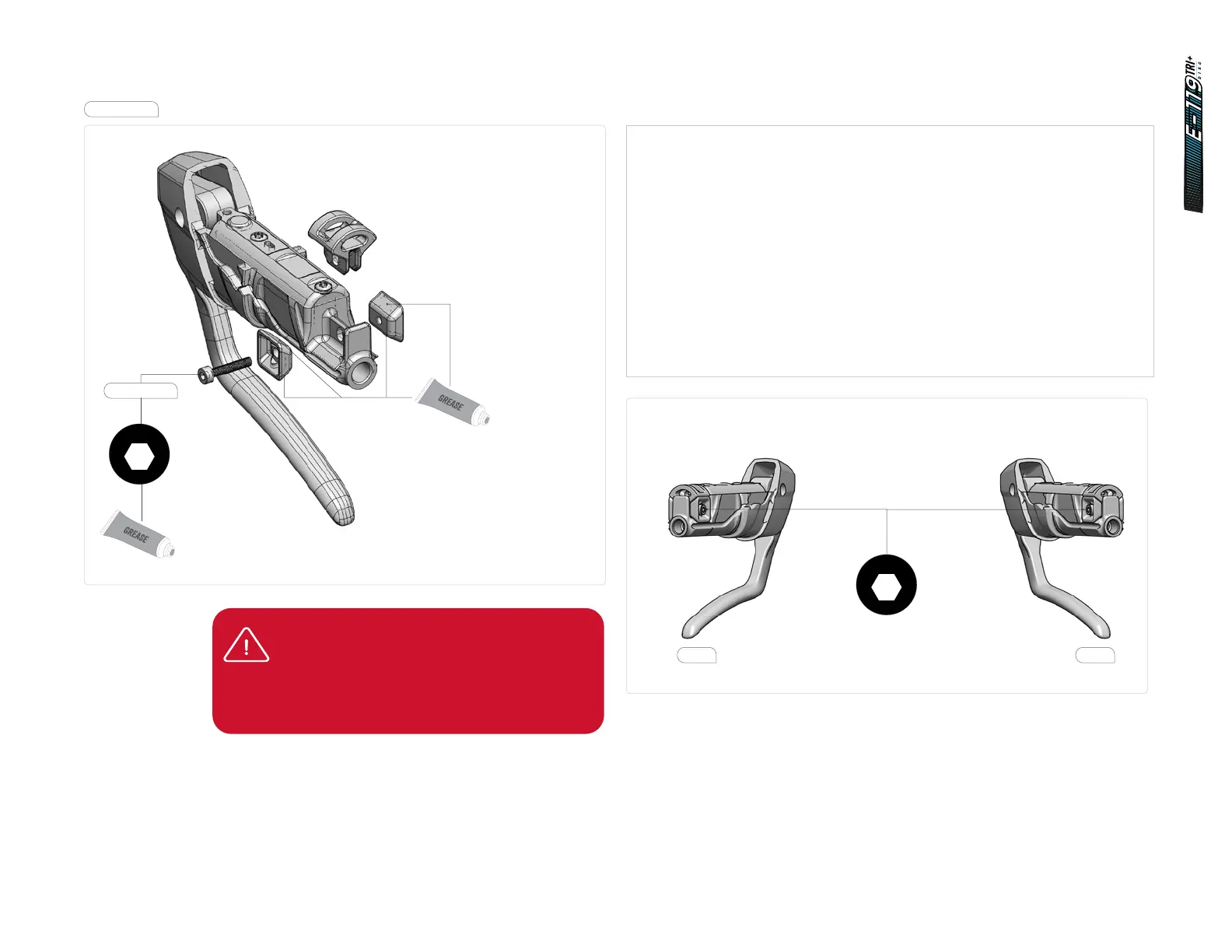

1. Unscrew the M3 x 12mm screw to dismantle the brake lever wedge assembly
(SKU: 81553).
2. Apply grease to all angled surfaces of both wedges.
3. Apply grease to the threads of the M3 x 12 mm socket head screw.
4. Insert the M3 x 12 mm screw onto the inner side of the lever.
5. Tighten the screw approximately 5 turns to hold the assembly.
6. Repeat for the other side of the brake lever.
IMPORTANT:
The brake lever is reversible. The M3 x 12 mm
socket head screw head needs to be on the
INNER SIDE of the lever to align with the access
hole on the handlebar.
