E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE
13.3 Brake Lever Assembly - adapter for etap Routing

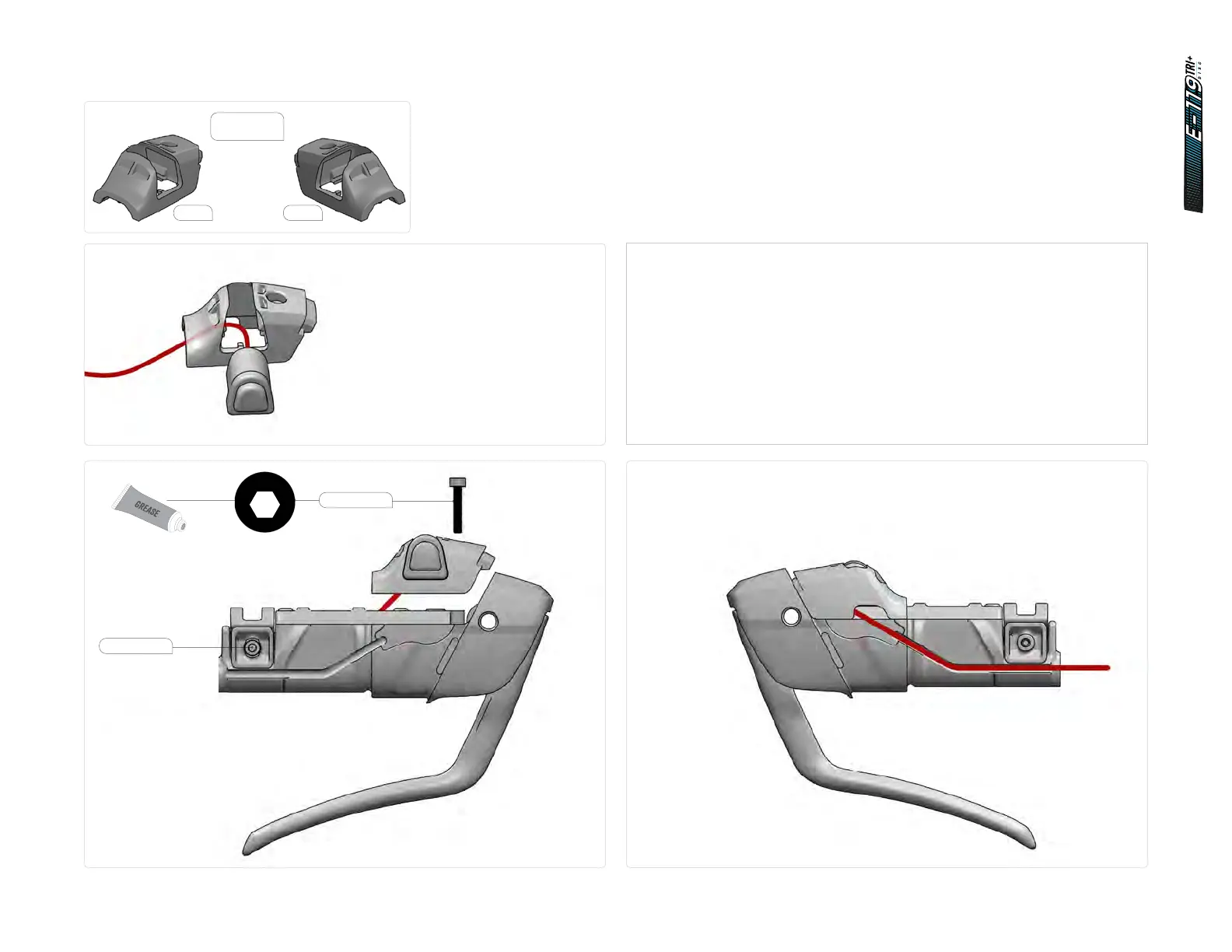

1. Install the SRAM eTap shifter adapter assembly on the brake lever. The shifter
must be on the same side as the M3 x 12 mm wedge screw head.
2. Apply grease to the thread of the M3 x 12 mm adapter screw.
3. Hand-tighten the M3 x 12 mm screw in the shifter.
4. Run the shifter cable through the cable groove on the lever, on the opposite
side of the shifter button.
5. Repeat for the other side.
