14
Depending of the type of assembly, you will
have to select the correct parts.
Tip: No matter the type of assembly you will
choose, always pass the brake housing fi rst
starting from the back of the bike to the front.
1. With the rear brake housing coming from
the back of the bike, guide the end of the
housing through the top of the head tube
opening.
2. Use the brake housing to insert the foam
liner into the downtube.
3. Guide the Di2 cable coming from the
shifters through the top of the head tube and
out of the rectangular opening of the console.
4. Guide the Di2 cable coming from the
derailleurs into the downtube and out of the
rectangular opening of the console.
5. Place the Di2 O-Ring around the Shimano
EW-RS910 junction box.
6. Connect the shifters and derailleurs Di2
cables to the Shimano EW-RS910 junction
box.

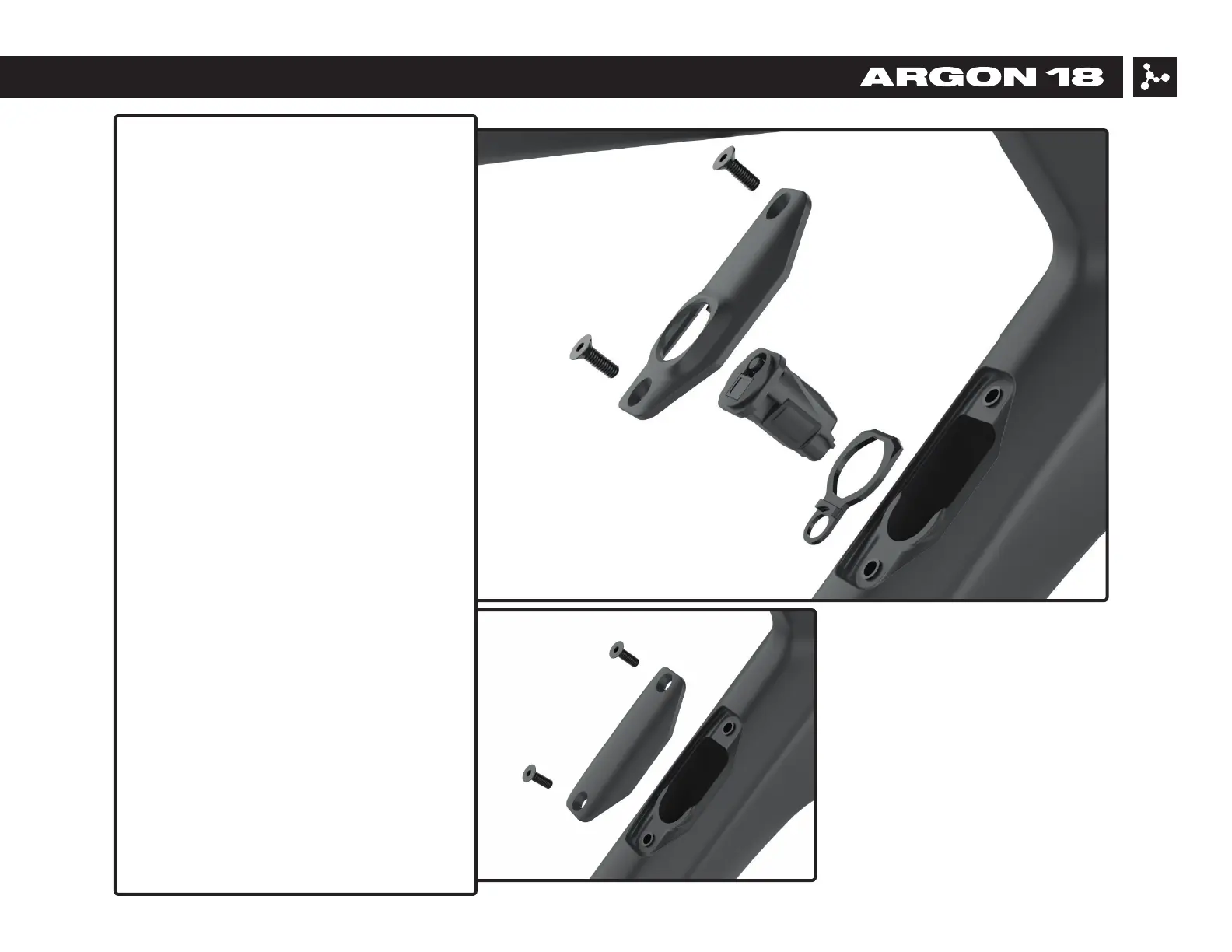

7. Clip the Shimano EW-RS910 junction box
on the console cap.
8. Fix the console cap to the downtube of the
frame with the screws.
For Wireless groupset, simply fi x the Wireless
Console Cover to the downtube of the frame
with the screws.
KRYPTON PRO 302A 6. Cable and Housing Routing - Electronic Shifting
