Appendix C: 5. Connect the dispenser sensor to JP12 (LABEL) of main board and
secure the dispenser board in front of TPH module.
Installation for
Dispenser and Rewinder
1. Turn off the printer.
2. Remove the top covers on both left and right sides.
3. Set bit 5 of DIP switch (1~8) to ON position.

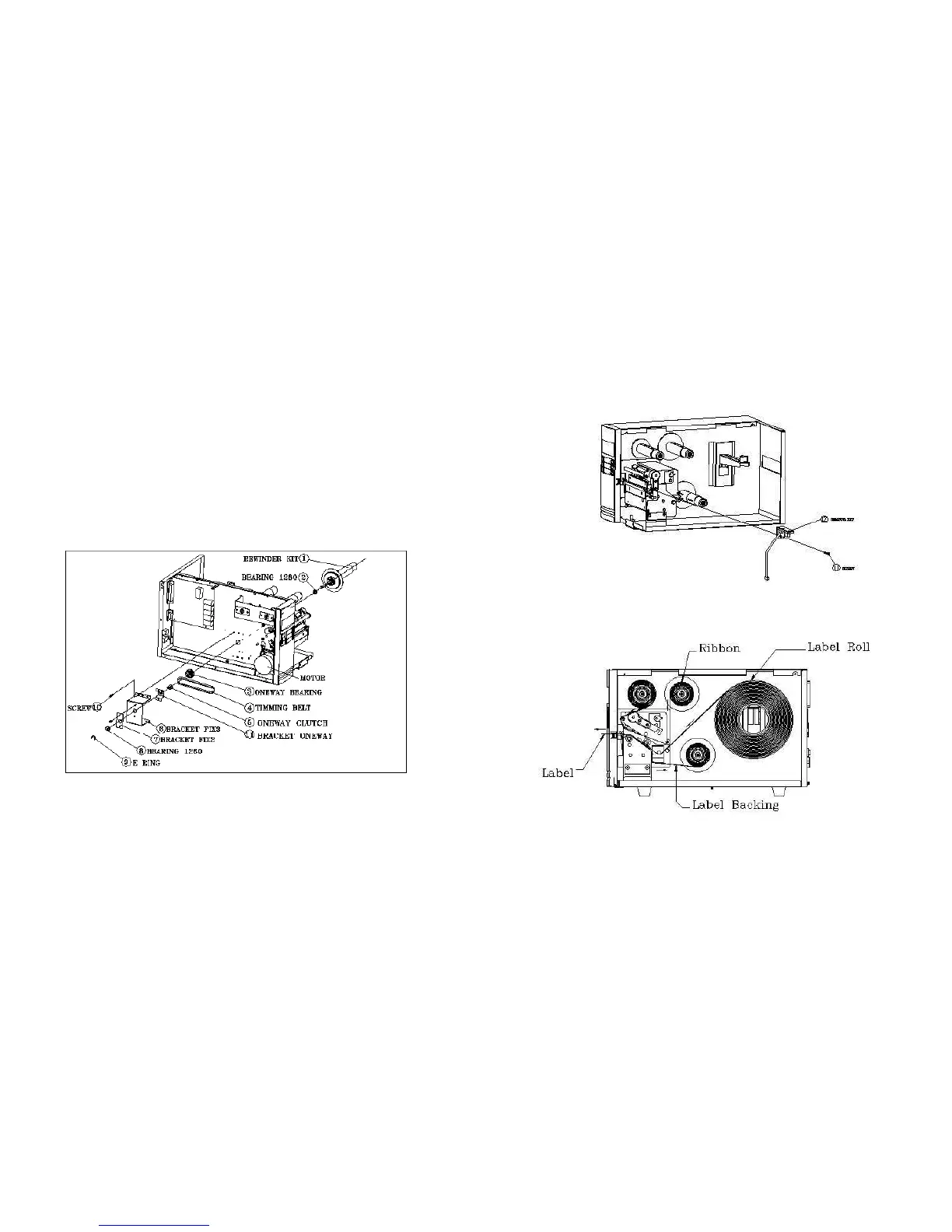

4. Refer to the diagram. Assemble the related components for both left
and right sides.
68
6. Install ribbon and media.
67
To Next Page
