14
Loading Ribbon and Media
This section describes how to load ribbon and media in the OS
Series printer.
Loading Ribbon
Note: This section does not apply to direct thermal printing.

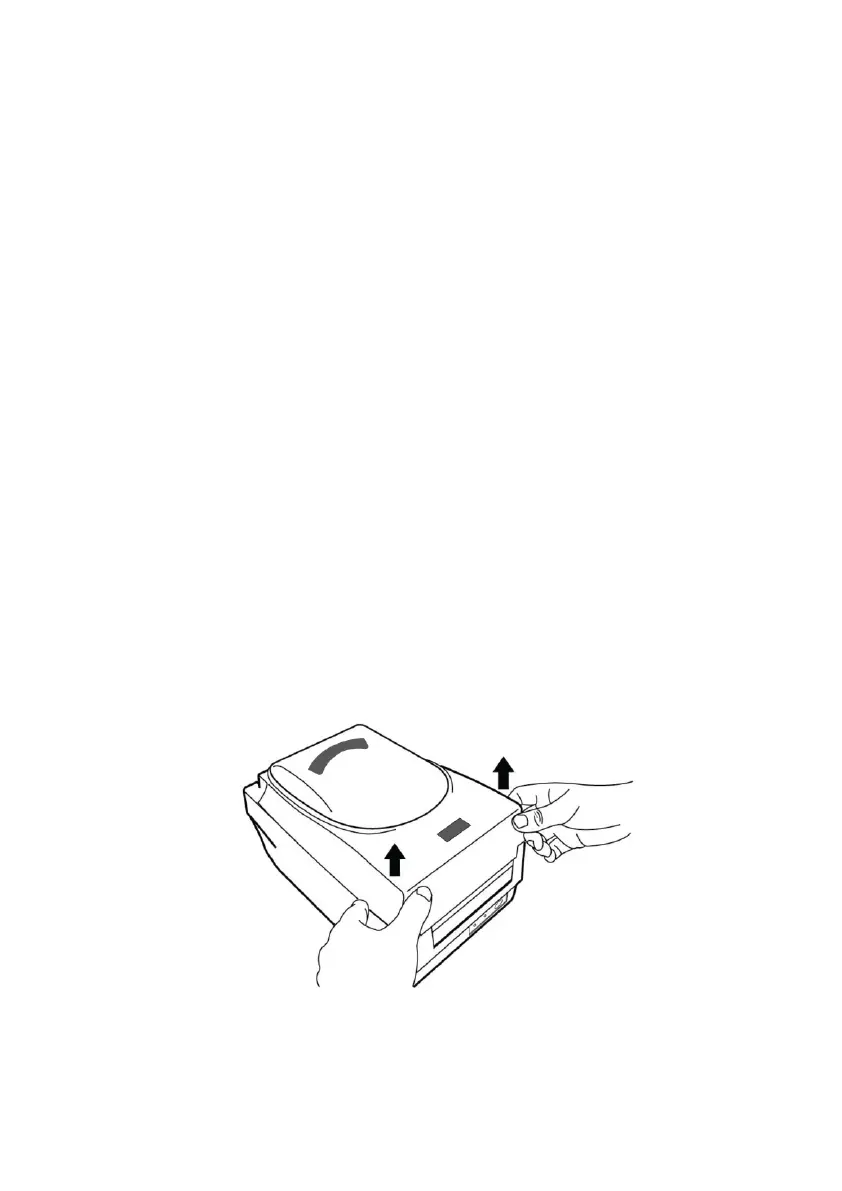

1. Lift the top cover to expose the media compartment.
2. Unlatch the print head module by pushing the two white
release levers on the sides toward the rear.
3. Turn over the print head module to expose the ribbon
supply holder.
To Next Page
