See Figures 34 and 35.
5. Loosen hardware on cable guide clamp.
6. Adjust wheel drive cable tension:
• To increase wheel drive control lever /
REFLEX drive handle response, lower
cable and tighten clamp hardware.
• To decrease wheel drive control lever /
REFLEX drive handle sensitivity, raise
cable and tighten clamp hardware.
7. Torque to 4.0 N*m (35 in-lbs).

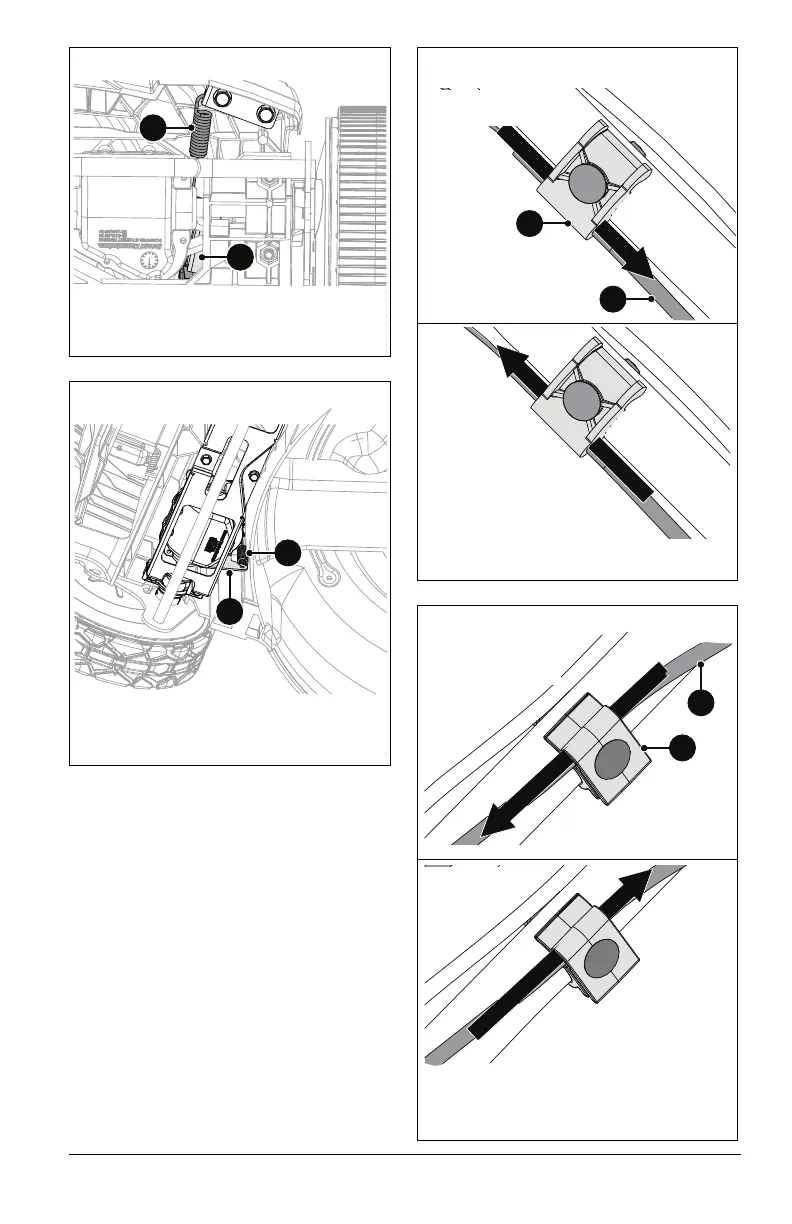

1. Extension Spring
2. Transmission Bracket
Figure 32
1
2
Model 911608
1. Extension Spring
2. Transmission Bracket
Figure 33
Models 911609, 911614
1
2
Increase Cable
Tension / Speed
Decrease Cable
Tension / Speed
1. Adjustment Cable
2. Cable Guide Clamp
Figure 34
2
1
Models 911609, 911614
Figure 35
Decrease Cable
Tension / Speed
1. Adjustment Cable
2. Cable Guide Clamp
2
1
Increase Cable
Tension / Speed
Model 911608
