Lubricate Unit
Use the following key for all lubrication
procedures.
Traction Drive
1. Lubricate as shown in Figures 18, 19, 20
and 21.
IMPORTANT: DO NOT allow grease or oil to
contact friction disc, friction plate or belts.
2. Reinstall bottom cover and return unit to
operating position.

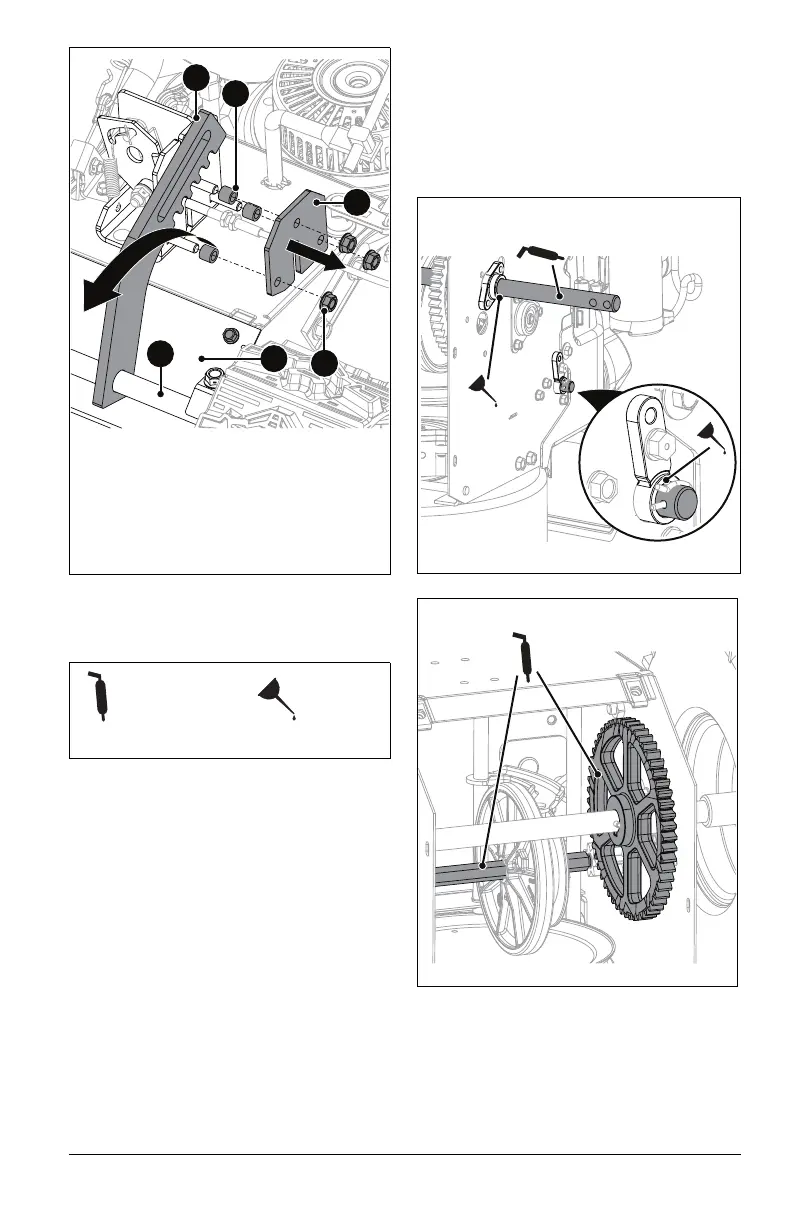

Figure 17
1. Top-lock Flange Nut
2. Height Adjuster Plate
3. Height Adjuster Stop
4. Bottom Cover
5. Rear Axle
6. Spacer
2
5
4
1
3
6
* = Lubricate on Both Sides
Grease
Oil
Figure 18
*
*
*
Models 920025, 920026, 920027
Figure 19
Models 920025, 920026, 920027
