TECHNICAL AREA
/ 42
For accessing the Technical Area
simultaneously press the ESC
and buttons for 5 seconds;
the display will visualise the
request for entering the technical
code.
Press the programming key b to select 234 and press
the button .
To move within the Technical Area, press the programming key
b and press button to access the selected window.
Press the programming key b to select a parameter and
press button to access it.
To modify the value of a parameter, press the programming key
b and press button to store the value.
Use the ESC button to exit a parameter without storing the
modication and for returning to the normal viewing mode.
TECHNICAL AREA - reserved for qualied technician
Accessing the Technical Area allows for setting/conguring
the device according to the specic requirements of every
installation procedure.
It also provides important information relating to the efcient
operation of the boiler.
The Technical Area comprises various display windows that
allow for directly accessing the parameters Intervening in each
single product installation/conguration phase.
The parameters relating to each single menu are listed in the
following pages.

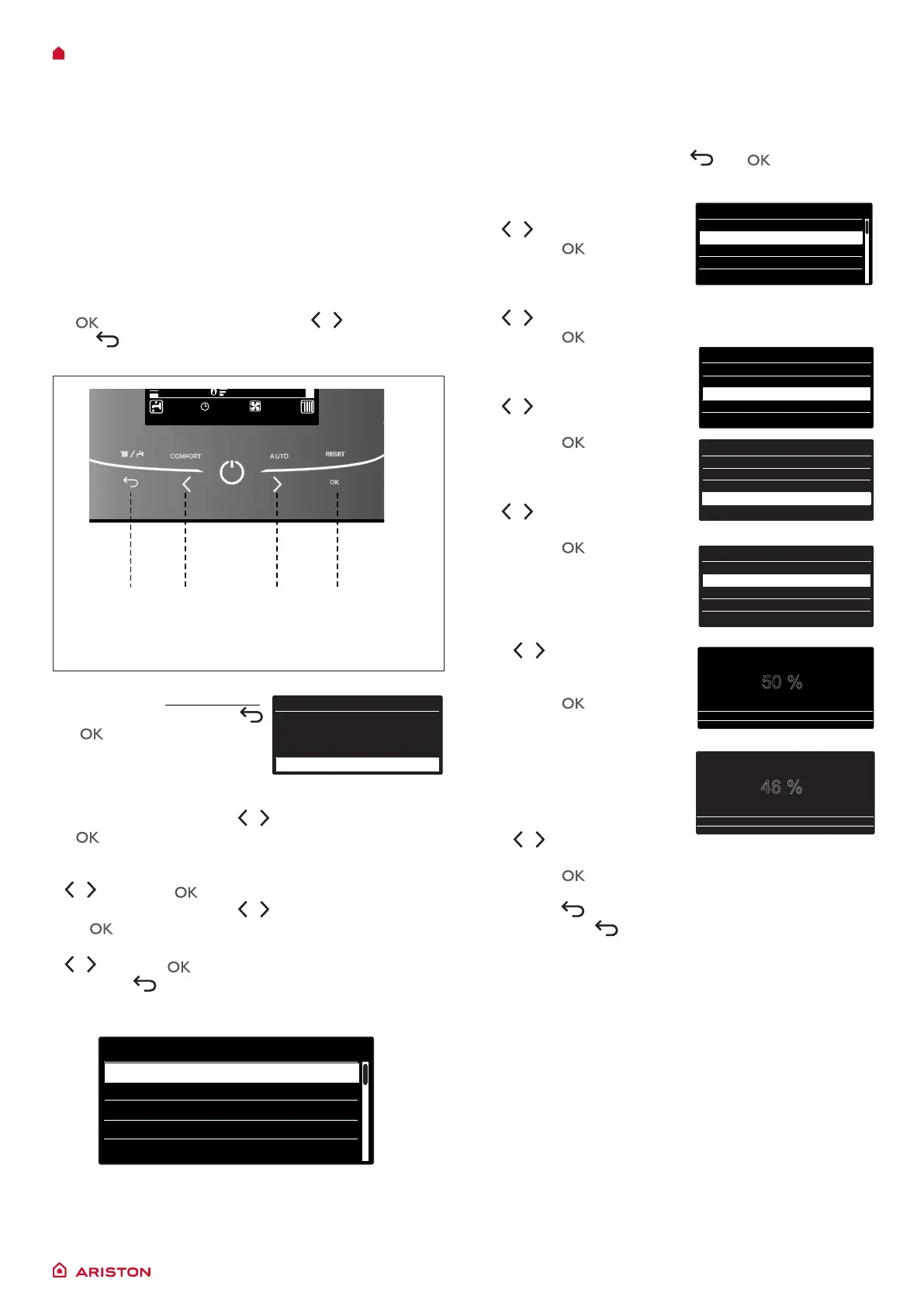

The various parameters can be accessed and modied using
the button , the programming Keys b and the ESC
button (see picture below).
a. ESC button (Back)
b. Programming keys
c. OK button
26/10/15
1,5 bar
CASCADE AUTO
Central Heating
COMFORT
12:30
40° 70°
10°
20,5°
3
00 02 04 06 08 10 12 14 16 18 20 22 24
a b b c
Insert technical code
222
Insert code
Save
Complete Menu
Configuration Wizard
Service
Faults
Technical area
Language, date and time
Example:
Modication of parameter
2.3.1 Max. Adjustable Central Heating Power
Proceed as follows:
1. Simultaneously press the ESC and buttons for 5
seconds; the display will visualise the request for entering
the technical code.
2. Press the programming key b
and select code 234.
3. Press the button; the
display will visualise the
available windows.
4. Press the programming key b
to select the Complete Menu.
5. Press the button to
access; the display will
visualise the available menus.
6. Press the programming key b
to select Menu
2 - Boiler parameters.
7. Press the button. The
display will visualise the
available sub-menus.
8. Press the programming key b
to select 2.3 - Central
heating 1.
9. Press the button to
access.
The display will visualise the
parameters relative to sub-
menu 2.3.
10. Press the programming key
b to select parameter
2.3.1 - Max. C.H. Adjustable.
11. Press the button to
access the parameter.
The display will visualise the
value of the parameter (50%)
in addition to the minimum
and maximum values
allowed.
12. Press the programming key
b to select the new
value, e.g. 46%.
13. Press the button to store the modication.
(To exit the parameter without storing the modication, press
the ESC button).
14. Press the ESC button to return to the normal viewing
mode.
1 <Not Available>
2 Boiler Parameters
3 <Not Available>
4 Zone1 Parameters
Menu
0 Network
2.1 Free parameters
2.2 Settings
2.4 Central Heating-2
2 Boiler Parameters
2.0 General
2.3 Central Heating-1
2.3.1 Max CH Adjustable 50
2.3.2 <Not Available>
2.3.4 <Not Available>
2.3 Central Heating-1
2.3.0 Max CH Absolute 62
2.3.3 <Not Available>
50 %
Maximum value 100%
Minimum value 0%
2.3.1 Max CH Adjustable
46 %
100%
0%
2.3.1 Max CH Adjustable
Maximum value
Minimum value
Configuration Wizard
Service
Faults
Technical area
Language, date and time
Complete Menu
