Ariston ALTEAS ONE+ NET User Manual

PRODUCT DESCRIPTION
/ 8

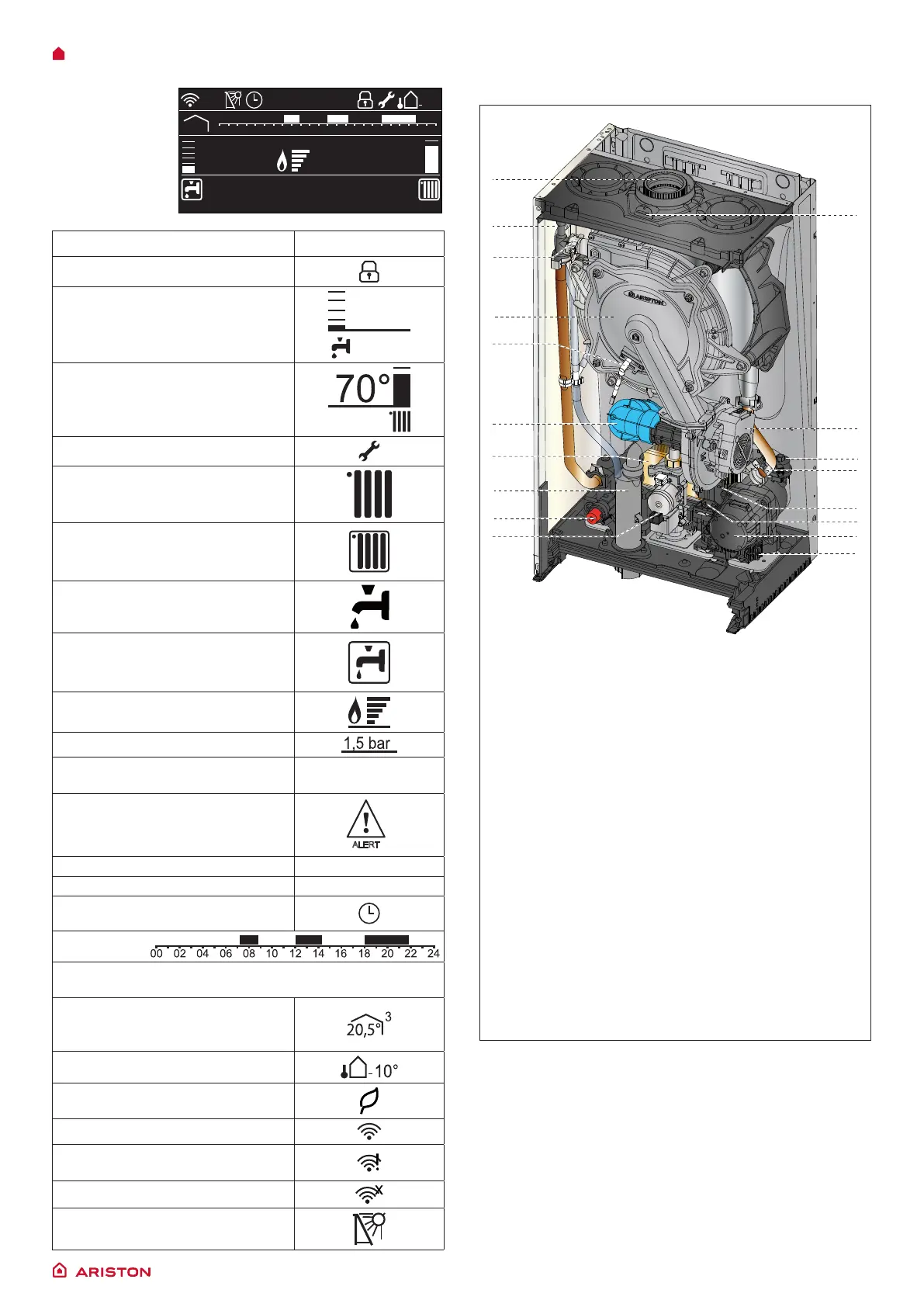

OVERALL VIEW
DISPLAY
Date and time
26/10/21 12:30
Keylock active
D.H.W. set temperature and indication of
the set temperature level
42°
C.H. set temperature and indication of the
set temperature level
Warning scheduled maintenance
Heating operation set
Heating operation active
D.H.W. operation set
D.H.W. operation active
Flame detected with indication of power
used
Digital pressure gauge (bar)
Scrolling text displaying operation as
information
C Heating active
Error wsignals
The display show the code and
description
ALERT
AUTO function activated AUTO
Hot Water Comfort activated COMFORT
CH Schedule programming
(set display: boiler base - see user’s menù)
CH Schedule programming
(set display: boiler complete - see user’s menù)
Internal temperature displayed for
set zone. (with bus device connected
- optional)
External temperature displayed
ECO mode
WIFI active
WIFI connected to the local network,
but without access to the server
WIFI not congured
Solar temperature probe connected -
option
1. Flue connector
2. Air relief valve
3. C.H. Flow temperature probe
4. Main heat exchanger
5. Detection Electrode
6. Silencer
7. Secondary heat exchanger
8 Condensate trap
9. C.H. pressure relief valve
10. Gas valve
12. C.H. circuit lter
13. Modulating circulation Pump with air release
valve
14. D.H.W. Flow switch
15. Diverter valve
16. C.H. Return temperature probe
17. Water pressure sensor
18. Modulating Fan
20. Combustion Analysis Test Point
26/10/21
1,5 bar
AUTO
C Heating active
COMFORT
16:19
42° 70°
10°
20,5°
3
00 02 04 06 08 10 12 14 16 18 20 22 24
1
2
5
6
8
9
10
12
13
14
15
17
20
18
4
7
3
16
