Ariston NIMBUS M NET User Manual

Description
9 / EN

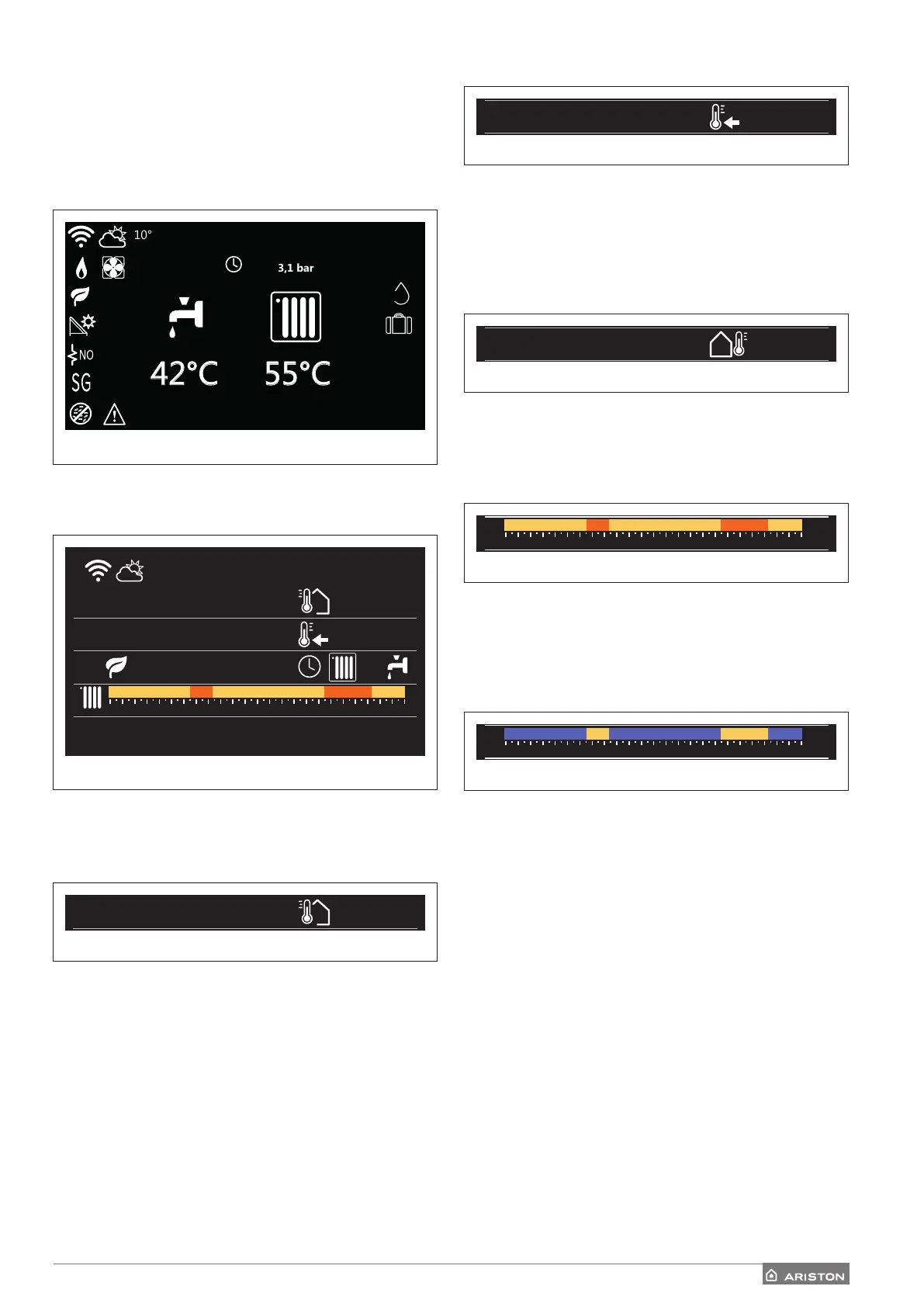

2.4 Base home page
The “Base” home page can be selected if the device is configured
as a system interface (Zone 0).
The central area shows information about the heating, cooling
or domestic hot water modes.
For the meaning of the icons, refer to the paragraph “Complete
home page”.
3,1 bar
50%
55°C
42°C
10°
COMFORT
Fr 4-JUN 12:30
Fig. 4
2.5 Customizable home page
Fr 4-JUN 12:30
Internal temperature
20°
Required temperature
21°
0 2 4 6 8 10 12 16 20 14 18 22 24
16° 16° 16°20° 20°
Fig. 5
The home page “Customizable” allows the user to view
information that can be selected in the following options:
Internal temperature
Fr 4-JUN 12:30
Internal temperature
20°
Required temperature
21°
Outside air temperature
16°
Operation mode
55°C
Fig. 6
If the device is associated with a zone, the room temperature
of the relevant zone is shown. If the device is configured as a
system interface (Zone 0), the room temperature of the zone
defined by the 0.4.0 parameter is shown.
Required temperature
Fr 4-JUN 12:30
Internal temperature
20°
Required temperature
21°
Outside air temperature
16°
Operation mode
55°C
Fig. 7
If the device is associated with a zone, the room set-point
temperature of the relevant zone is displayed. If the device is
configured as a system interface (Zone 0), the room set-point
temperature of the zone defined by the 0.4.0 parameter is
shown.
Outside air temperature
Fr 4-JUN 12:30
Internal temperature
20°
Required temperature
21°
Outside air temperature
16°
Operation mode
55°C
Fig. 8
The information is available if an outdoor temperature sensor
is connected or if the “weather from the Internet” function is
activated once the Wi-Fi module has been activated.
Heating time schedule profile
0 2 4 6 8 10 12 16 20 14 18 22 24
16° 16° 16°20° 20°
Fig. 9
If the device is associated with a zone, the heating time
schedule profile of the relevant zone is displayed. If the device
is configured as a system interface (Zone 0), the heating time
schedule profile of the zone defined by the 0.4.0 parameter is
shown.
Cooling time schedule profile
0 2 4 6 8 10 12 16 20 14 18 22 24
19° 19° 19°26° 26°
Fig. 10
Available only for products configured for the cooling mode.
If the device is associated with a zone, the cooling time
schedule profile of the relevant zone is displayed. If the device
is configured as a system interface (Zone 0), the cooling time
schedule profile of the zone defined by the 0.4.0 parameter is
shown.
