Copying the days of the week
Do you want to copy this programming to other days
of the week ?
M
T
W
T F S S
Continue
35,0° 55,0° 35,0° 55,0°
0 2 4 6 8 10 12 16 20 14 18 22 24

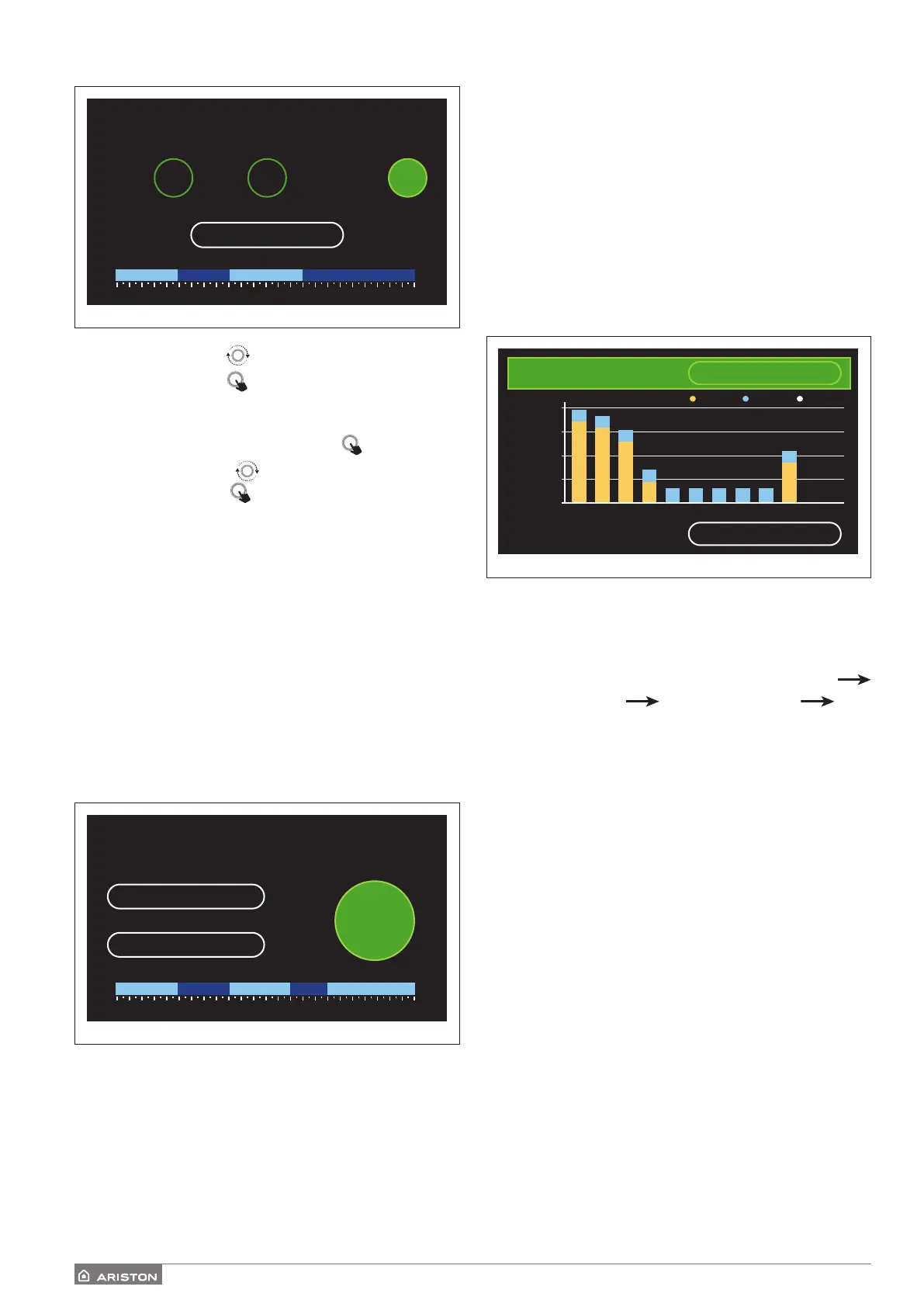

Fig. 40
– Turn the selector
to scroll the days of the week.
– Press the selector
to select the days in which to copy
the time schedule. The selected days will be highlighted
by a green border.
– To deselect a day, press the selector
once again.
– Turn the selector
to navigate to Continue, then
press the selector to confirm.
3.2.4 Auxiliary time scheduling
The auxiliary time scheduling is used for the following functions
which can be set from the menu:
– Applications with heat pump: DHW operating mode =
“Green”.
– Fresh water station: timer-operated recirculation pump
function (Par. 10.2.1 - “DHW pump circulation type” =
“Time Based”).
The auxiliary time scheduling can be set in the same way as
DHW time scheduling.
In the page for defining the time slot you cannot set the
desired set-point, but you can enable/disable the function by
setting the ON/OFF values.
Auxiliary
Scenario Free Monday
Start 24:00
OFF
End 24:00
OFF ON OFF OFFON
0 2 4 6 8 10 12 16 20 14 18 22 24
Fig. 41
3.2.5 Heating/cooling buffer time scheduling
The buffer time scheduling can be defined in the same way as
the DHW time scheduling, for both the heating and cooling
modes.
The buffer time scheduling is based on two temperature levels.
3.3 Consumptions graph
The “Consumptions graph” menu allows the user to view, by
means of histograms, the estimate of the gas and/or power
consumption of the system’s generator in the following modes:
heating, domestic hot water and cooling.
The main page can be accessed after reading the warning
about the accuracy of the data shown in the charts.
Type
Gas [kWh]
Tot: 12068 kWh
2900
2175
725
0
1450
kWh
CH DHW COOL
G M SM L NF G OA A D
Time base
Running year
Fig. 42
In the “Type” field you can choose how to display consumption
information (in terms of energy or money, by converting the
values using the gas and electricity rates).
The units of measurement for energy and gas and electricity
rates can be set from the menu: "System information"
"System Performance" "Energy consumption" "Units
of measure and costs".
In the “Time base” field you can select the time range for the
consumption history chart:
– "Running month"
– "Running year"
– "Last year"

Ariston NIMBUS M NET Specifications

General

Type	Air-to-Water Heat Pump
Refrigerant	R32
Power Supply	Electric
Power Supply Voltage	230 V
Connectivity	Wi-Fi
Heating Capacity	6 kW
