SYSTEM DESCRIPTION
System composition
NIMBUS PLUS S NETystem consists of:
- External unit
- Internal unit
- System interface
- Outdoor sensor
- Sensys Net for connectivity
For more information on available accessories, please
refer to the product catalogue.

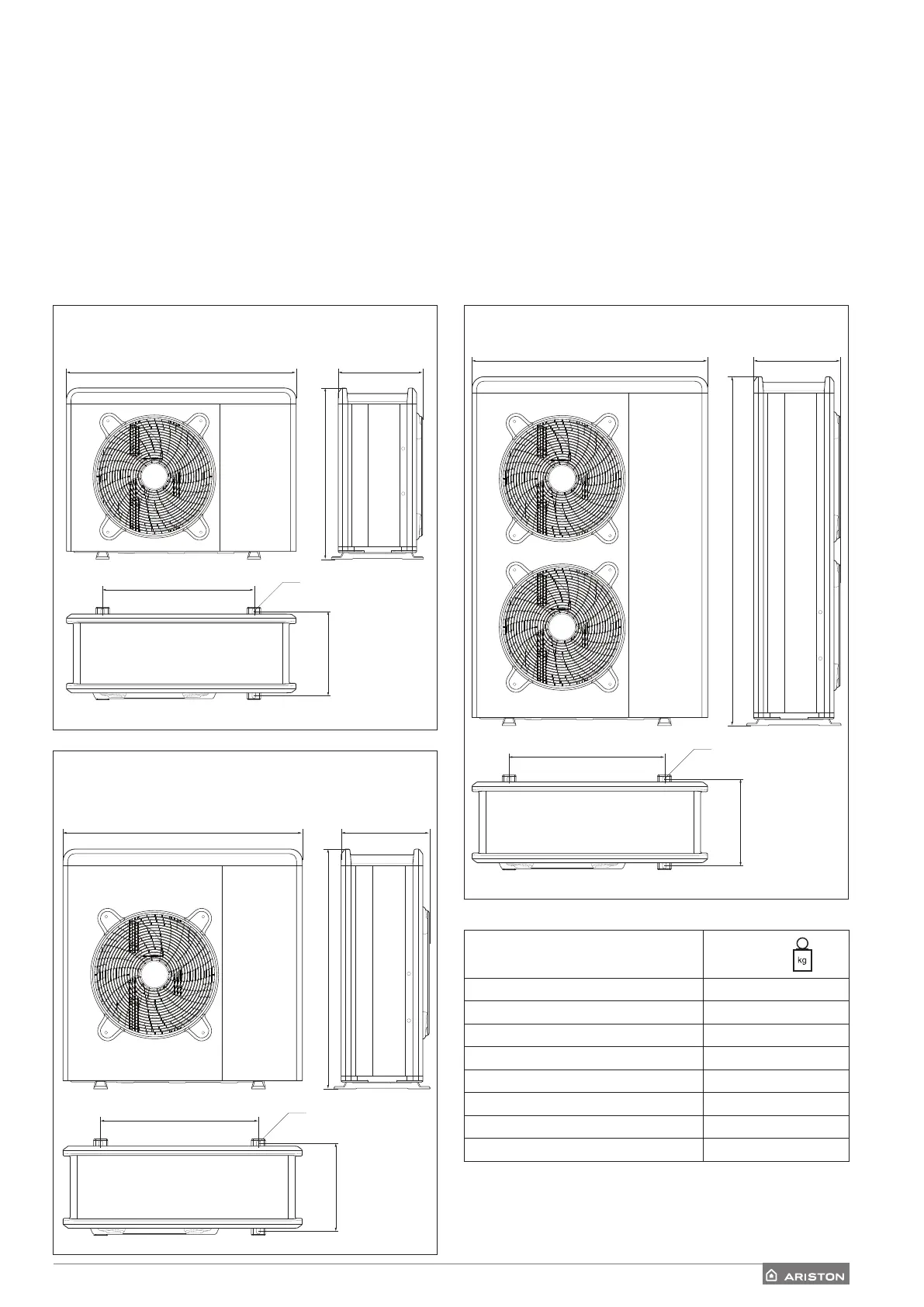

Weights and dimensions (mm)
EXTERNAL UNIT
Weight
40 S EXT
65
50 S EXT
65
70 S EXT
90
70 S- T EXT
106
90 S EXT
135
90 S- T EXT
135
110 S - EXT
135
110 S- T EXT
135
HP 40 S - 50 S EXT HP 90 S - 90 S-T - 110 S - 110 S-T EXT
756
383
1016
670
ø 10
374
1106
383
1016
670
ø 10
374
HP 70 S - 70 S-T EXT
EXTERNAL UNIT
As external unit, one of the following
models is provided:
• NIMBUS 40 S EXT
• NIMBUS 50 S EXT
• NIMBUS 70 S EXT
• NIMBUS 70 S-T EXT
• NIMBUS 90 S EXT
• NIMBUS 90 S-T EXT
• NIMBUS 110 S EXT
• NIMBUS 110 S-T EXT
1506
383
1016
670
ø 10
374
