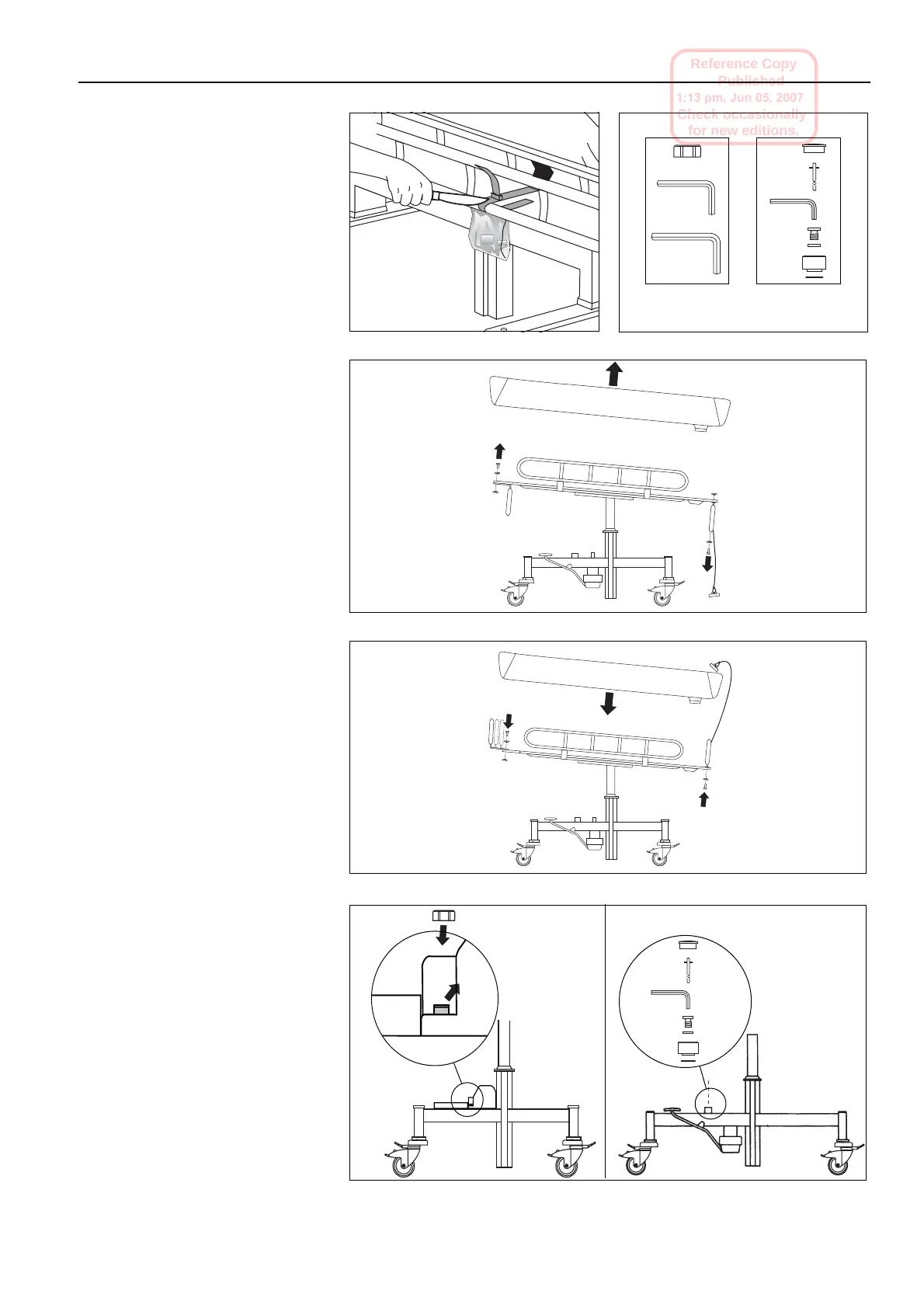

1 Unpack the
Concerto/Basic
.
2 Cut the strap that is fixing the side
supports under the stretcher.
3 Raise the side supports.
4 Check that the bag on the strap
contains the parts to mount the
head- and foot supports and the
oil plug.
The head- and foot supports at the
short ends of the stretcher are
mounted upside down when delivered.
The head support is turned 180° side-
ways as well.
5 Loosen the screws on the head- and
foot supports. Use the 5 mm Allen
key in the bag with the oil plug. Turn
the supports 180° upwards and the
head support 180° sideways as well.
6 Place the head support in one of its
three positions and the foot support
in its only position.
7 Tighten the screws.
8 Remove the transport plug for oil
container. Use the Allen key in the
bag with the oil plug.
9 Assemble the oil plug from the bag
as shown in the figure.
Mounting
5 mm
8 mm
Electric
Hydraulic
4
4
2
5
6
Hydraulic
Electric
8-9
