8

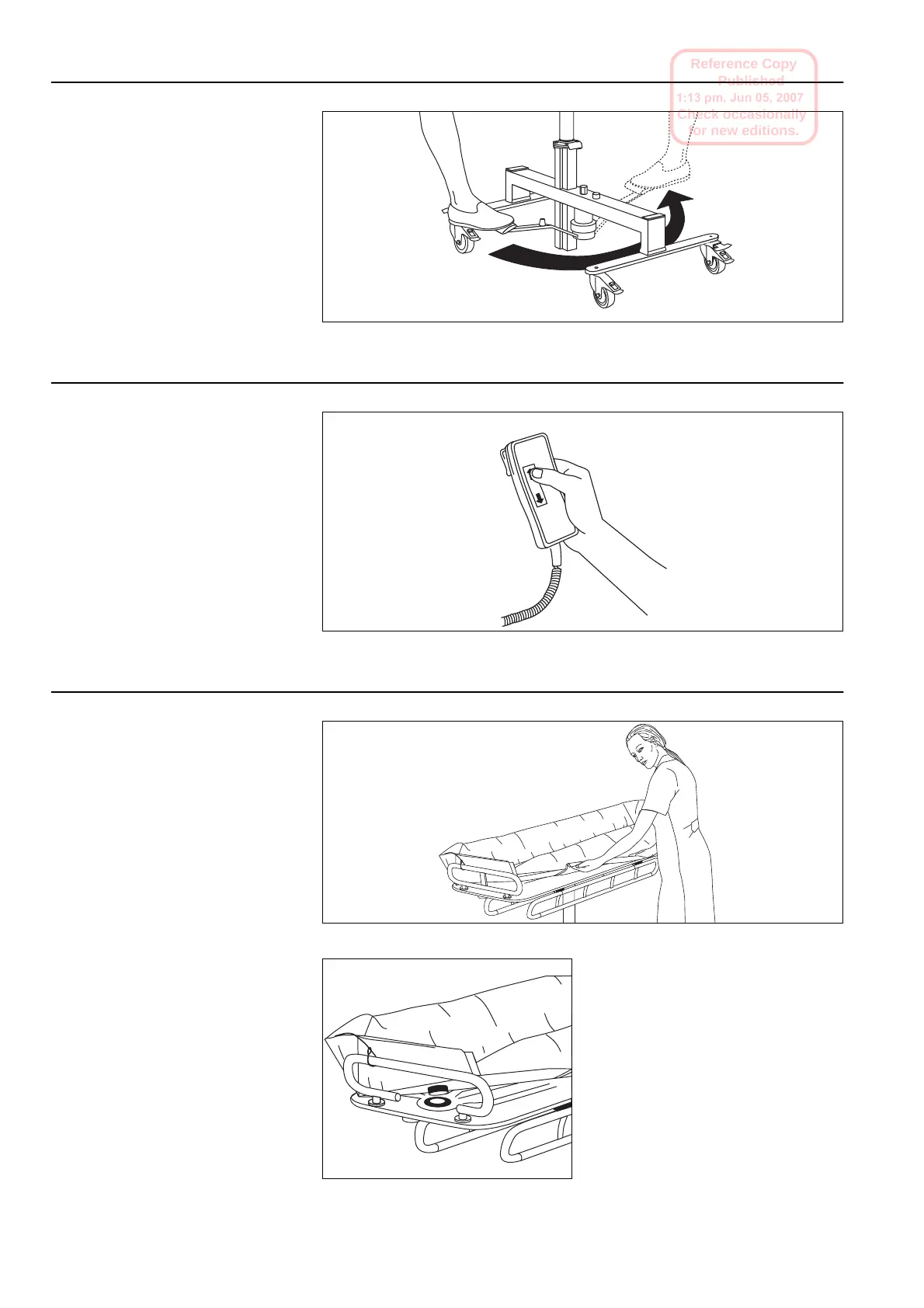

The pedal can be used from both sides
of the
Concerto/Basic
. Press it with
your foot and slide it over to the other
side when necessary.
1 The stretcher is raised by pumping
the pedal. Pump evenly, using the
full range of movement.
2 The stretcher is lowered by pressing
the pedal down as far as it will go.
Unhook the hand control from its
holder.
To raise the
Concerto
, press the “up”
arrow button on the hand control.
To lower the
Concerto
press the
“down” arrow button.
Attaching the mattress
1 Fold down the side supports.
2 Press the draining part of the mat-
tress into the stretcher in order to get
the right position.
3 Snap the side strip of the mattress
round the other side of the stretcher.
4 Snap the edge of the side strip around
the stretcher. Press and drag the palm
along the side strip to fasten.
Removing the mattress
1 Fold down the side supports.
2 Undo the edge of the side strip.
Pull and drag along the side strip to
detach the mattress.
3 Push the mattress towards the other
side of the stretcher so the other side
strip loosens.
4 Loosen the drainage outlet from the
stretcher by lifting the end part of
the mattress straight up.
Manual raising and lowering (Concerto hydraulic, Basic)
Electric raising and lowering (Concerto electric)
Mattress
