Armstrong 4380 - 2.3 Electrical Installation

installation &
operating instructions
Design Envelope 4300 & 4380
Vertical In-line Pumping Unit
12
Analog input
Programmable
analog voltage input
1
Voltage level 0:10Vdc
Input resistance Rin 10KΩ
Resolution 12bit
Programmable
analog current inputs
1
Current range 0:20mA
Input resistance Rin 500Ω
Relay Output
Programmable relay
output
2 (n.o. n.c. com)
Max terminal load 250Vac 2A 500VA
Externals
Enclosure ip55
Vibration test ec 60068-2-6
Max relatively
humidity
95% (iec 60068-2-3)
Operating ambient
temperature
0:40°c
Storage ambient Temperature - 25°c:60°c
Min. ambient
temperature at full
operation
0°c
Altitude 0 - 3000m, de-rate 1% per 100m
above 1000m
Compliance with Standards
en 61800-3:2004 Adjustable speed electrical power
drive systems. emc requirements
iec 61800-5-1 Adjustable speed electrical drive sys-
tems - part 5-1: safety requirements
- electrical, thermal and energy
en 60204-1 Safety of machinery - electrical emc
equipment of machines-part 1: gen-
eral rules
2.3 electrical installation
2.3.1 power wiring

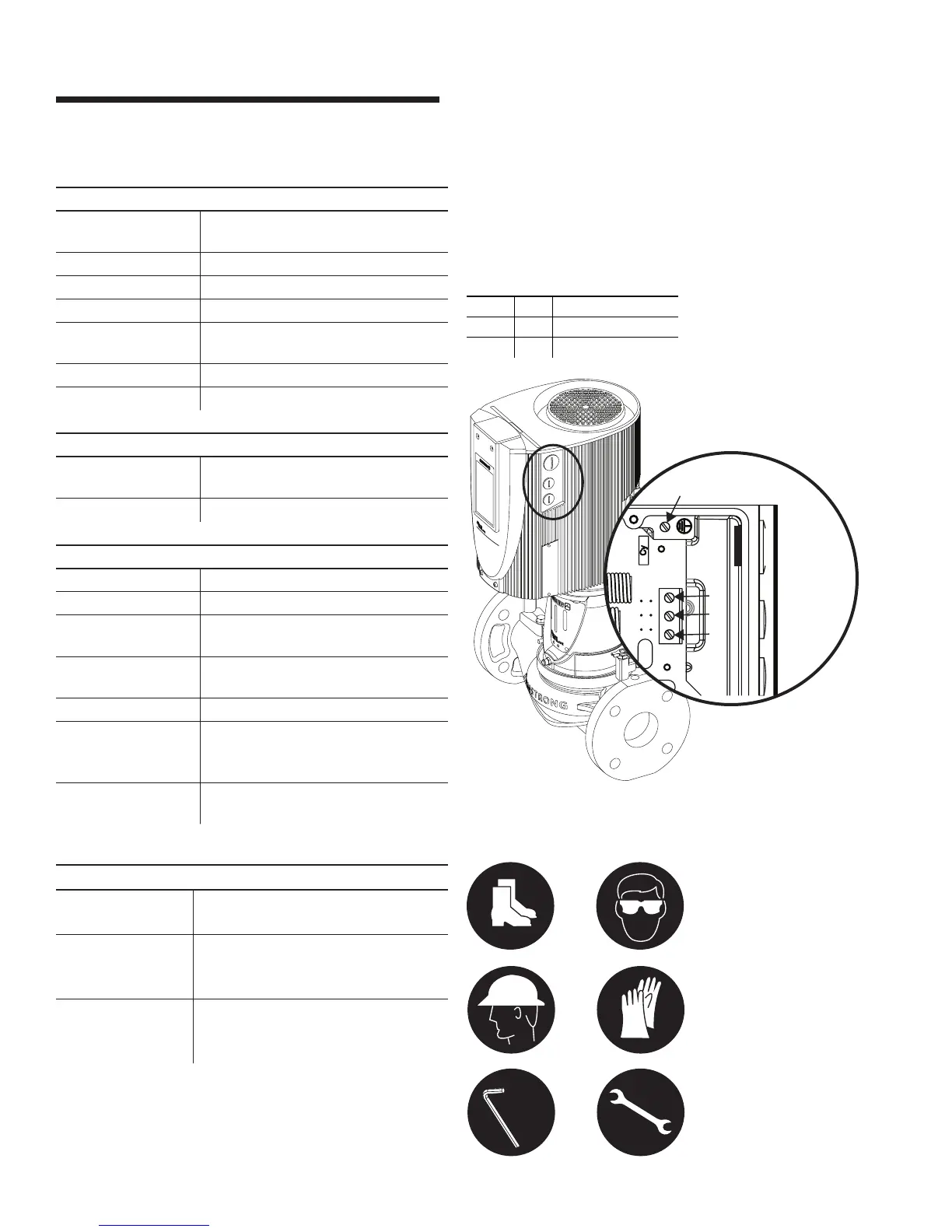

fig 2.3.1 Upper right corner of the motor. Use Access port #1
for power wiring and ground.
pin1 l1 l1 power supply
pin2 l2 l2 power supply
pin3 l3 l3 power supply
2.3.2 tools you will need
Access1
Access2
Ground
l3
Access1
Access2l2
l1
2.5 &
3 mm
