Armstrong 4380 - 2.4 Controller Wiring and Networking

installation &
operating instructions
Design Envelope 4300 & 4380
Vertical In-line Pumping Unit
15
2.3.8 supply fusing
Branch circuit protection
In order to protect the installation against electrical and fire
hazard, all branch circuits in an installation, switch gear, ma-
chines etc., must be short-circuit and over-current protected
according to the national/international regulations. Please refer
to section 8.0 (Fuse and wire recommendation).
Short circuit protection
The inverter must be protected against short-circuit to avoid
electrical or fire hazard. The frequency converter provides full
short circuit protection in case of a short-circuit on the motor
output.
2.4 design envelope pump controller wiring

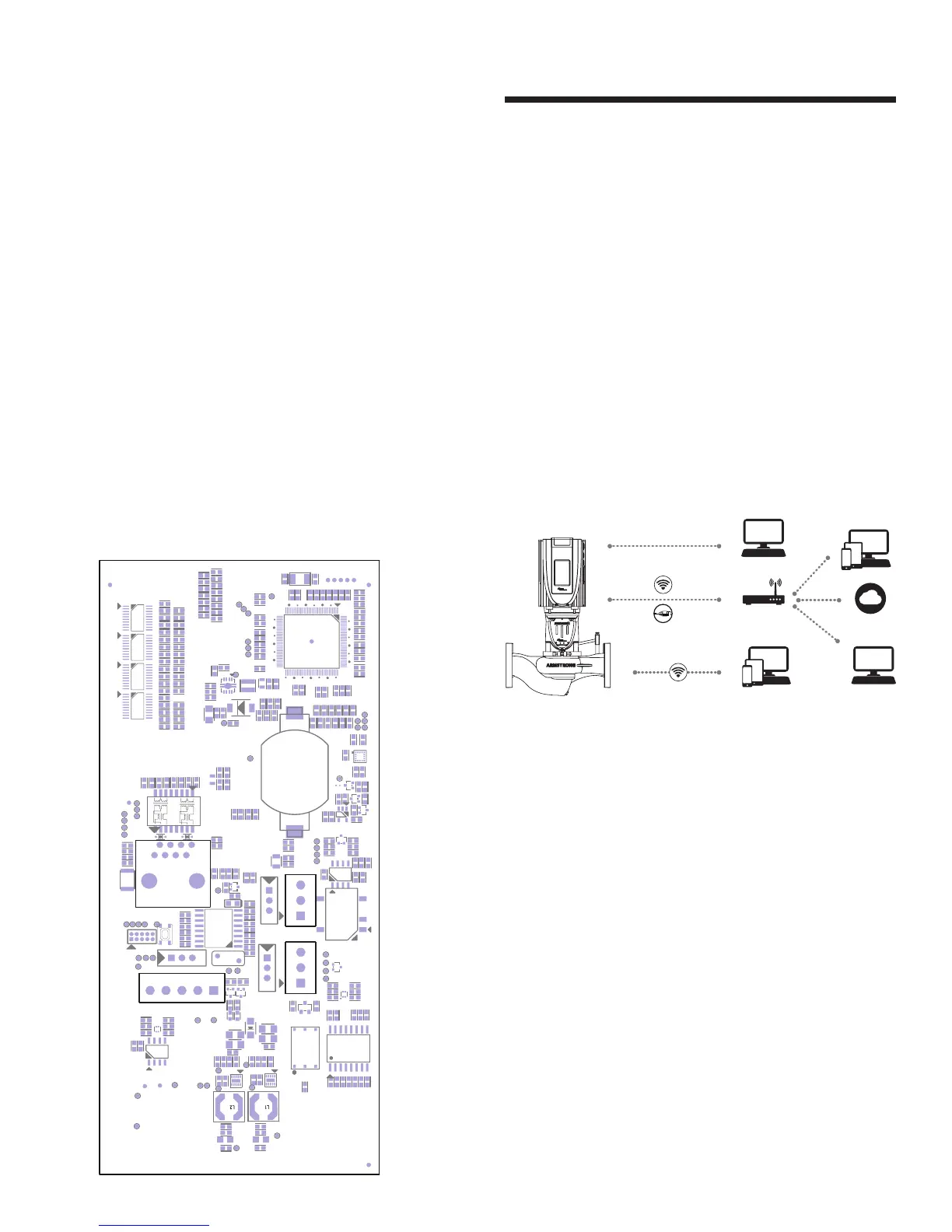

fig 2.4 Controller Board
2.4.1 rs 485 wiring
For Modbus rtu or BACNet ms/tp connection to building au-
tomation system, connect rs485 cable to this port per fig. 2.4
2.4.2 ethernet and wifi connectivity
For BACNet tcp/ip connection to building automation system,
connect connect rj-45 cable to this port per fig. 2.4
2.4.3 can bus wiring
Connections, Low, High, and Ground as per fig. 2.4
2.4.4 networking options
BAT
CAN
RS485
LHGBAG
EN
EN
EN
Ethernet
Motor control cable
rs-485
bms
bms
