Array electronic FAB Series User Manual

FAB I
ntelligent
C
ontrollerr

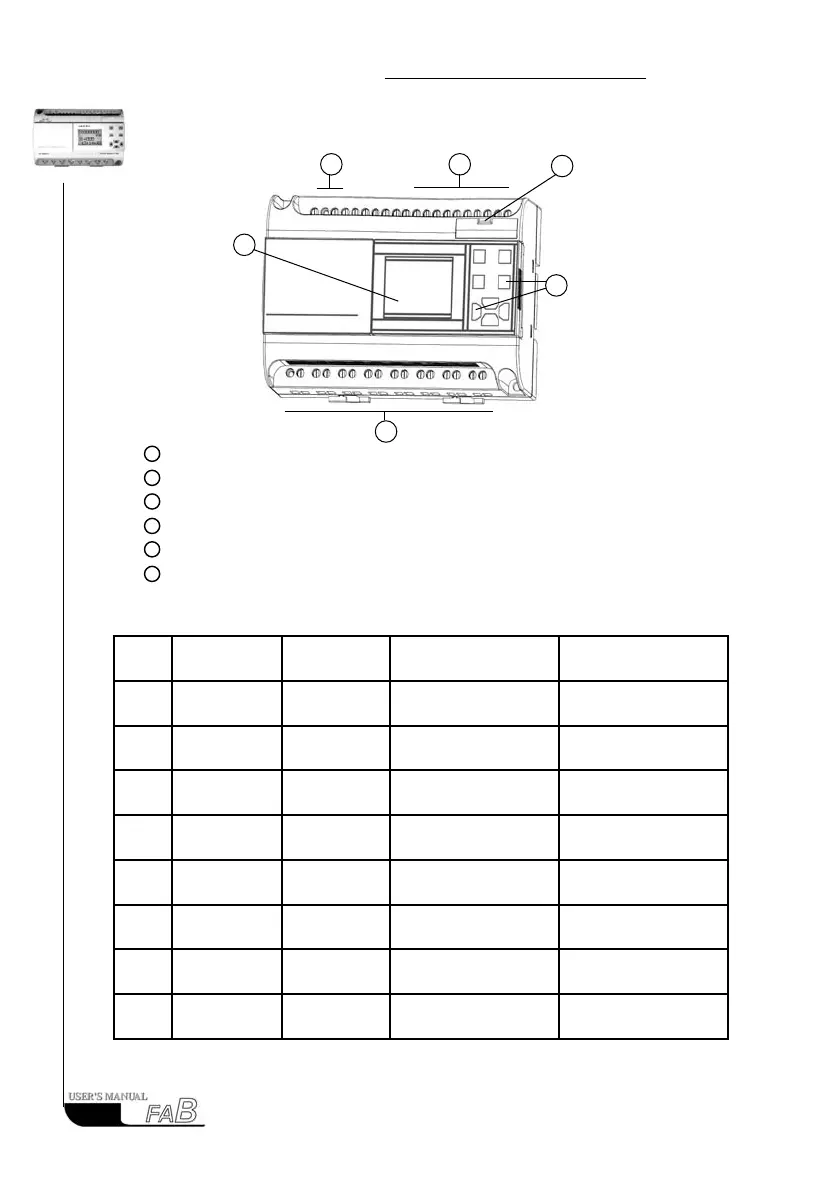

1 Power Terminals
2 Input ports
3 Communication interface
4 Operating keys
5 Output ports (Output of relays or transistors)
6 LCD display panel
1.2 Parameters and models
Item Type Power Input Output
1
AF-10MR-A AC100V-240V 6 points AC digital input 4 points relay output
2
AF-10MR-E
AC14-20V/
DC12-24V
6 points AC/DC digital
input
4 points relay output
3
AF-10MT-E DC12-24V 6 points DC digital input
4 points transistor output
(equivalent NPN)
4
AF-10MR-D DC 12-24V
6 points DC(with analog)
digital input
4 points relay output
5
AF-10MT-D DC12-24V
6 points DC (with ana-
log) input
4 points transistor output
(equivalent NPN)
6
AF-10MT-GD DC12-24V
6 points DC (with ana-
log) input
4 points transistor output
(equivalent PNP)
7
AF-20MR-A AC100V-240V
12 points AC digital in-
put
8 points relay output
8
AF-20MR-E
AC14-20V/
DC12-24V
12 points AC/DC digital
input
8 points relay output
AF-20 FAB series
2
2
6
1
3
4
5
