Array electronic FAB Series User Manual

C
hapter
II
I
nstallation and
W
iring

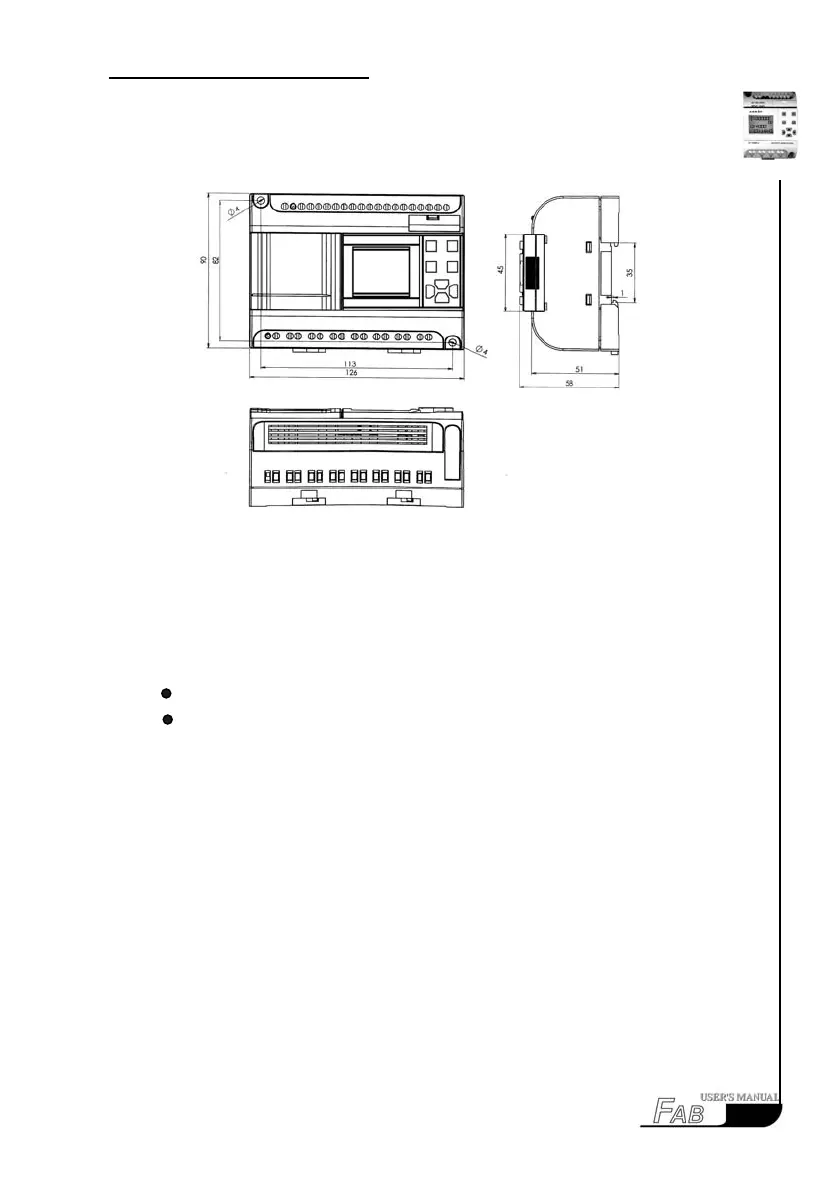

Fig. 2.4 AF-20 Series
2.2 Wiring of FAB
A screwdriver with a spade tip width of 3mm is needed for the wiring of FABs. As
for the cross section of a wire, the following two sizes are at choice :
1 x 2.5mm
2 x 1.5mm
2.2.1 Connection of power supply
1. For FABs like AF-10MR-A and AF-20MR-A, the rated power supply require-
ment is 100-240VAC, 50/60Hz.
2. For FABs like AF-10MT-E, AF-10MR-D, AF-10MT-D, AF-10MT-GD, AF-
20MT-E, AF-20MR-D, AF-20MT-D, AF-20MT-GD, the rated power supply re-
quirement is 12-24V DC.
3. For FABs like AF-10MR-E and AF-20MR-E, the rated power supply require-
ment is 14-20V AC/12-24V DC.
9
2
2
