FAB
I
ntelligent
C
ontrollerr
5.4 Recording
The recording function of Voice Module is similar to a recorder. There are two
methods for recording: on-line recording and manual recording.
A) Recording on line

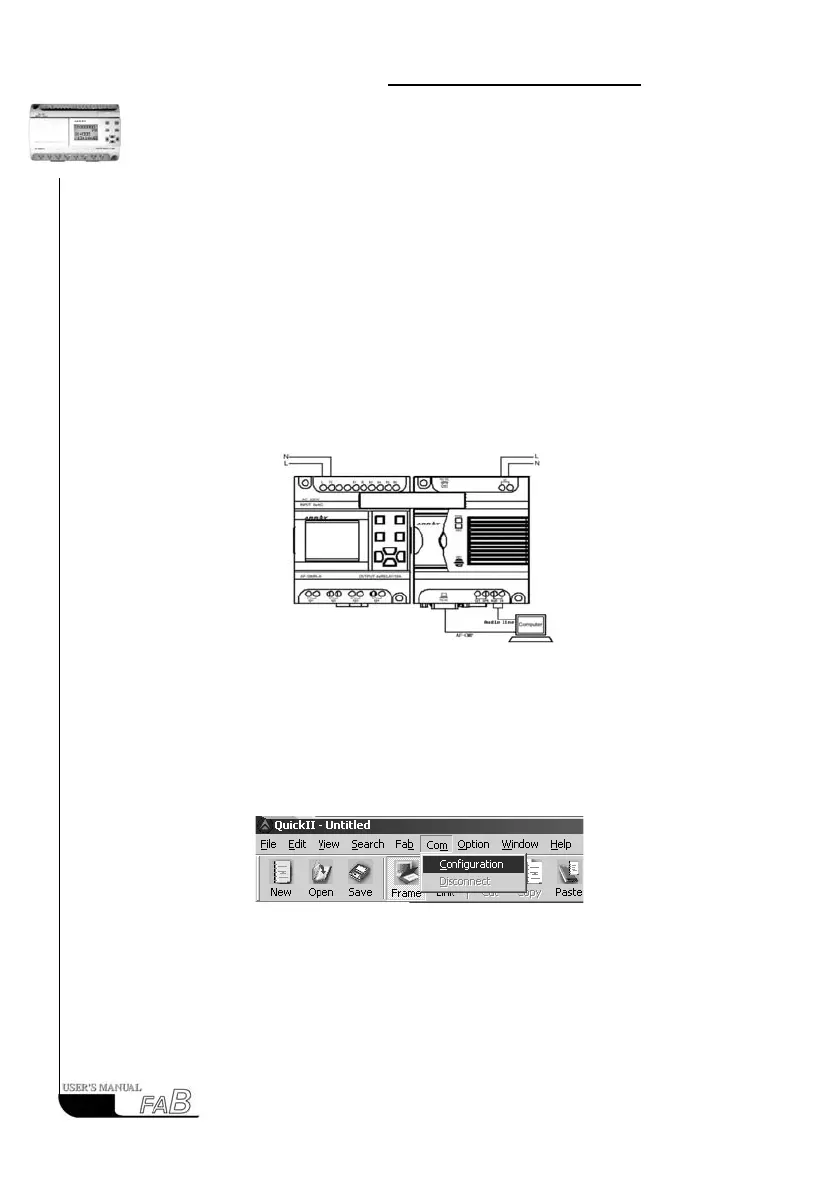

The rst step: Firstly, connect the Voice Module to FAB, then plug one terminal of
recording line into the PC, and plug the other into the recording port of the Voice
Module. Lastly, connect PC to the Voice Module via the cable AF-CMP as Fig.
5.4-1 shows:
Fig 5.4-1
The second step: power the FAB and the Voice Module simultaneously (it is also
OK to power the Voice Module and then FAB, but not reversed).
The third step: on the interface of QUICK II, click “Com→conguration” in order
to build a Connection between PC and FAB, as shown in Fig. 5.4-2.
Fig 5.4-2
The fourth step: on the interface of QUICK II, click “Option→ Set Voice Module
Type” to choose the length type of recording as Fig. 5.4-3 shows.
70
