C
hapter
V
T
he
V
oice
M
odule

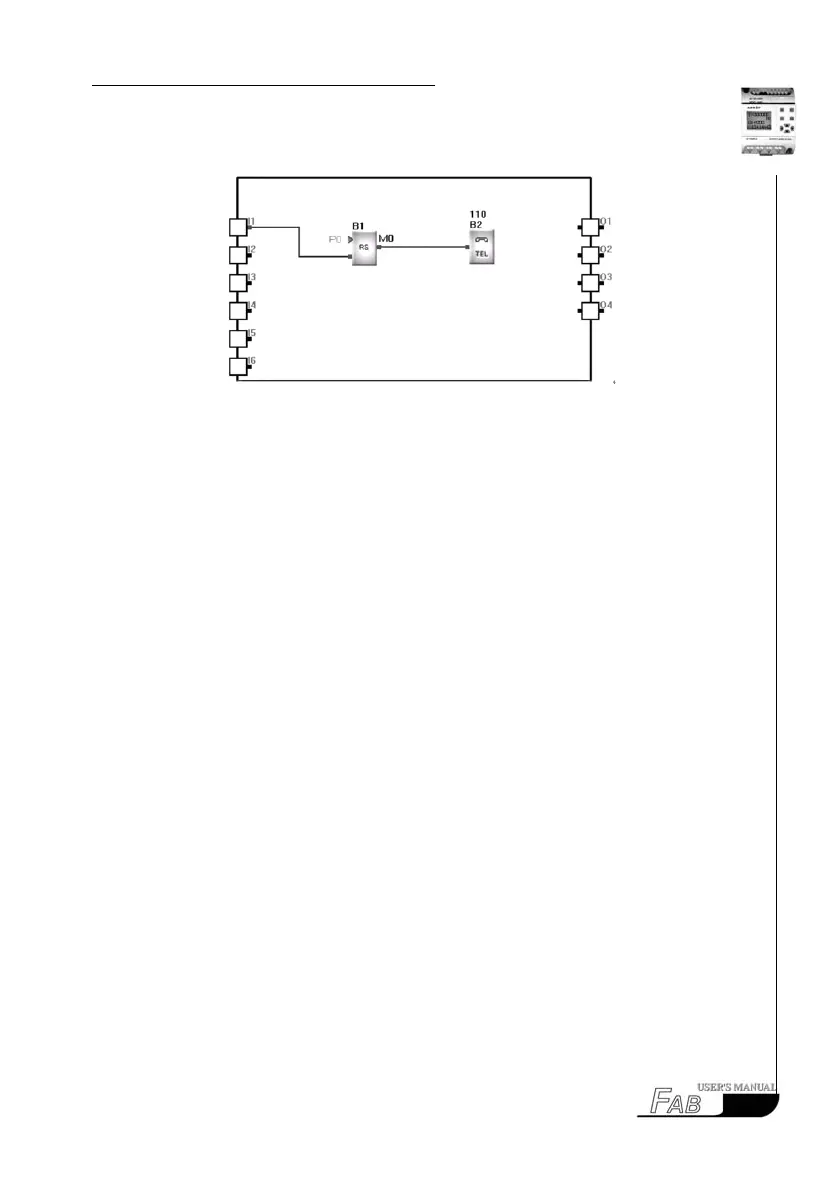

Fig. 5.10-1
5. Write your program into FAB
Description: when a thief breaks into your room, I1 is activated. At the same
time Voice Module auto-dials the police-calling number and broadcasts “thief
found in my house and enter *0 key to ring off” in the telephone. You need to
set the volume of indoor Voice Module to the lowest level in order for the thief
not to hear the sound.
5.11 Example for Voice Module
Control requirements:
1.Control start-stop of the air-condition by using telephone keys
P0: Open for the air-condition
P1: Close for the air-condition
2.At the entry of a stranger, Voice Module will broadcast “catch the thief” and
dial to your telephone number of 354678 at the same time.
Analysis: It isn’t necessary to set a password when dialing out but it is needed
to set a password so that other people are not able to operate the external tele-
phone dials into the Voice Module.
81
