Array electronic FAB Series User Manual

FAB I
ntelligent
C
ontrollerr

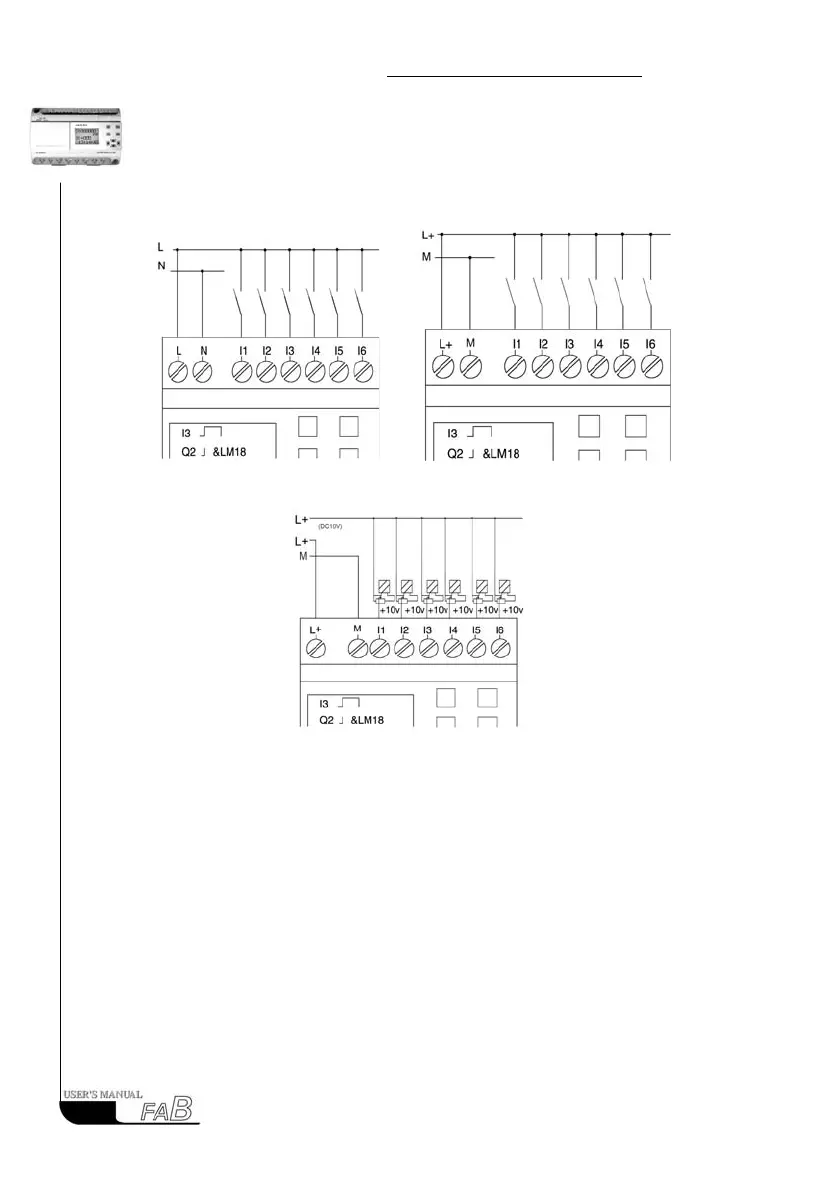

FAB input connection is shown as follows:
2.2.3 FAB output connection
Outputs of FABs like AF-10MR-A, AF-20MR-A, AF-10MR-D, AF-20MR-D,
AF-10MR-E and AF-20MR-E are relays whose contacts are separated from
the power supply and input ports; while the outputs of FABs like AF-10MT-E,
AF-20MT-E, AF-10MT-D, AF-10MT-GD, AF-20MT-D and AF-20MT-GD are
transistors.
1. Requirements for the relay outputs
Various loads such as lamps, uorescent tubes, motors, contactors, etc., can be
connected to the outputs of FABs. The maximum currency of turn-on outputs
supplied by a FAB is 10A for the resistance load and 2A for the inductive load.
Fig 2.9 AC(D/GD Type)
Fig 2.7 AC Type
Fig 2.8 DC Type(E Type)
12
