Array electronic FAB Series User Manual

FAB I
ntelligent
C
ontrollerr

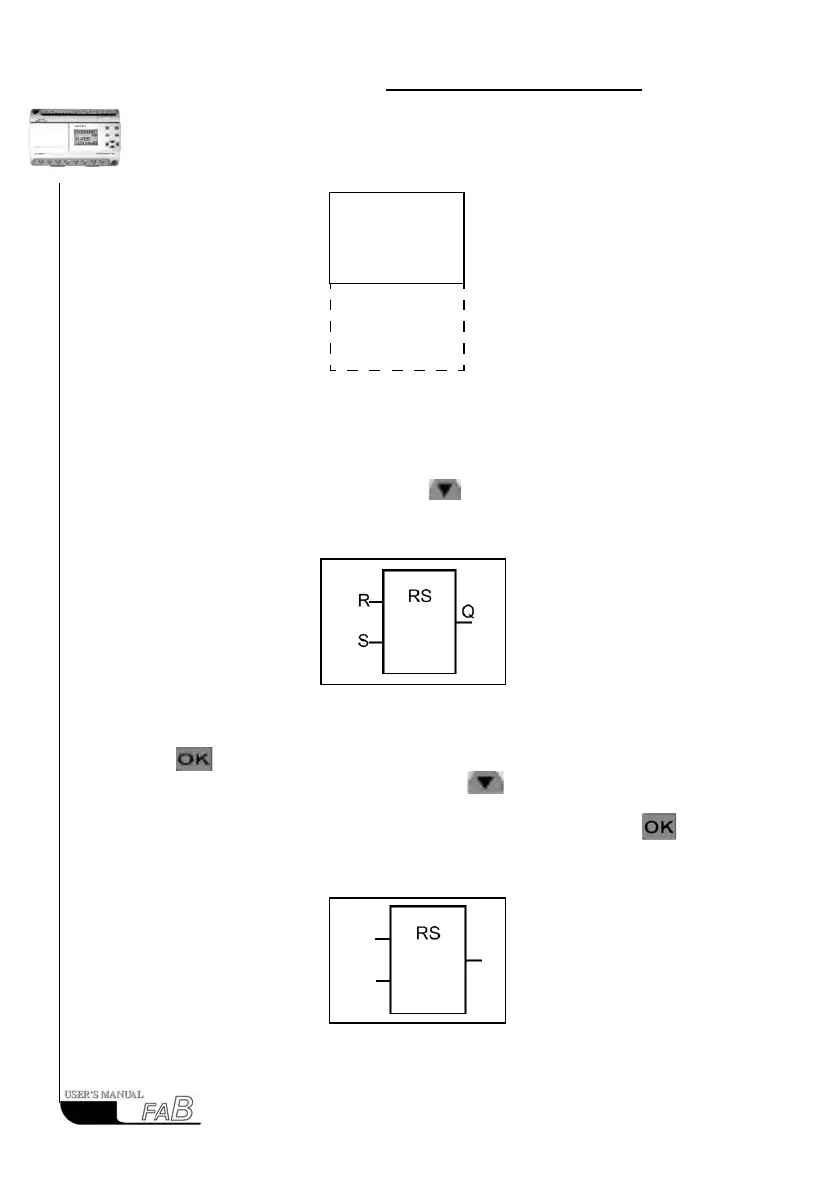

2. Select and set the rst function block:
Move > to the position of RS relay with
and press OK to enter the Function
Block Set Status with the cursor at the top input Link. The following will be on
LCD panel:
Fig. 4.30
Press to enter the Set Parameter R Pin. Now “I” will appear at R Pin. If
you do not want to select “I”, you may press
to select Q and press it again
to select H. You can continue this pressing until M, which means that the user
may select any parameter among I, Q, H, L, C, P and M by pressing
. After
“I” is selected, the following will be on the LCD panel:
Fig. 4.31
>AND
NAND
OR
NOR
NOT
XOR
.
.
.
.
>RS
Fig. 4.29
58
I1
S
Q
B01
B01
