Touchstone DG1670 Data Gateway User’s Guide

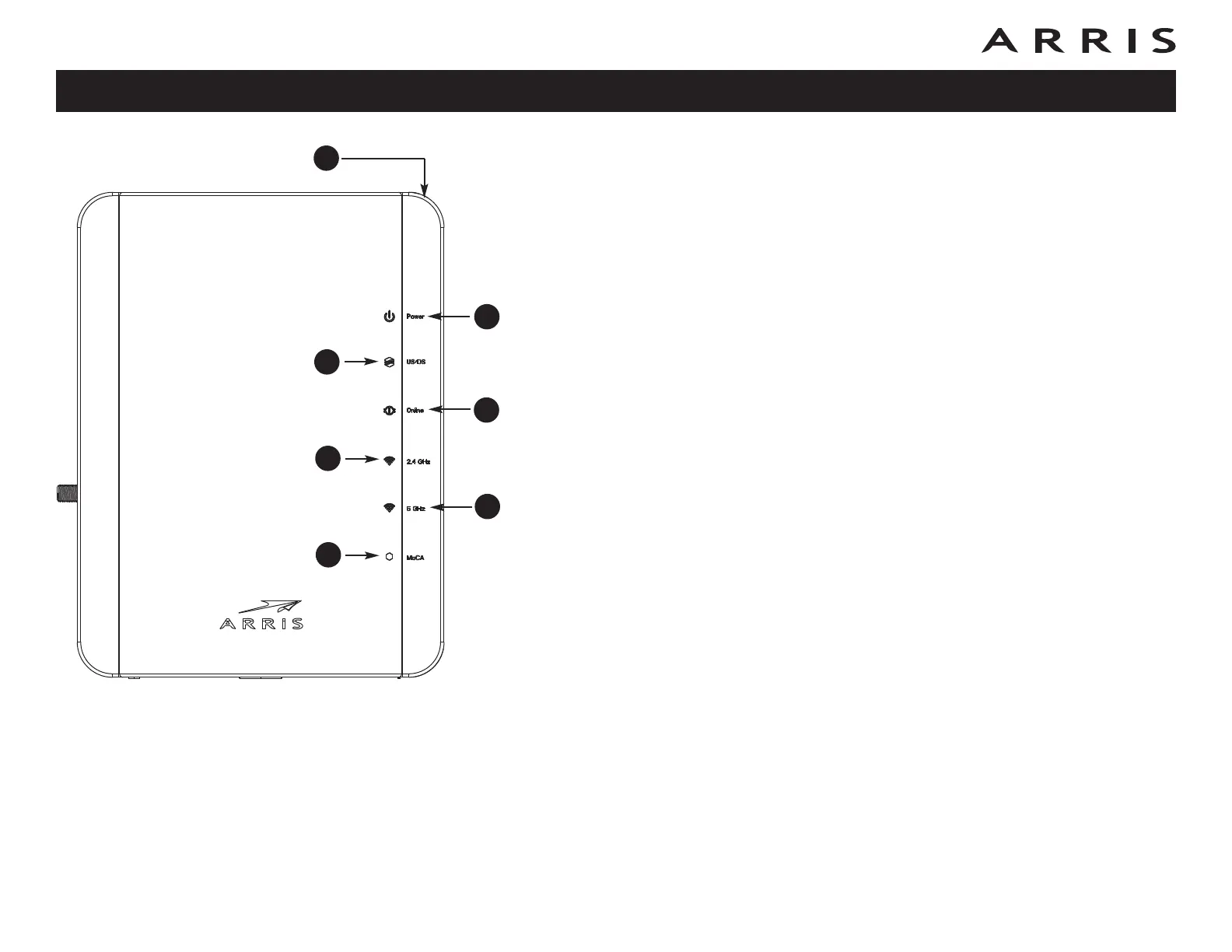

Front Panel
The front of the Data Gateway has the following indicators:
A WPS Button/LED: begins associating the Telelphony Gateway with a wire-
less device. LED indicates Wireless Protected Setup (WPS) is active.
B Power: indicates whether AC power is available to the unit.
C US/DS: indicates upstream/downstream connectivity.
D Online: indicates internet data transmission status.
E 2.4 GHz: indicates the status of the 2.4 GHz wireless LAN.
F 5 GHz: indicates the status of the 5 GHz wireless LAN.
G MoCA: indicates connectivity between the Telephony Gateway and other
home devices connected via the MoCA network.
