Arris Touchstone DG1670 - Rear Panel Connectors and Controls

Rear Panel

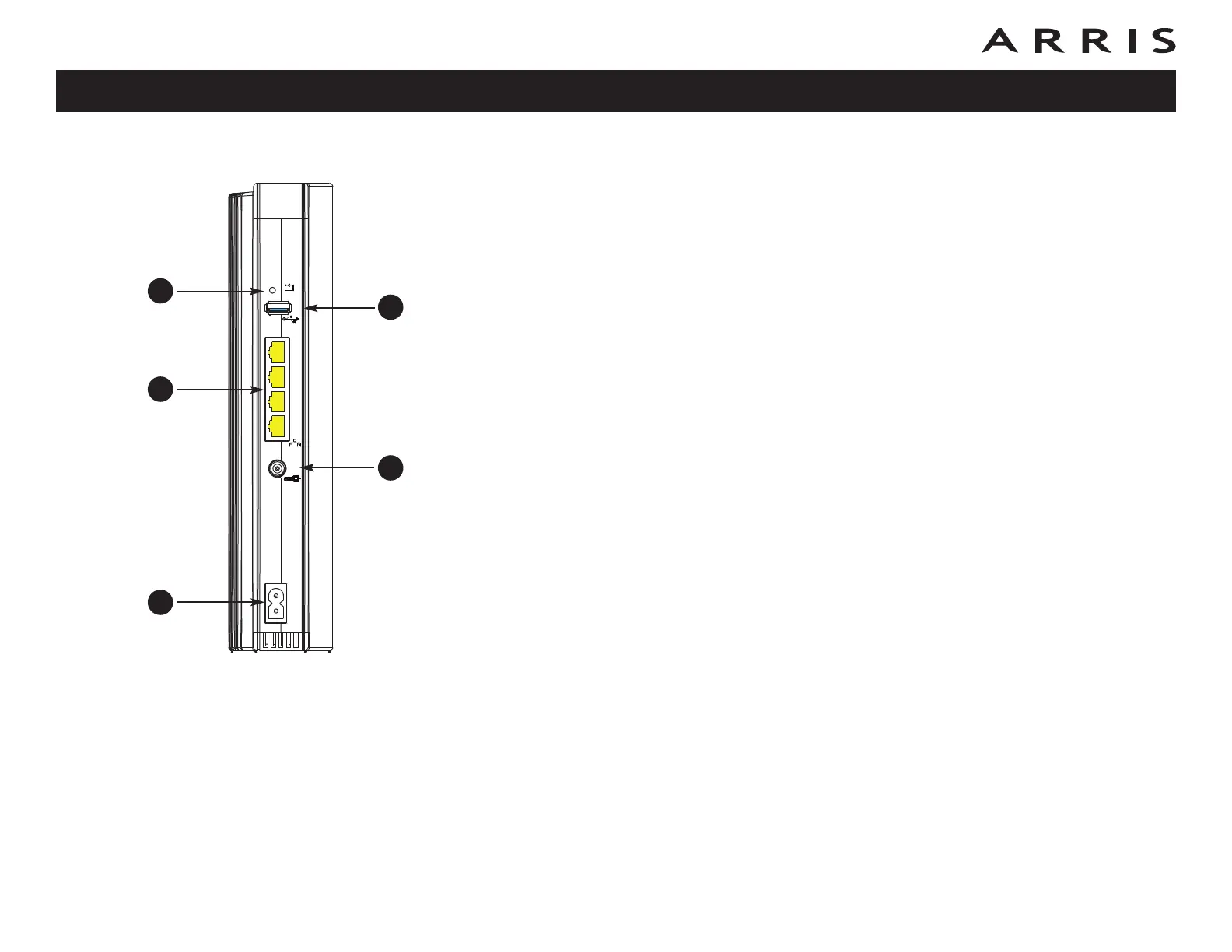

The rear of the Data Gateway has the following connectors and controls:
A Reset button: resets the Data Gateway as if you power cycled the unit. Use
a pointed non-metallic object to press this button.
B USB: USB host connector - future support for external USB devices
C Ethernet (1 - 4): connectors for use with a computer LAN port.
D Cable: connector for the coaxial cable.
E Power: connector for the power cord.
Touchstone DG1670 Data Gateway User’s Guide
Safety
Getting
Started Installation
Ethernet
Configuration Usage Troubleshooting Glossary
16
Cable
Reset
U
SB
1
2
3
4
E
thernet
1
0/100/1000
A
C
B
D
E
