Arthrex SynergyRF AR-9800 Service Guide

Product Drawings and References
Synergy
RF™
System Service Guide
DFU-0276-4r0_fmt_en-US Page 9 of 50
2.3 Product Layout
2.3.1 AR-9800 Console - Front View

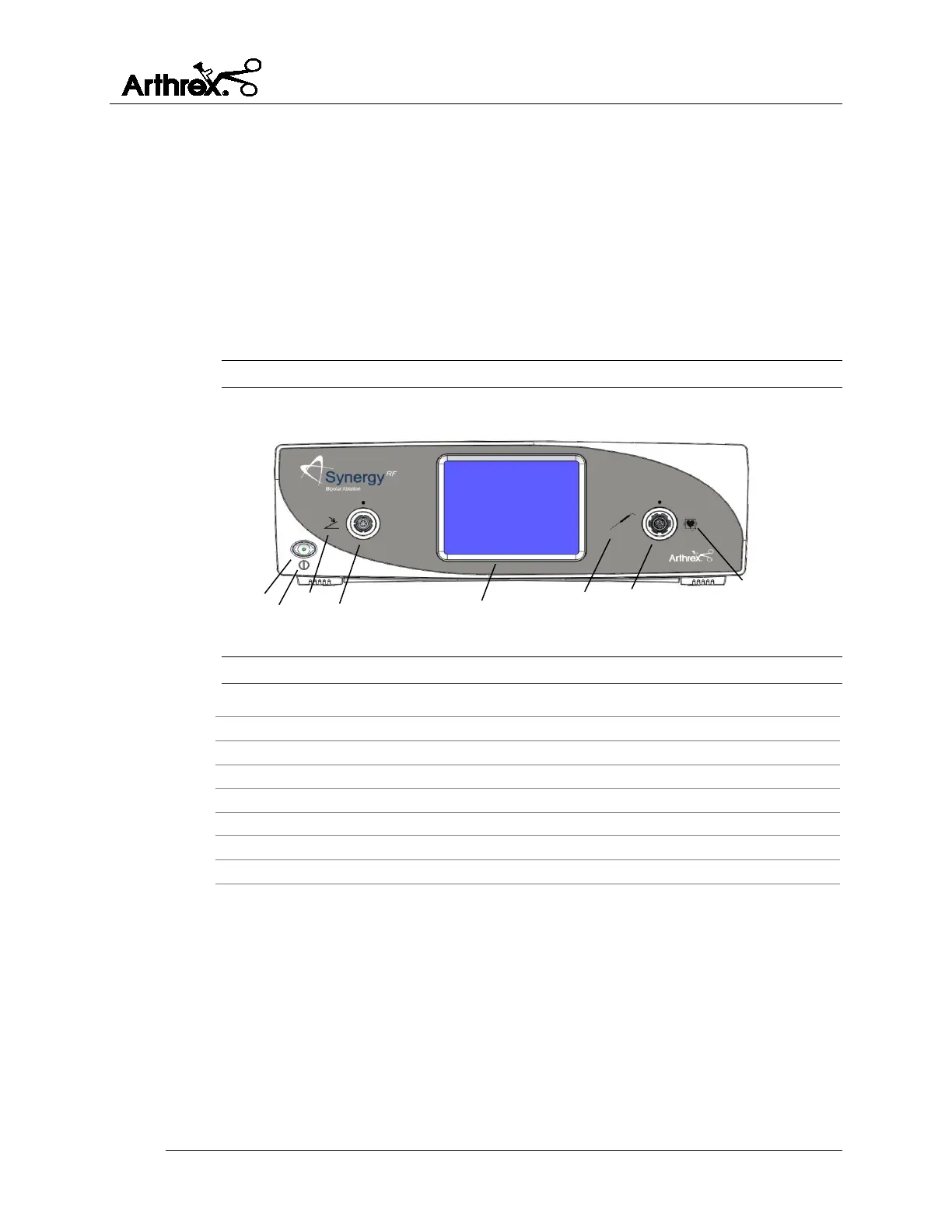

Figure 2 shows the front panel of the AR-9800 console. The features and symbols
are identified in Table 2 below.
Figure 2 Front Panel of Console
Table 2 Front Panel Elements
1.
On / Off Power Switch
2.
Power Switch IEC 60417-5010 symbol (On / Off)
3.
Footswitch Symbol
4.
Footswitch Connector
5.
Touch Screen Display
6.
Handpiece Symbol
7.
Handpiece Connector
8.
Type CF Applied Part Symbol (Cardiac Floating)
1
2
4
7
6
5
3
8
