Page 2-4
Installation
10BaseT Station to Hub Connection
Do the following steps to connect a 10BaseT Ethernet station to a hub.
1
Make sure the straight-through modular cable distance between
the hub and the stations is not greater than 100 meters, including
all patch cables and cross-connect wires.
2
Connect one end of the straight through modular cable to any
RJ45 port on the hub (except for the OUT port) and another end
of the modular cable to the workstation, as shown in Figure 2-2.

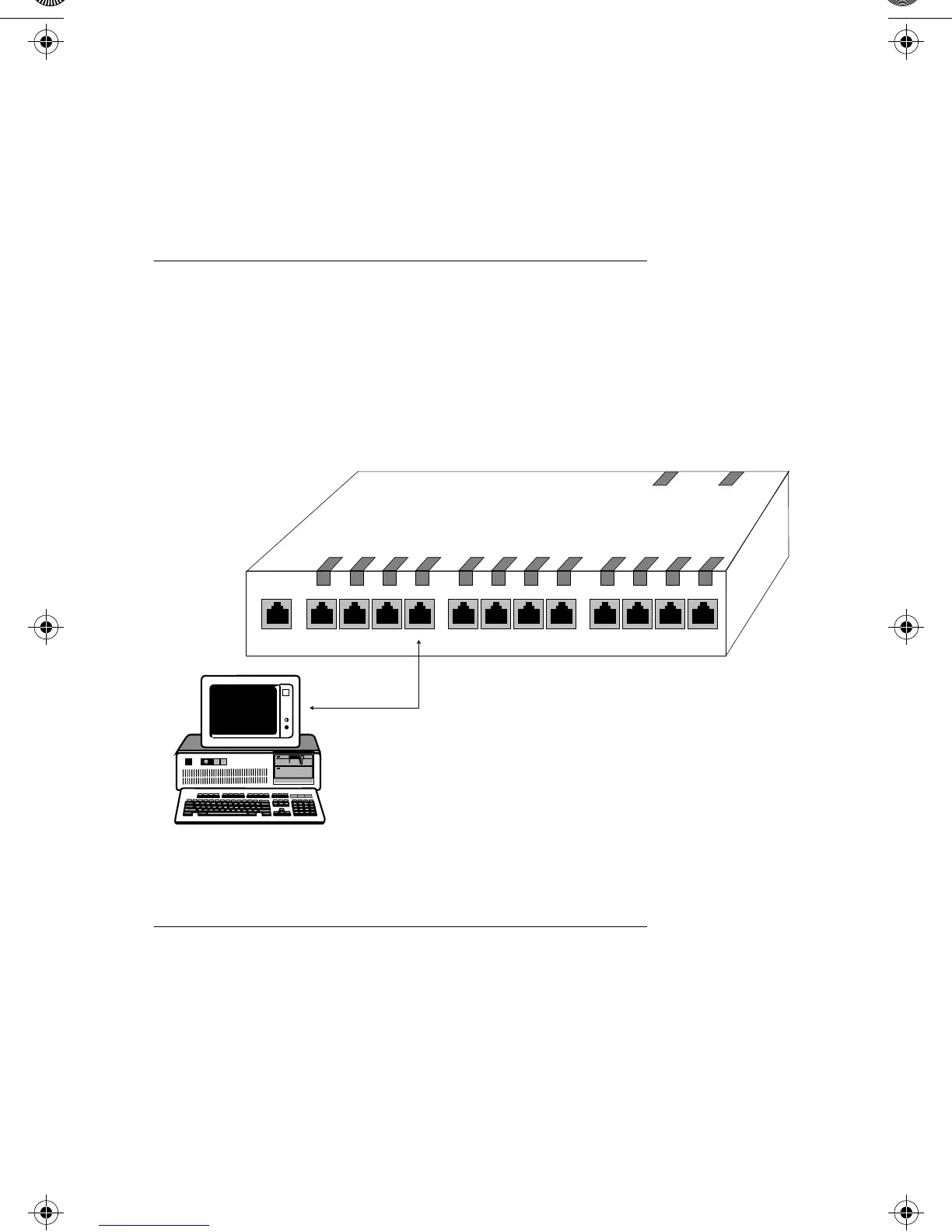

Figure 2-2 10BaseT Workstation to Hub Connection
Straight through cable
Station
10T Hub Ch 2 Page 4 Thursday, August 22, 1996 4:25 PM
To Next Page
