RJ45 Connector

Table A-1 RJ45 Connector Wiring Description

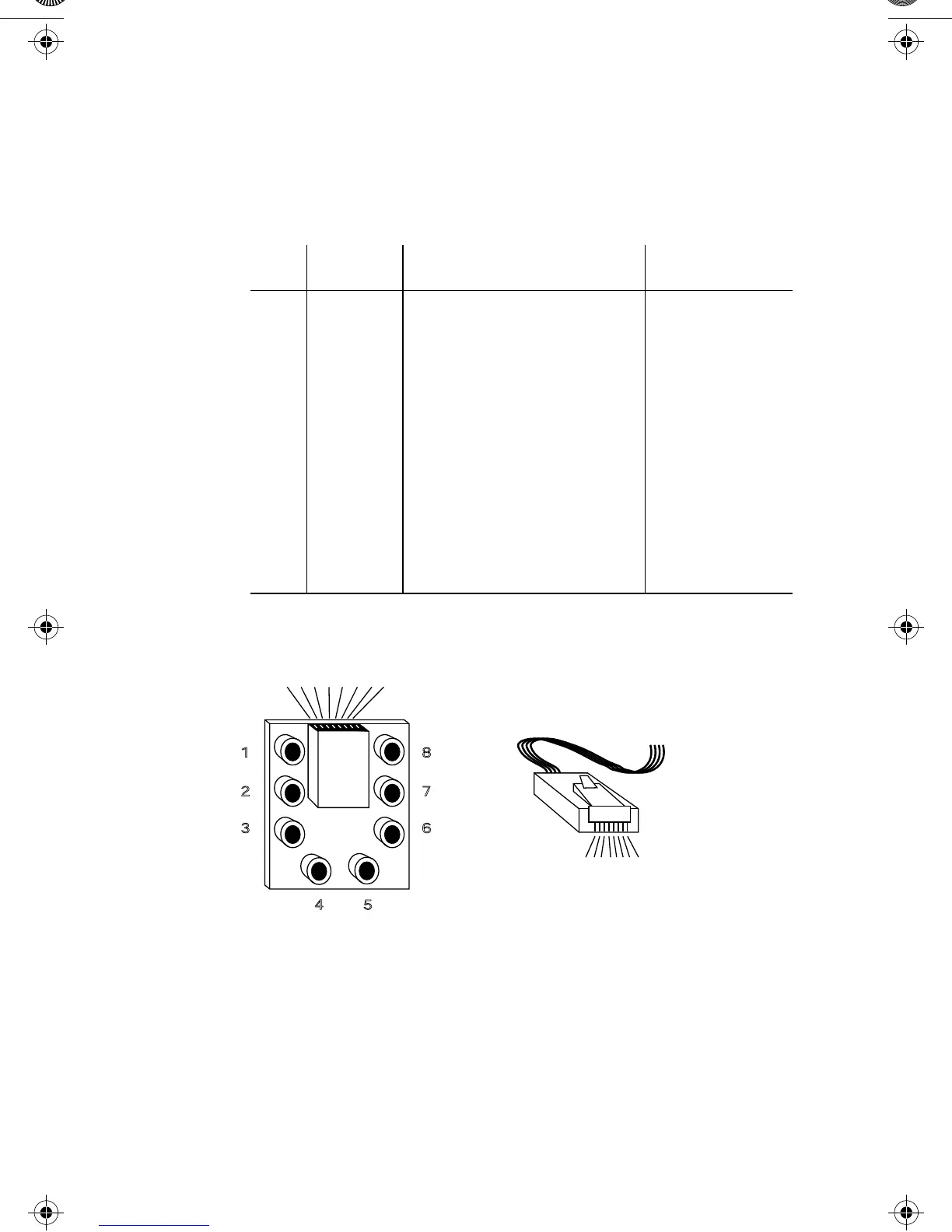

Figure A-1 RJ45 Connector

Pin Symbol Function Signal Type

1 TD+ Transmit Data Plus Output

2 TD- Transmit Data Minus Output

3 RX+ Receive Data Plus Input

4 NC No Connection

5 NC No Connection

6 RX- Receive Data Minus Input

7 NC No Connection

8 NC No Connection

1 2 3 4 5 6 7 8

4 5

RJ45

12345678

RJ45 Jack PinoutsPunchdown Block Pinouts
