Page A-3
AUI (DB15) Connector
AUI (DB15) Connector
Table A-2 AUI Wiring Description

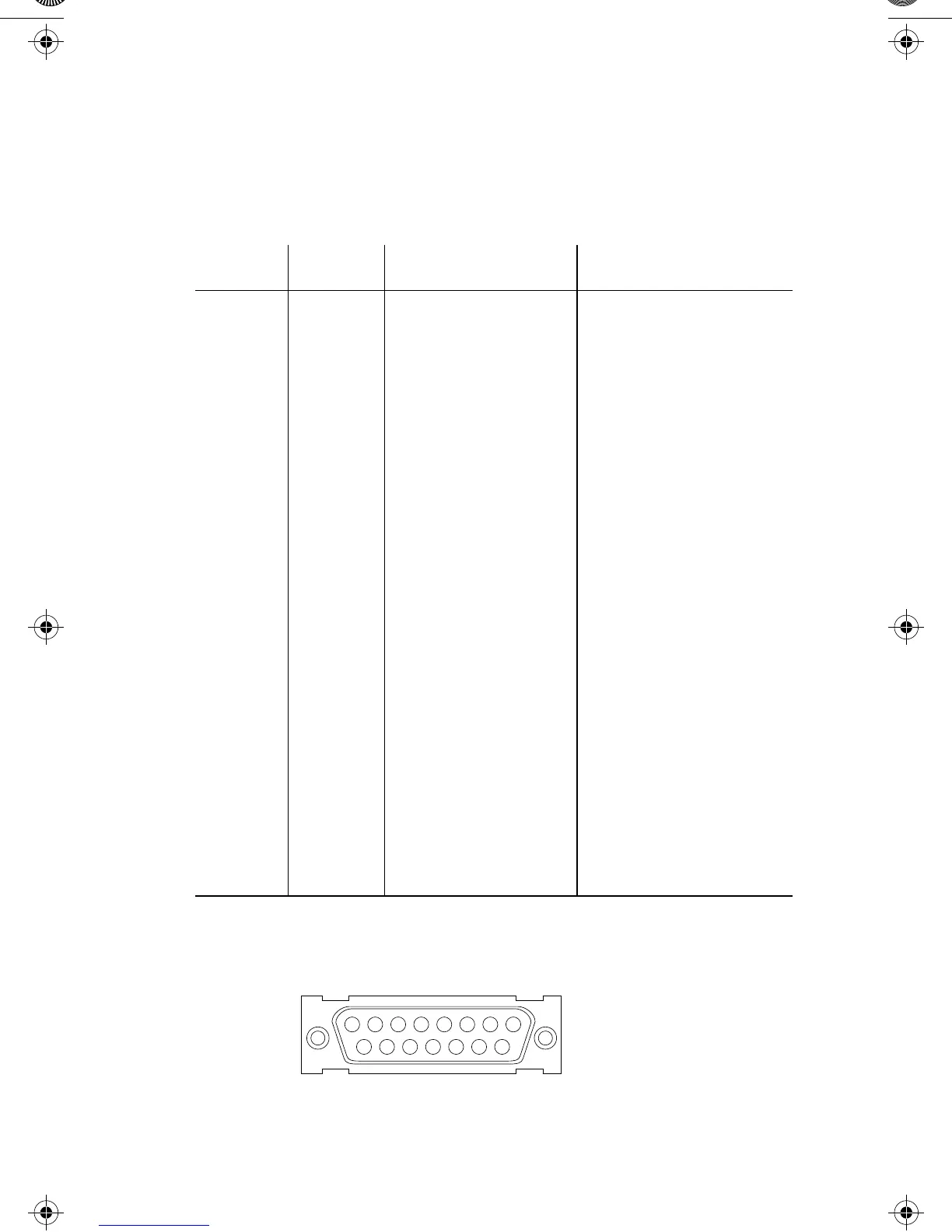

Figure A-2 AUI (DB15) Female Connector
Pin Symbol Pairs Used
3 DO+ Transmit Data Out +
10 DO- Pair Data Out -
11 DO S Data Out Shield
5 DI+ Receive Data In +
12 DI- Pair Data In -
4 DI S Data In Shield
7 NC Not Connected
15 NC Not Connected
8 NC Not Connected
2 Cl+ Collision Control In +
9 Cl- Pair Control In -
1 Cl S Control Shield
6 VC Power Voltage Common
13 VP Pair Voltage Plus
14 VS Voltage Shield
Shell PG Protective Ground
8
15
7654321
1413121110 9
10T Hub App A Page 3 Thursday, August 22, 1996 4:21 PM
