4. Installation and Configuration

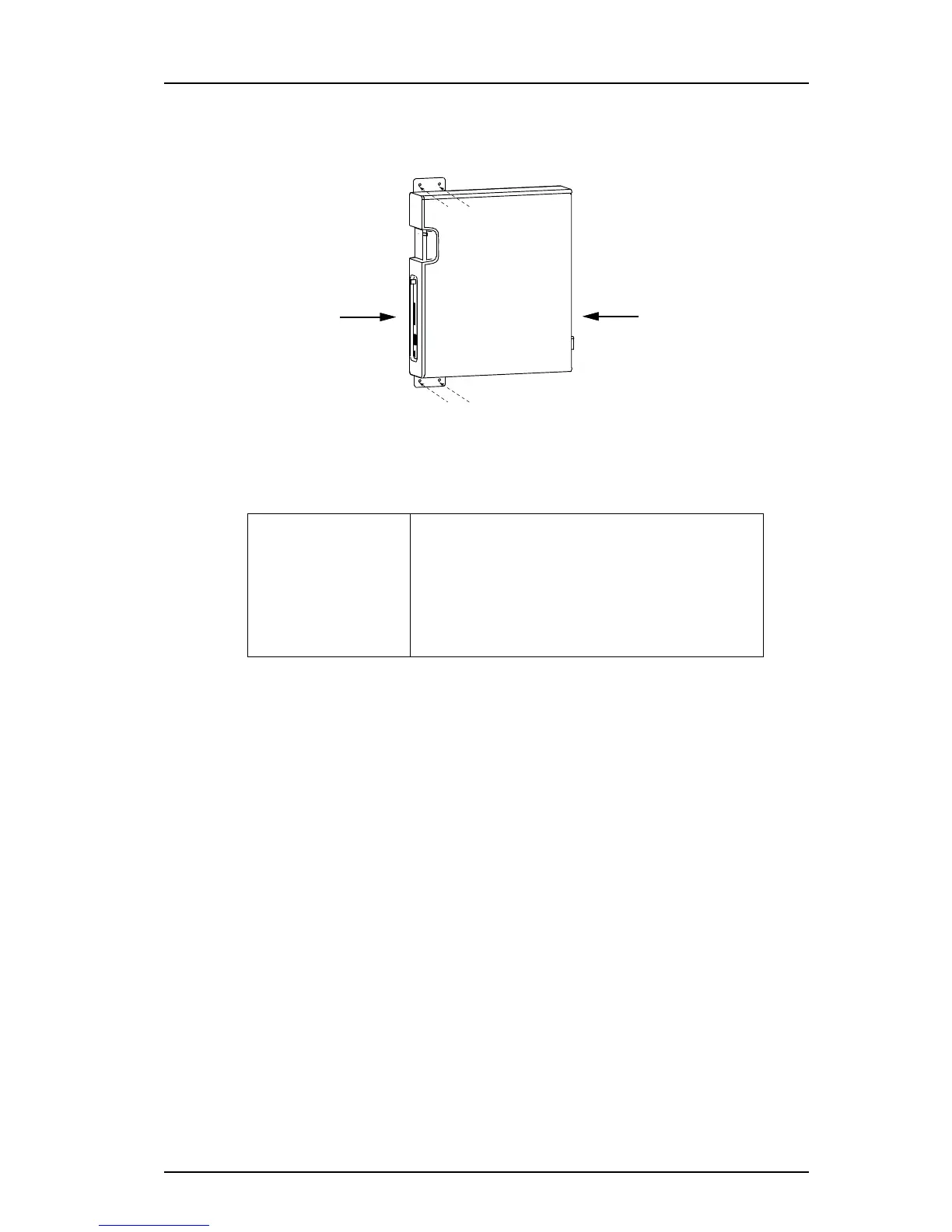

Figure 6. Mounting on a wall
4.1.4 Rack Mounting
The Elise3 can be either front mounted or reverse mounted i
n a 19” rack. Accessories for
mounting in a rack (ordered separately).
NOTE: Screws for fastening the assem
bly brackets in the rack are not included in the
delivery.
Front mounted single
Front mounting a single Elise3 requires th
e standard 19´´ rack kit.
Item No. Rack
660324 Standard 19” rack kit:
Small left/right brackets for two front mounted Elise3
and one big bracket for one front mounted hardware.
660325 Reverse 19” rack kit:
Small left/right brackets for two reverse mounted Elise3
and one big bracket for one reverse mounted Elise3.
