4. Installation and Configuration

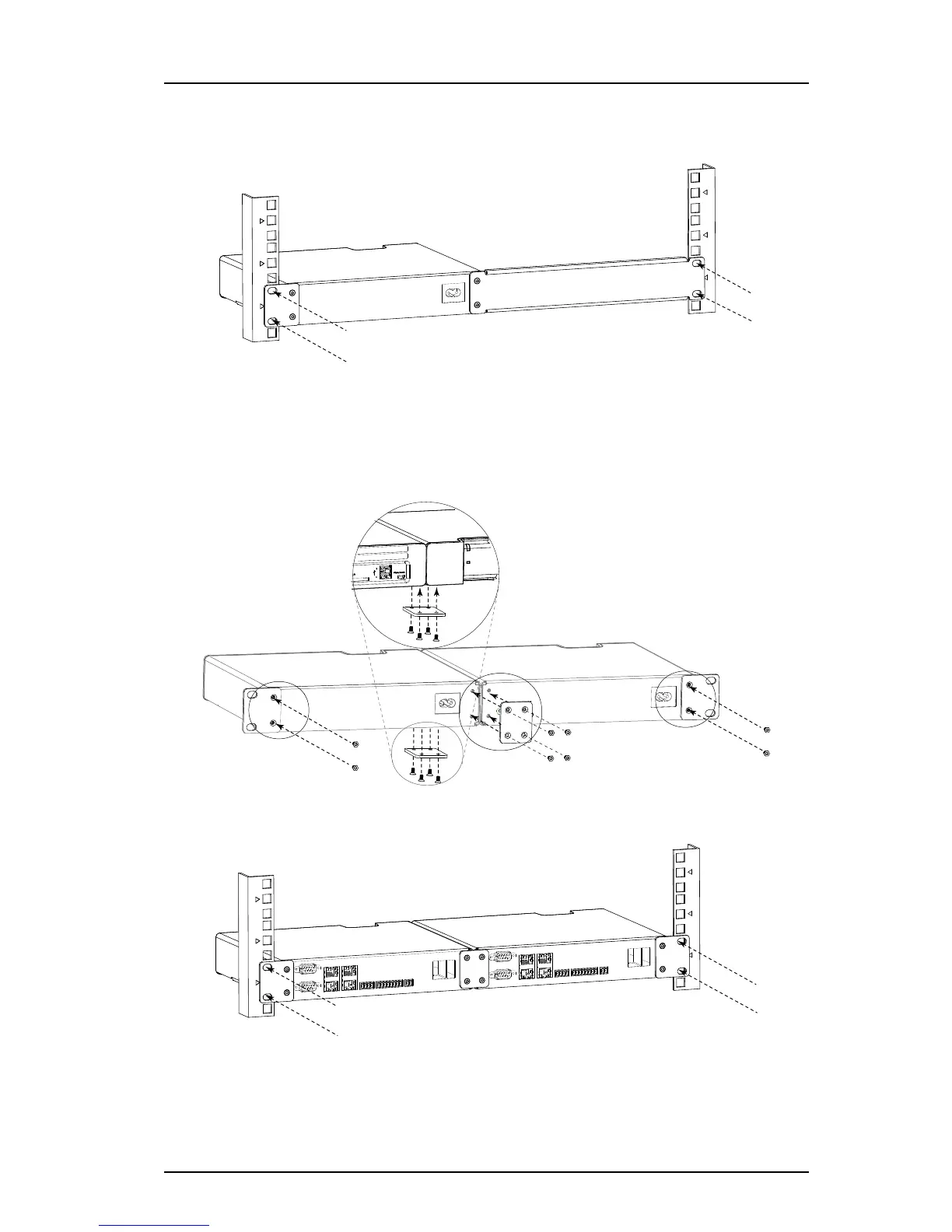

2 Fasten the assembly brackets in the rack as shown in the figure below (screws not
included).
Rear mounted double
Rear mounting of double
Elise3 require the reverse 19” rack kit.
1 Use the supplied assembly brackets and mount the two
Elise3 together, both on the
rear side and on the bottom side as shown in figure below.
2 Use the two small reverse assembly brackets and fasten one on the right rear side
and the other on the left rear side.
