4. Installation and Configuration
2 Use the two small standard assembly brackets and fasten one on the right front side
and the other on the left front side.

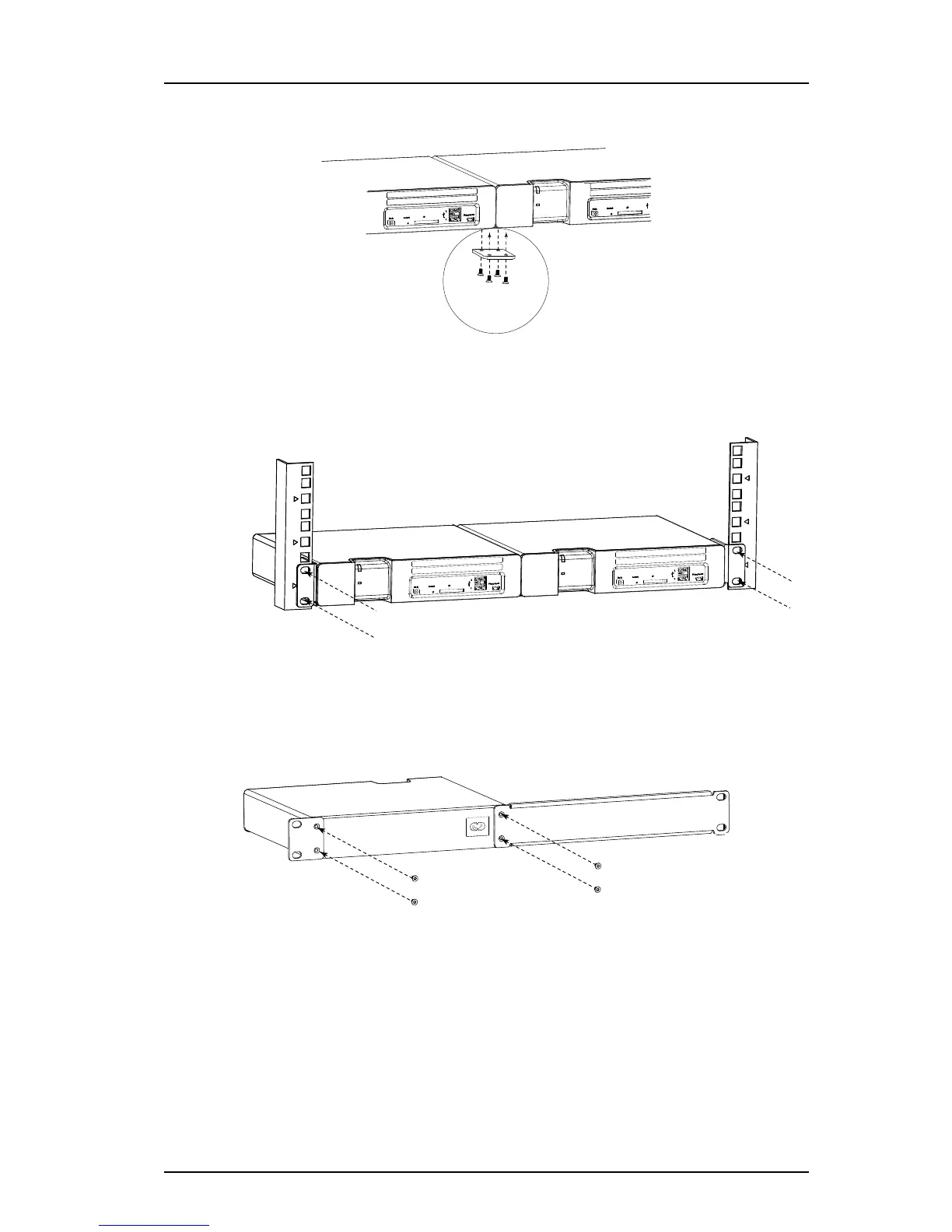

3 Fasten the assembly brackets in the rack as shown in figure
below (screws not
included).
Rear mounted single
Rear mounting of single an Elise3
requires the reverse 19” rack kit.
1 Fasten the big assembly bracket on the right si
de of the Elise3 and the small
assembly brackets on the left side, as shown in the figure below.
