The Ergonomic Pro-Pack has two pouches on the hip belt, either of which can
be used to hold the battery. However, the battery should be on the opposite
side from where the Fiberoptic cable will be.
Insert power (battery or power supply) into the receptacle on the back panel
labeled “INPUT 12
VDC 60 WATT”. Lock the connector in place by
twisting the barrel end of the connector clockwise.

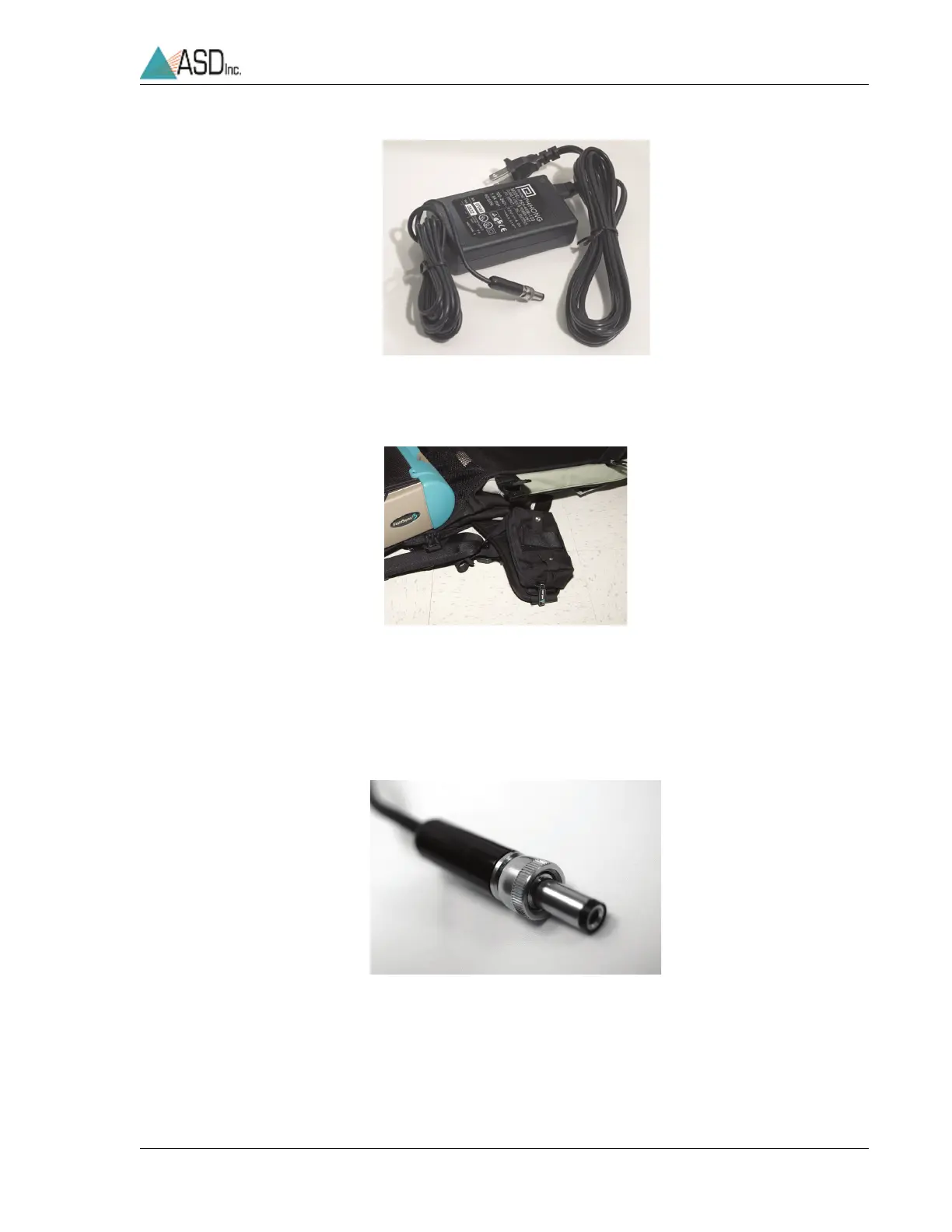

Figure 2-7 FieldSpec spectroradiometer power supply and cables.
Figure 2-8 Portable battery pack (one on each side of hip belt)
Figure 2-9 FieldSpec spectroradiometer power connector which plugs into the
instrument.
