ASD Document 600540 Rev. J 21 FieldSpec® 3 User Manual
www.asdi.com Chapter 2 Setup
2.6 External Trigger
An external trigger is standard with the FieldSpec spectroradiometer.
The LEDs on the trigger are bright enough to be seen even on a sunny day.
The LEDs are lit up when the trigger is pushed (briefly) and will turn off when
the capture is complete. Figure
2-19 shows the trigger switch with its LEDs.
The trigger plugs into the spectroradiometer near the Fiberoptic cable, as
shown in Figure
2-20.

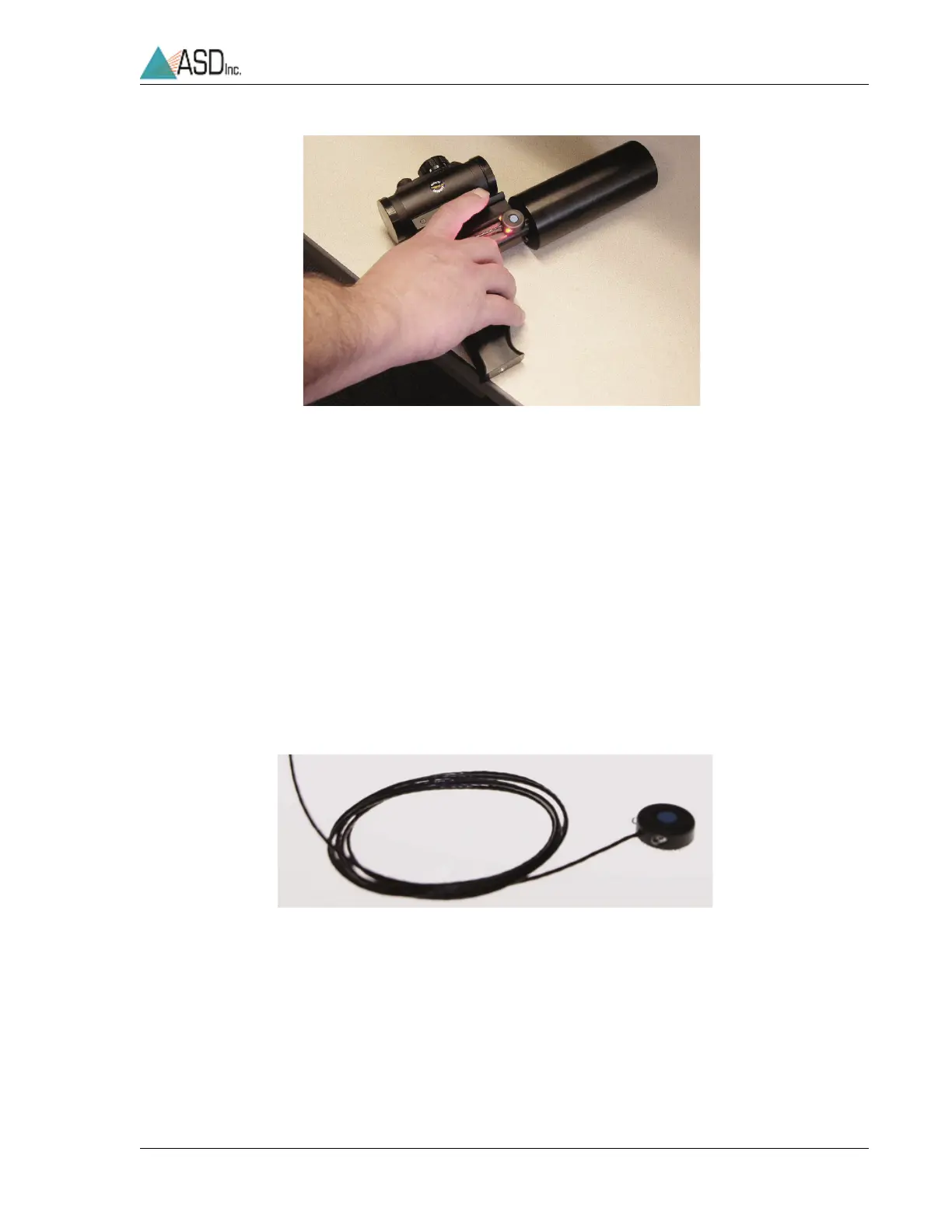

Figure 2-18 Pistol grip with red-dot scope (sold separately), one degree
field-of-view (sold separately), and trigger (standard) attached.
Figure 2-19 External trigger
