ASD Document 600540 Rev. J 22 FieldSpec® 3 User Manual
www.asdi.com Chapter 2 Setup
The trigger comes with several pieces of mated velcro, which are intended for
use with several accessories. Place a piece of hook velcro onto the trigger;
place pieces of mesh velcro onto the accessories, as shown in Figure
2-21.
Note: Accessories such as the pistol grip should have pieces of mesh velcro placed
on both sides so that the trigger can be used right- or left-handed.

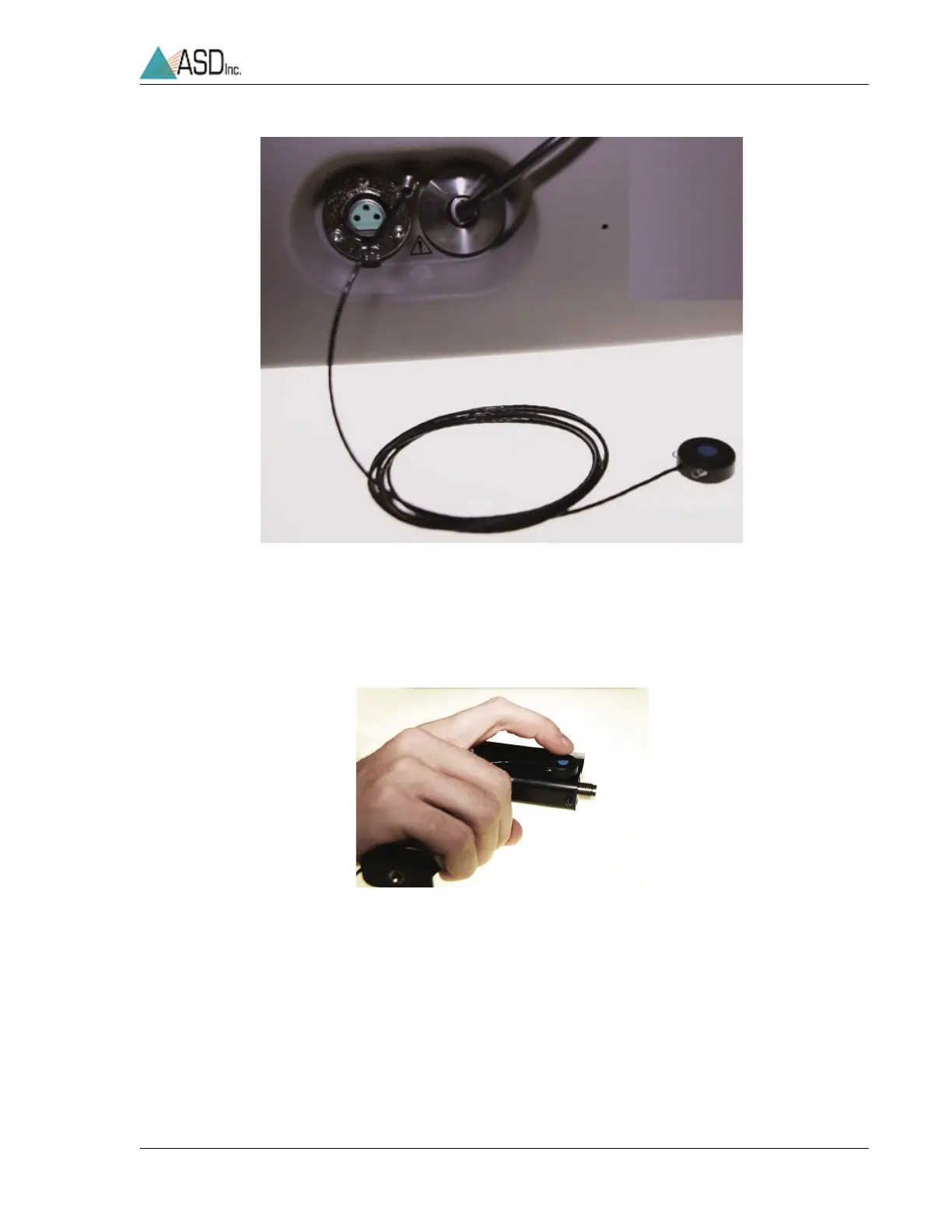

Figure 2-20 External trigger cable plugged into the FieldSpec spectroradiometer.
Figure 2-21 The trigger and the Pistol Grip.
