ASD Document 600540 Rev. J 17 FieldSpec® 3 User Manual
www.asdi.com Chapter 2 Setup
2.4 Accessory Power Port
The accessory power port is located on the front of the unit, as shown in
Figure
2-12. This port is where external accessories, such as the Contact
Probe or Source Probe attach to receive power from the spectrometer.
The accessory power port is provided for optional ASD approved accessories.
Attach the large connector end of the cable into the accessory power port of
the front panel. Attach the other end of the power cable into the Contact
Probe, Hi-Brite MugLite, or other ASD approved accessory.
Please contact ASD for information about these accessories.
WARNING! Never attempt to use unauthorized accessories on the
accessory power port.

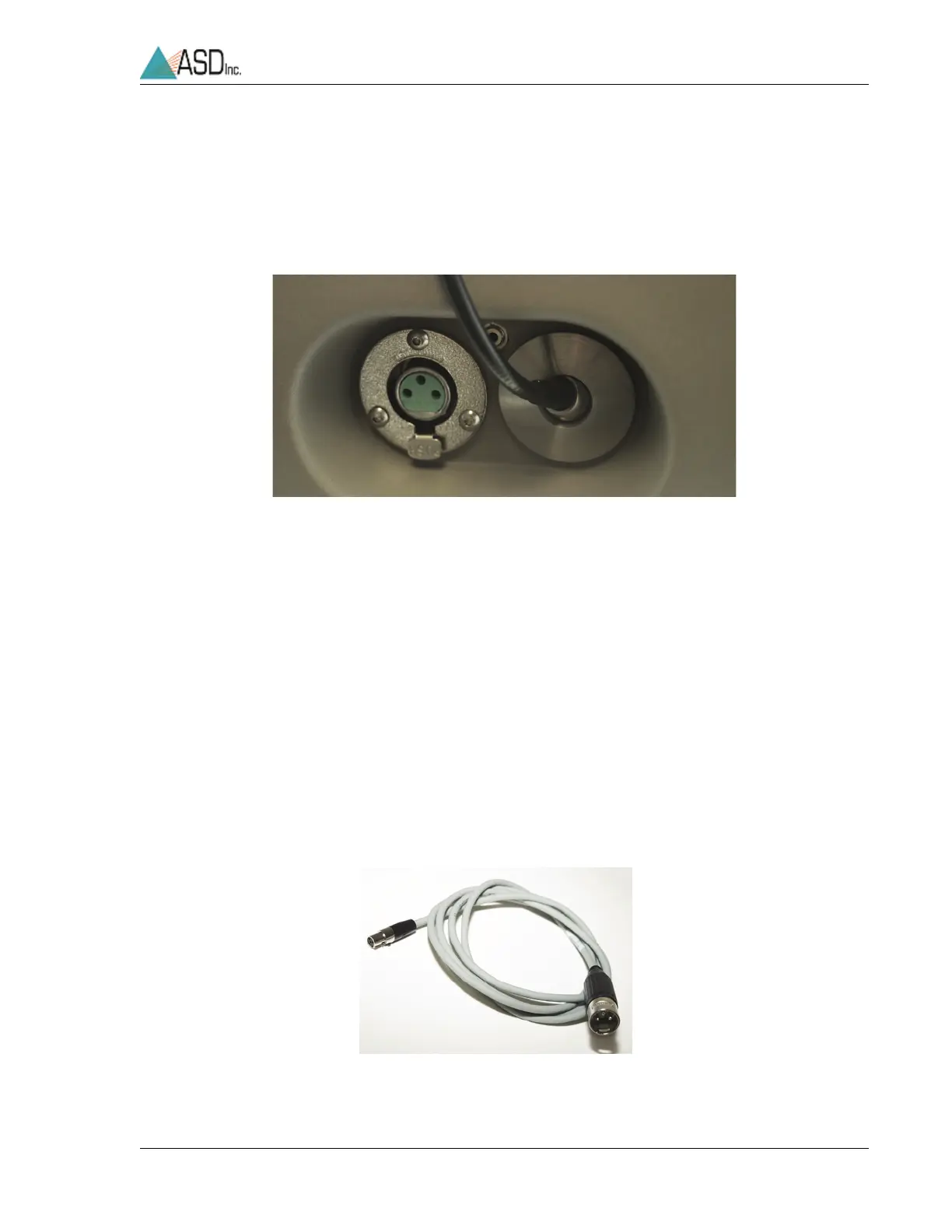

Figure 2-12 Enhanced view of the front panel with the Fiberoptic cable connector, port
for remote trigger, and accessory power port for probe.
Figure 2-13 Cable used from the FieldSpec spectroradiometer accessory power port to
the Contact Probe, MugLite, or other authorized ASD accessory.
