ASD Document 600540 Rev. J 18 FieldSpec® 3 User Manual
www.asdi.com Chapter 2 Setup
2.5 Pistol Grip
The pistol grip is standard with the FieldSpec spectroradiometer, as shown in
Figure 2-14. The pistol grip has a 25 degree field-of-view, full conical angle.

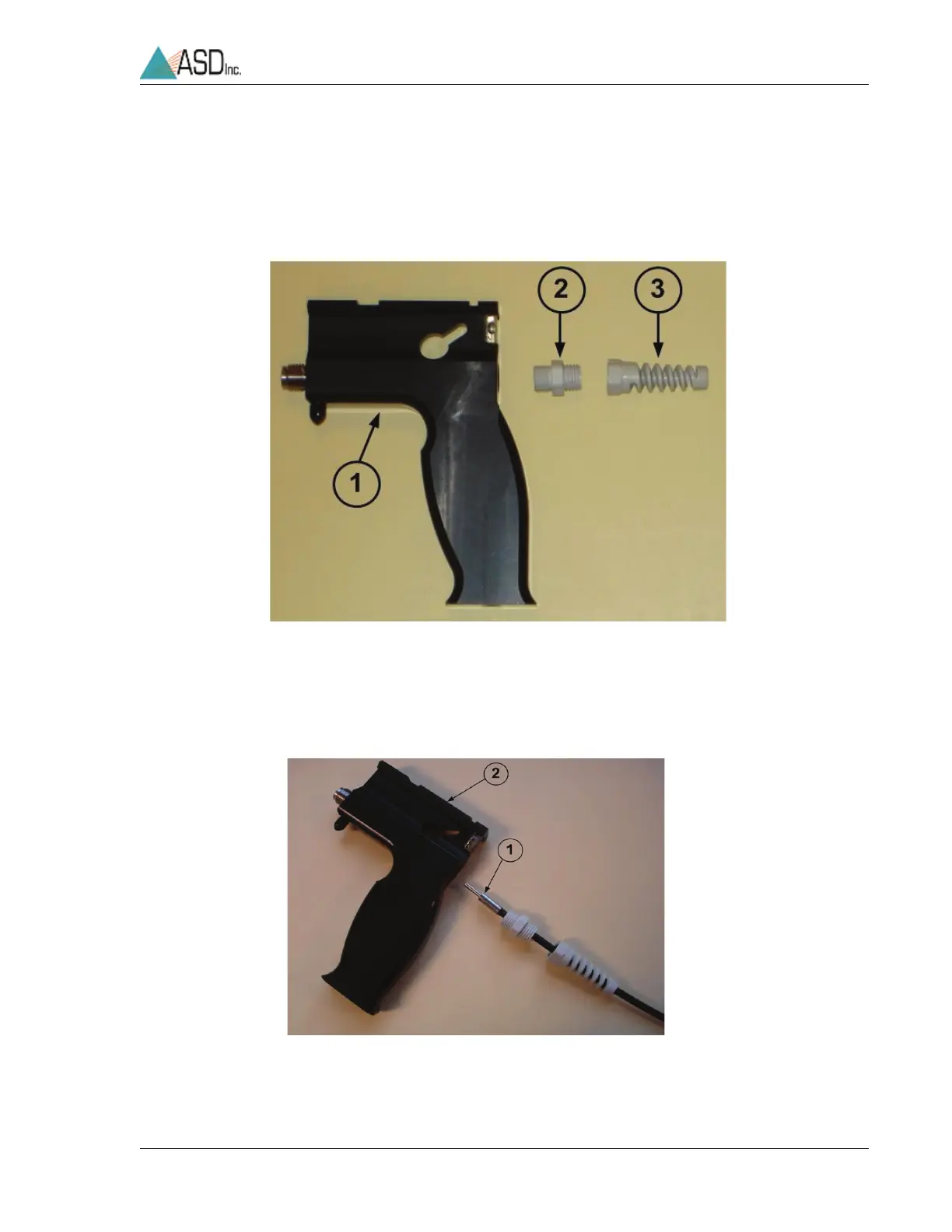

Figure 2-14 Pistol grip components
Components of the pistol grip (from left) (1) modified ASD pistol grip, (2)
grey nut and (3) strain relief.
Figure 2-15 Using the fiberoptic cable with the pistol grip.
