The fiberoptic cable (1) feeds into the rear of the pistol grip (2). The strain
relief and nut are installed at ASD.
Note: If the grey nut and strain relief get separated, the smooth side of the grey nut is
inserted into the pistol grip and the rough edge of the grey nut is inserted into
the strain relief.
Ensure that the fiberoptic tip is fully seated into the nose of the pistol grip.
You will feel the fiberoptic “click” into the housing.

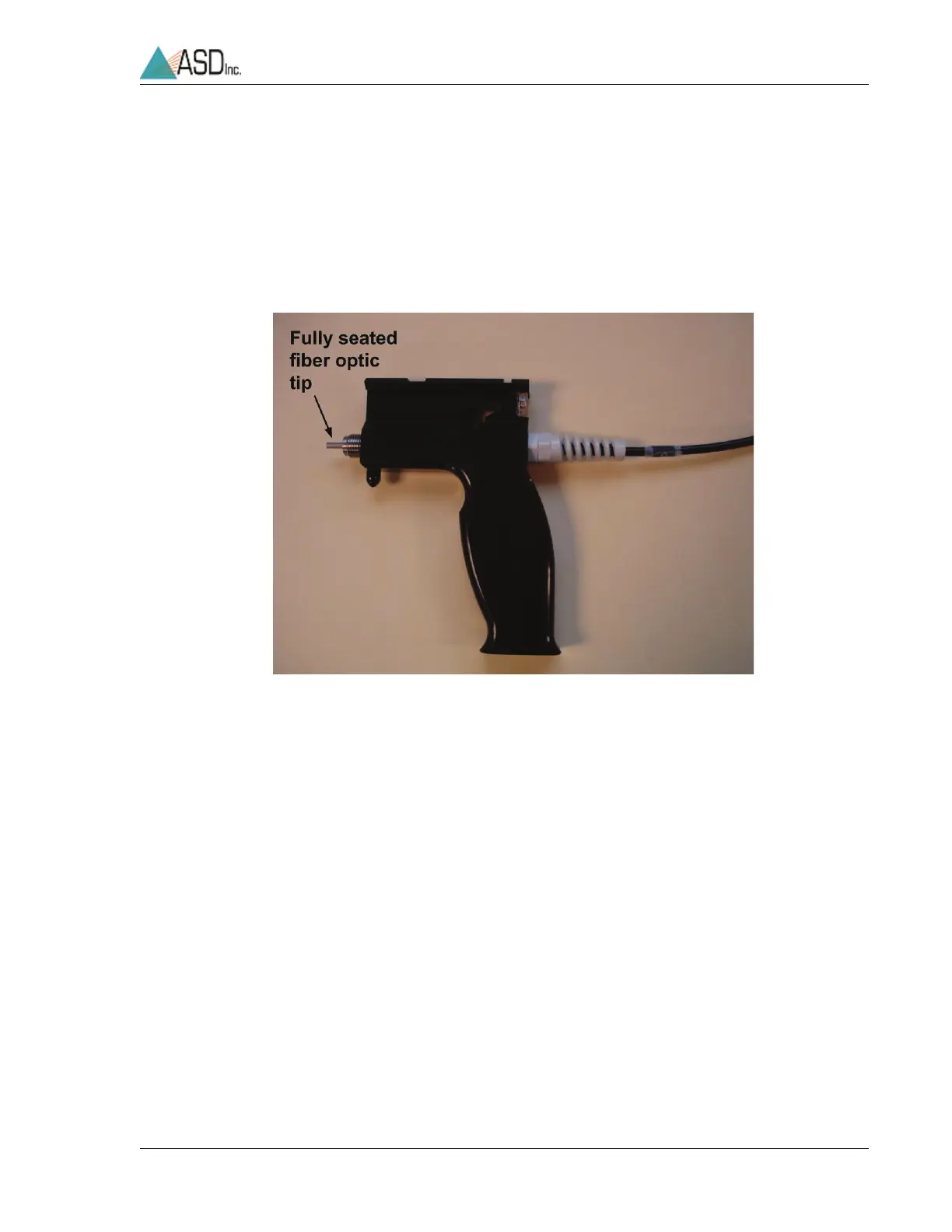

Figure 2-16 Fully assembled pistol grip
