ASD Document 600540 Rev. J 47 FieldSpec® 3 User Manual
www.asdi.com Chapter 6 Transporting and Carrying the FieldSpec® 3
Step 3 Remove the instrument controller from its compartment on the outside of the
Ergonomic Pro-Pack.
Step 4 Undo the five (5) plastic connectors which hold the spectroradiometer in the
Ergonomic Pro-Pack.
Step 5 Determine which hand will be using the Fiberoptic accessory. Figure 6-8
shows the Fiberoptic cable on the left-hand side, because the user wanted his
right-hand free to operate the instrument controller.
Step 6 Orient the spectroradiometer in the Ergonomic Pro-Pack such that the
Fiberoptic cable is on that side.
Note: The FieldSpec spectroradiometer has to have its plastic end-caps
aligned with the top and bottom of the Ergonomic Pro-Pack. Other
than this, the orientation of the spectroradiometer in the pack doesn’t
matter (e.g., cable side on left or right; mesh side close to the shoulder
straps or away)
Step 7 Use the five (5) straps to secure the spectroradiometer in the pack.
Step 8 If you are using the Fiberoptic spool, determine where you want to attach it.
Figure 6-9 and Figure 6-13 show the Fiberoptic spool on the outside of the
Ergonomic Pro-Pack, where it attaches with velcro.
Figure 6-10 and Figure 6-14 show where the Fiberoptic spool attaches to one
of the battery pouches on the hip belt with metal snaps.
The Fiberoptic spool is optional and may not even be needed for short cables.
The battery pouches on the hip belt have velcro loops for holding the cable, as
is shown in
Figure 6-11.

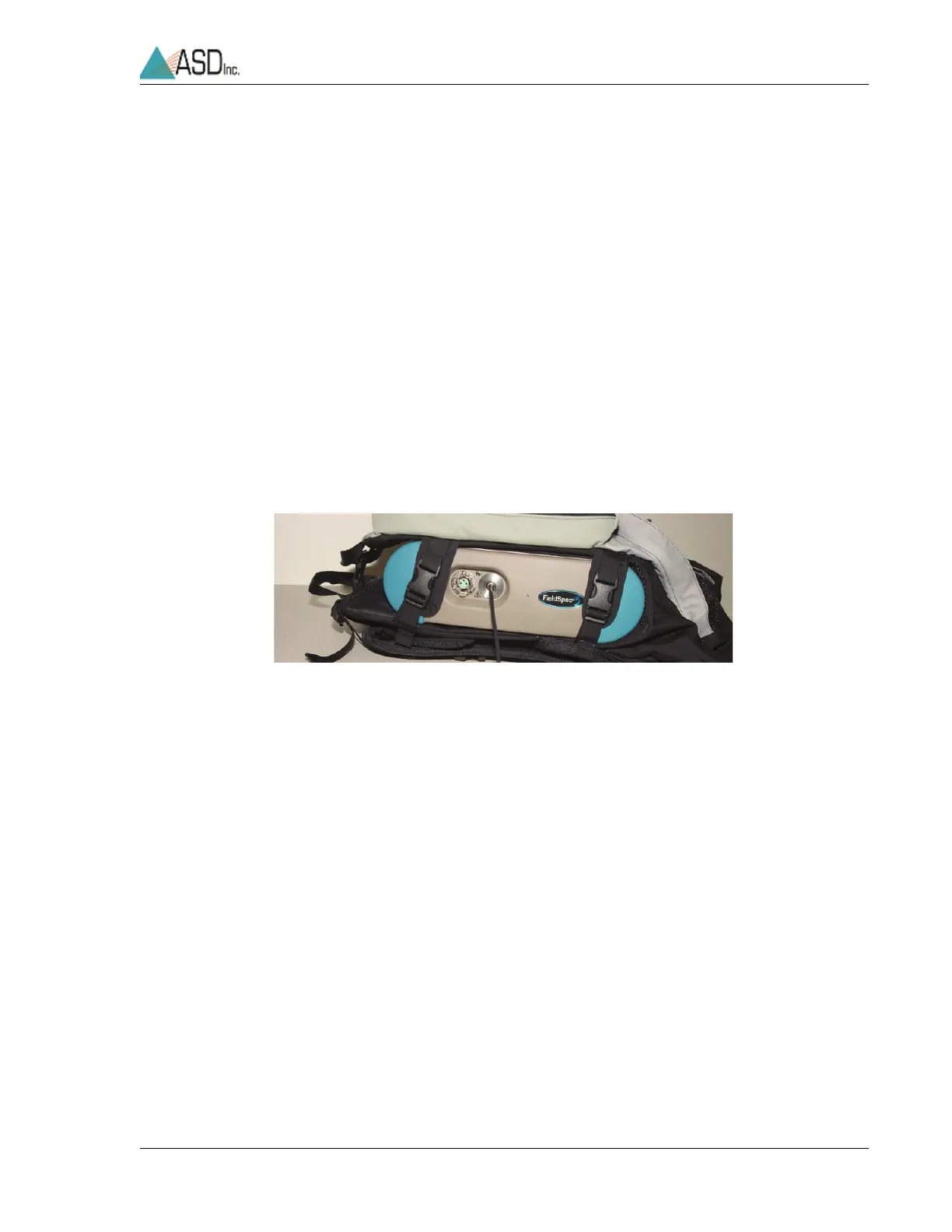

Figure 6-8 Fiberoptic cable routes to either side.
