ASD Document 600540 Rev. J 49 FieldSpec® 3 User Manual
www.asdi.com Chapter 6 Transporting and Carrying the FieldSpec® 3
Step 9 Place the battery into the pouch on the belt on the opposite side of the
Ergonomic Pro-Pack from where the Fiberoptic cable is. Refer to
Figure 6-12.
Step 10 Feed the battery cable up from the battery pouch under the cross strap to the
power input of the FieldSpec spectroradiometer, as shown in
Figure 6-12.

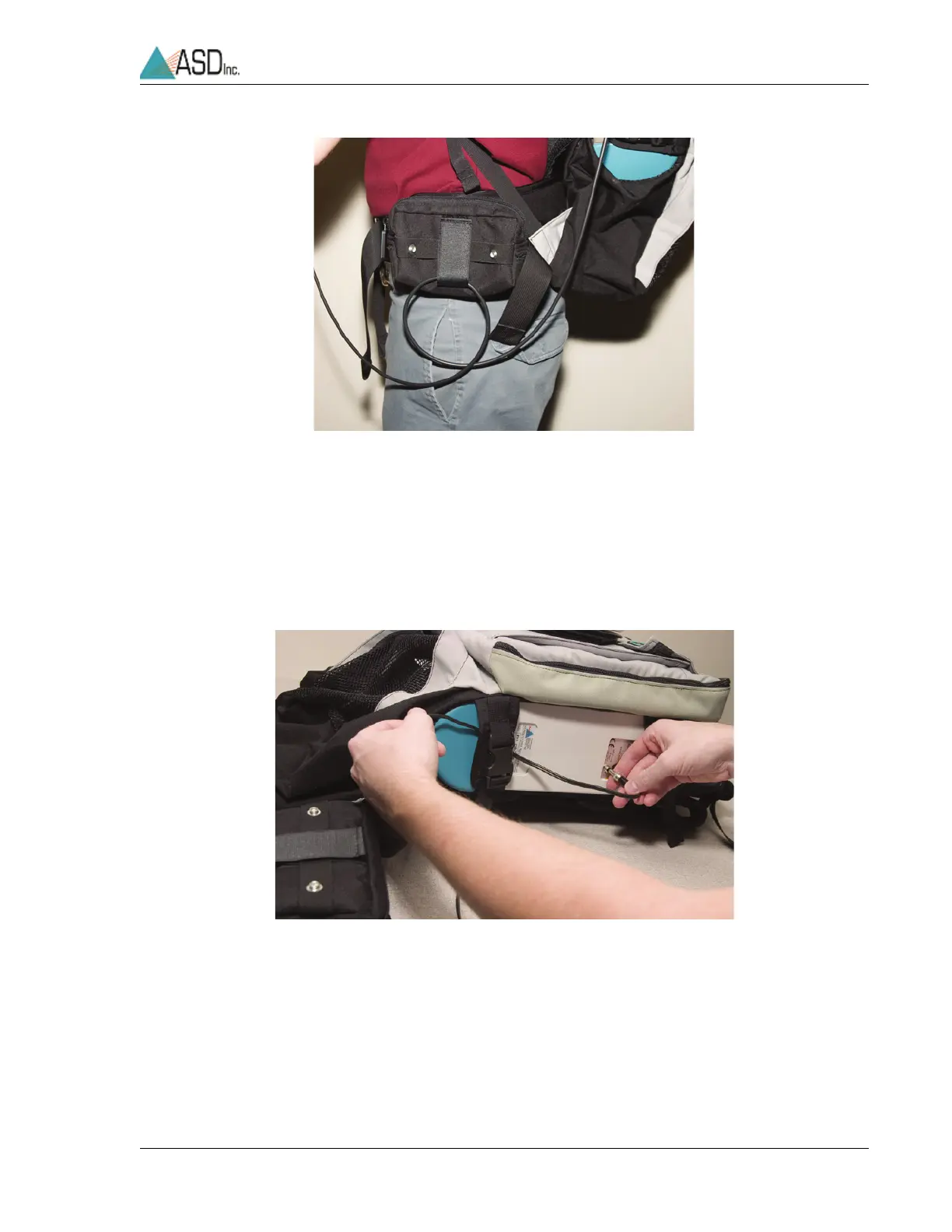

Figure 6-11 Loops for the Fiberoptic cable on the battery pouch of the
hip belt.
Figure 6-12 Routing the battery cable to the FieldSpec
spectroradiometer.
