ASEA DBT12 - Figure 8: Shore; Ship Power Terminals; Figure 9: Power Cables Entering from the Bottom

DBT12/15/24 Operations Manual....23

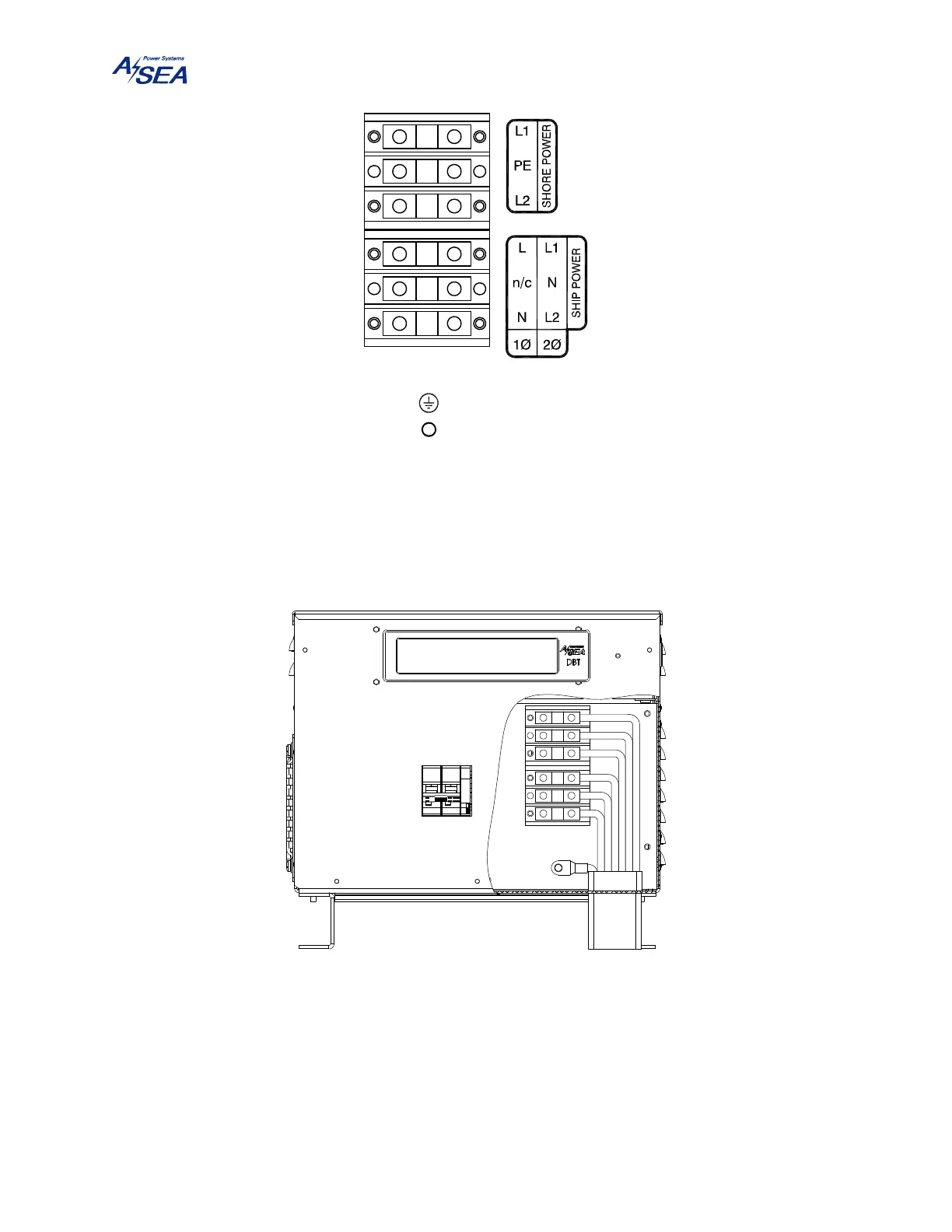

Figure 8: Shore / Ship Power Terminals
Power cable entry can be from the right side or from the bottom of the unit. Depending on the
selection made the corresponding knock out pieces must be punched out (two at the right side or
one at the bottom).
Figure 9: Power Cables Entering from the Bottom
