6. OPERATION
6.1. POWER TURN-ON PROCEDURE
Turn the circuit breaker to the ON position.

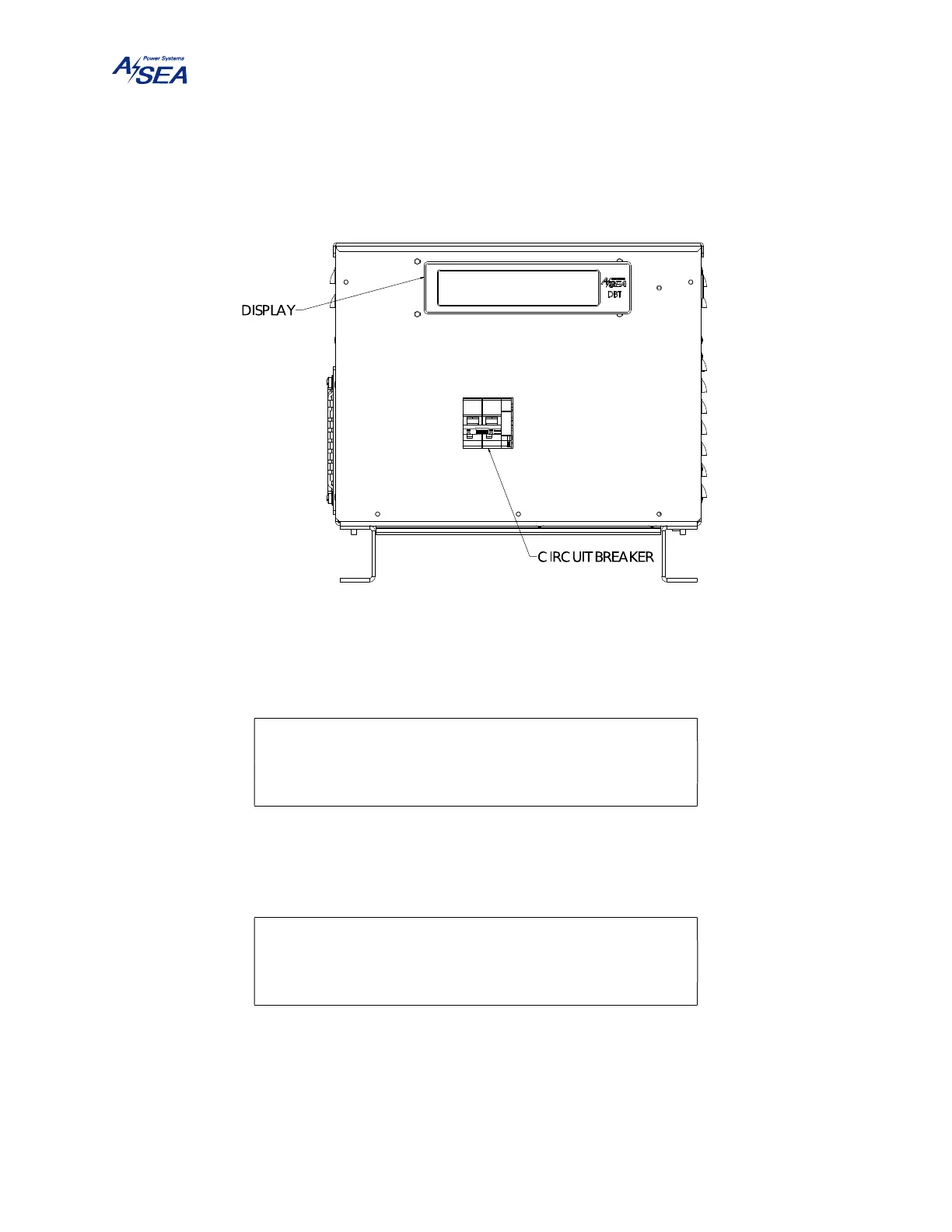

Figure 11: Controls and Indicators
After a few seconds the fan will start spinning and the display will illuminate and show the product
group and the software version:
DOCK BOOST TRANSFORMER-II
Version Vx.xx
(c)COPYRIGHT 2019 ASEA POWER SYSTEMS
The unit will perform a self-test which requires approximately 2 seconds to complete, select the
proper gain for the shore voltage present, and close its internal shore and ship power contactors.
SELF TEST . . . . . . . . . . . . .
SELF TEST COMPLETED.
The display will sequence to the first summary screen indicating the unit model and the following
shore and ship information: frequency, voltage, current, and apparent power. The screen also
includes the unit status (OK, WARNING, or FAILURE) and voltage gain (1:1, BOOST1,
To Next Page
